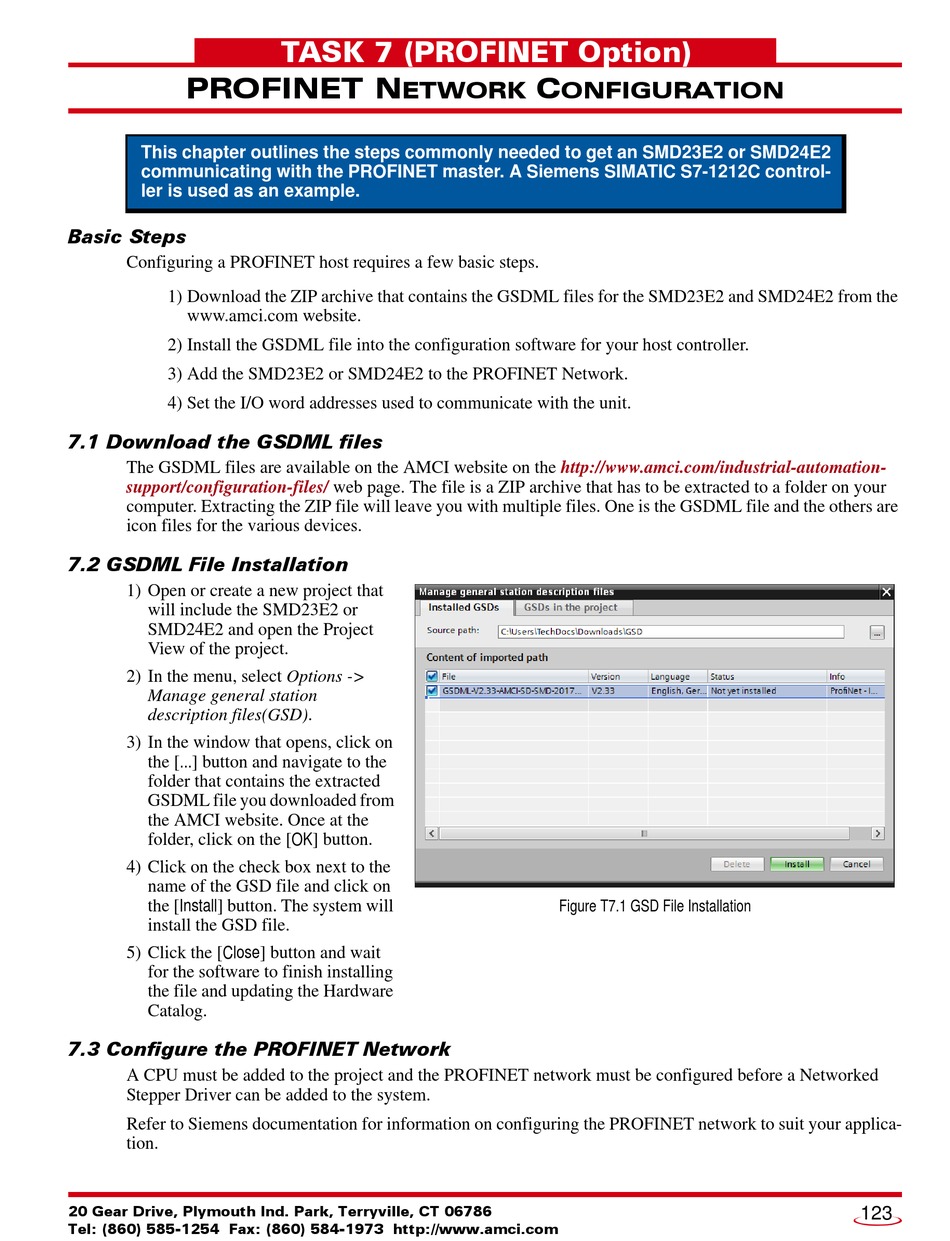

PROFINET N
This chapter outlines the steps commonly needed to get an SMD23E2 or SMD24E2
communicating with the PROFINET master. A Siemens SIMATIC S7-1212C control-
ler is used as an example.

Basic Steps

Configuring a PROFINET host requires a few basic steps.
1) Download the ZIP archive that contains the GSDML files for the SMD23E2 and SMD24E2 from the
www.amci.com website.
2) Install the GSDML file into the configuration software for your host controller.
3) Add the SMD23E2 or SMD24E2 to the PROFINET Network.
4) Set the I/O word addresses used to communicate with the unit.

7.1 Download the GSDML files

The GSDML files are available on the AMCI website on the
support/configuration-files/
computer. Extracting the ZIP file will leave you with multiple files. One is the GSDML file and the others are
icon files for the various devices.

7.2 GSDML File Installation

1) Open or create a new project that
will include the SMD23E2 or
SMD24E2 and open the Project
View of the project.
2) In the menu, select Options ->
Manage general station
description files(GSD).
3) In the window that opens, click on
the [...] button and navigate to the
folder that contains the extracted
GSDML file you downloaded from
the AMCI website. Once at the
folder, click on the [OK] button.
4) Click on the check box next to the
name of the GSD file and click on
the [Install] button. The system will
install the GSD file.
5) Click the [Close] button and wait
for the software to finish installing
the file and updating the Hardware
Catalog.
7.3 Configure the PROFINET Network
A CPU must be added to the project and the PROFINET network must be configured before a Networked
Stepper Driver can be added to the system.
Refer to Siemens documentation for information on configuring the PROFINET network to suit your applica-
tion.
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
TASK 7 (PROFINET Option)
ETWORK
web page. The file is a ZIP archive that has to be extracted to a folder on your
C
ONFIGURATION
http://www.amci.com/industrial-automation-
Figure T7.1 GSD File Installation
