SMD23E2 and SMD24E2 User's Manual

Indexer Functionality

The table below lists the functionality offered by the indexer built into the AMCI SMD23E2 and SMD24E2
units.
Feature
Multiple Network
Protocols
EtherNet/IP-DLR
PROFINET-MRP
Programmable
Inputs
Programmable
Parameters
Homing
Jog Move
Synchrostep Move
Relative Move
Absolute Move
Registration Move
Blend Move
Dwell Move
Indexer Move
Hold Move
Resume Move
Immediate Stop
Stall Detection
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
SMD23E2 & SMD24E2 S
The SMD23E2 and SMD24E2 units can be configured to communicate with 
EtherNet/IP, PROFINET, or Modbus TCP protocols. This allows easy setup and 
communication with a wide range of host controllers.
SMD23E2 and SMD24E2 units have Device Level Ring functionality, which
adds redundancy to the EtherNet/IP protocol.
SMD23E2 and SMD24E2 units have Media Redundancy Protocol support,
which adds redundancy to the PROFINET protocol.
Each of the inputs can be programmed as a Home Limit, Over Travel Limit, Cap-
ture Input, Manual Jog Stop, Start Indexer Move, E-Stop, or a General Purpose
Input.
Starting Speed, Running Speed, Acceleration, Deceleration, and Accel/Decel
Types are fully programmable.
Allows you to set the machine to a known position. An SMD23E2 or SMD24E2
homes to a discrete input and can use a bit in the Network Data as a home proxim-
ity input.
Allows you to drive the motor in either direction as long as the command is active.
Allows you to treat the SMD23/4E2 as a motion axis by constantly updating
position and velocity data to the unit.
Allows you to drive the motor a specific number of steps in either direction from
the current location.
Allows you to drive the motor from one known location to another known
location.
Allows you to jog the motor in either direction based on a command from your
host controller. When a controlled stop is issued, the move will output a program-
mable number of steps before coming to a stop.
Allows you to perform a sequence of relative moves without stopping between
them.
Allows you to perform a sequence of relative moves with a stop between each
move that has a programmable length of time. Used to create highly accurate
move profiles that avoid network latency issues.
Allows you to program a move that is held in memory. The move is run when one
of the programmable inputs makes a transition.
Allows you to suspend a move, and optionally restart it, without losing your posi-
tion value.
Allows you to restart a previously held move operation.
Allows you to immediately stop all motion if an error condition is detected by
your host controller.
When an SMD23E2 or SMD24E2 is purchased with an encoder option, the
encoder can be used to verify motion when a move command is issued.

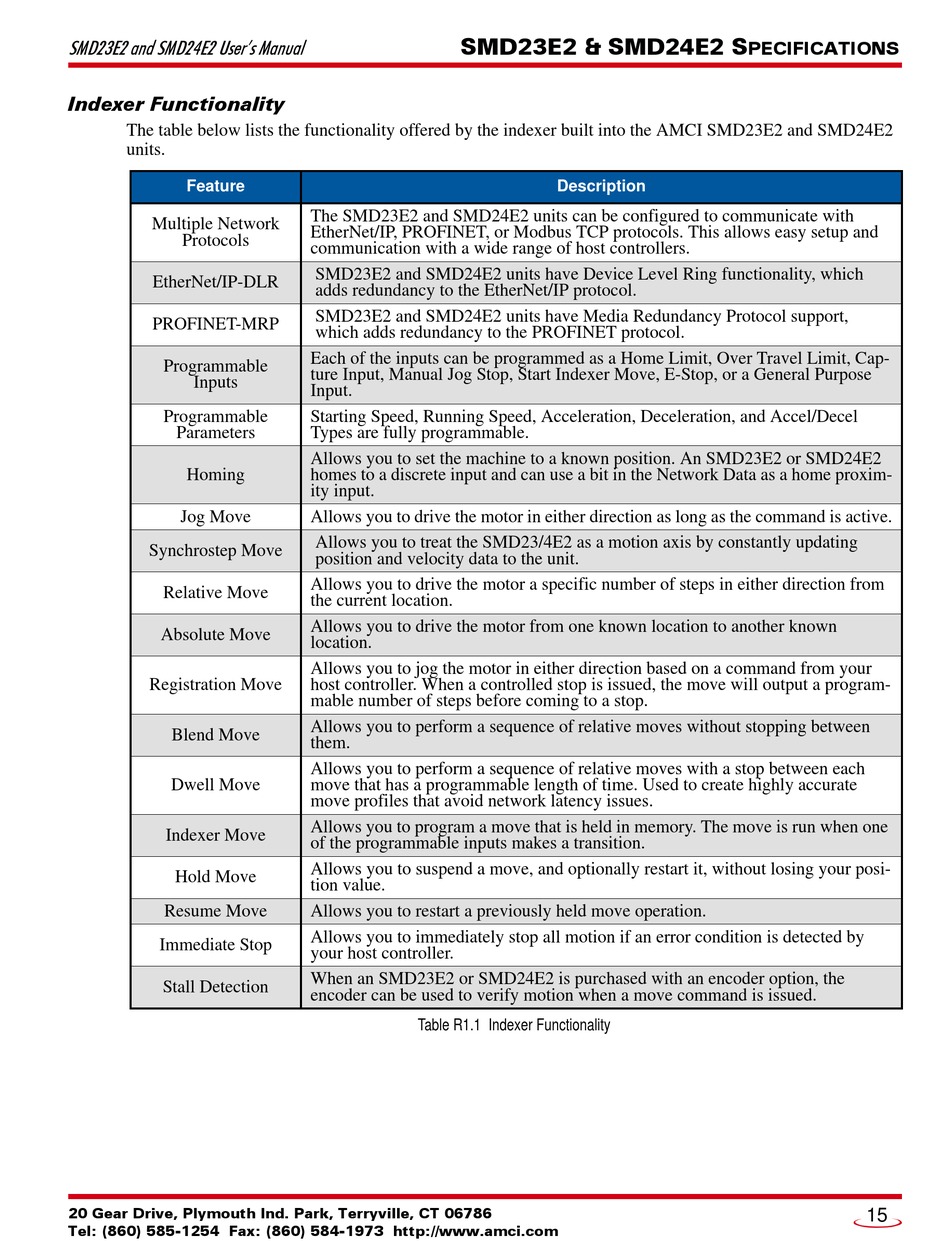

Table R1.1 Indexer Functionality
Description
PECIFICATIONS
