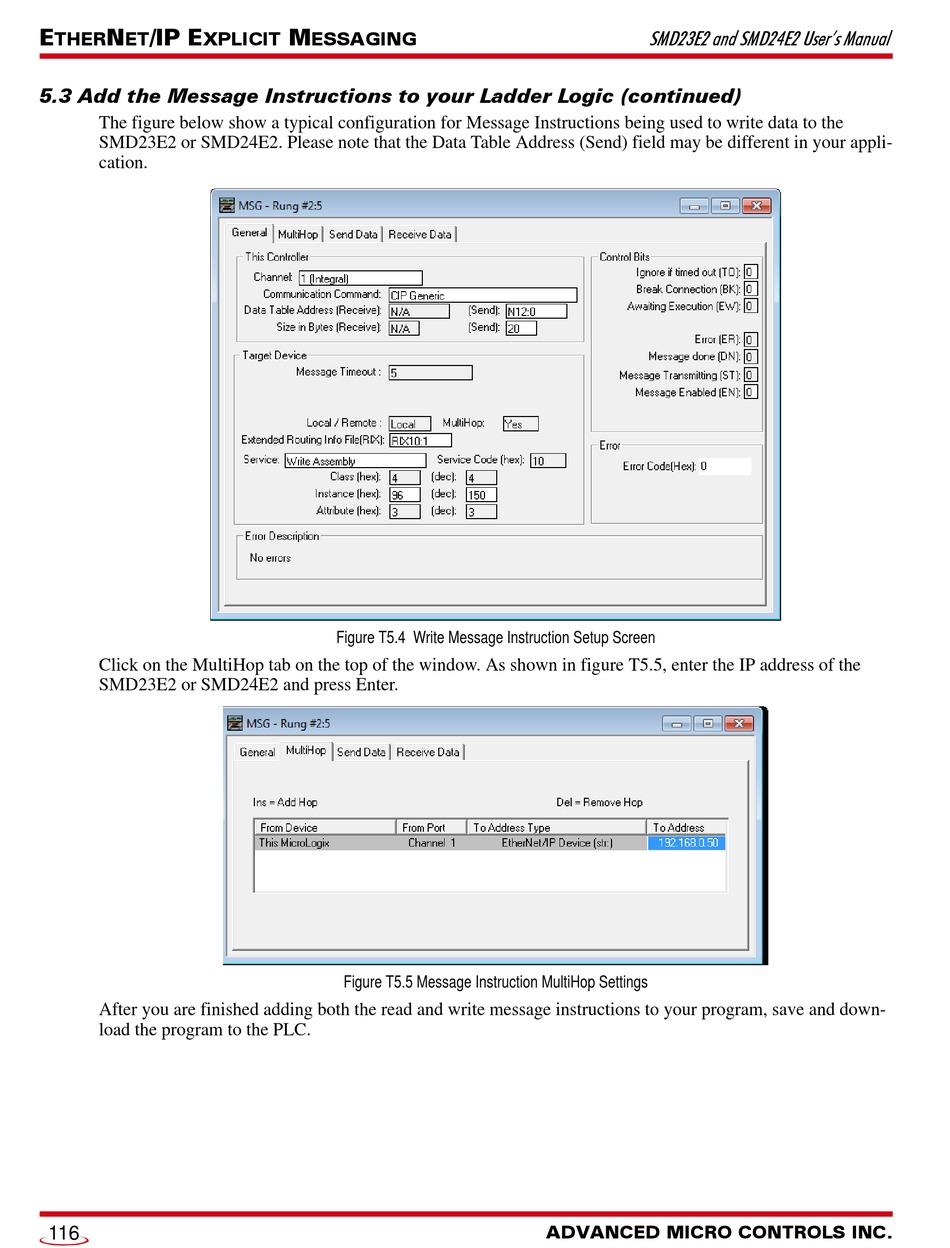

5.3 Add the Message Instructions to your Ladder Logic (continued)
The figure below show a typical configuration for Message Instructions being used to write data to the
SMD23E2 or SMD24E2. Please note that the Data Table Address (Send) field may be different in your appli-
cation.
Click on the MultiHop tab on the top of the window. As shown in figure T5.5, enter the IP address of the 
SMD23E2 or SMD24E2 and press Enter.
After you are finished adding both the read and write message instructions to your program, save and down-
load the program to the PLC.
116
M
ESSAGING
Figure T5.4 Write Message Instruction Setup Screen
Figure T5.5 Message Instruction MultiHop Settings
