CellComSL™ Series Universal Alarm Communicator

Description

The CellComSL™ Series Alarm Communicator provides a fully supervised alarm communication path for any
burglary or residential fire control panel. The CellComSL Series can be connected to a control panel's dialer
output and used to capture Contact ID messages based on SIA DC-05-1999.09-DCS. The CellComSLC has a
built-in CDMA cellular module to send messages to DMP Model SCS-1R or SCS-VR Central Station Receivers. The
communicator also provides four input zones and two open-collector outputs for connection to burglary or
residential fire control panel outputs and zones. The CellComSL Series Communicator Zone 4 allows a connection
to the bell output of an existing burglary control panel. The communicator operates in a variety of applications:
CID Dialer Connection, Zones 1-4 Input Connections, or Zone 4 Bell Connection (See Applications on page 5). The
CellComSLCZ™ Alarm Communicator includes an onboard Z-Wave controller for home automation applications.

What is Included

The CellComSL Series Universal Alarm Communicator includes the following:
• PCB with Enclosure
• 3.7 Vdc 800 mAh Lithium Ion System Battery
• Hardware Pack
1.1

Terminals (J9)

Power Connection Terminals

Power is provided from the Nominal 12 Vdc auxiliary output of the burglary control panel.
OBSERVE POLARITY (See Figure 1 and Backlit Logo)
Using 18 - 22 AWG wire, connect the communicator terminal +12 to the positive terminal on the control panel
auxiliary output.
Connect the communicator terminal G (Ground) to the negative terminal on the control panel auxiliary output.

Control Panel Standby Power

During a power outage, the CellComSL draws power from the control panel's backup battery. The CellComSL must
be included in the standby battery calculations for the control panel.

Zones 1-4

Terminals Z1 to Z3, G (Ground), Z4+ and Z4- provide four zones to connect to individual relay outputs on
the control panel. Zone 4 (Z4+ and Z4-) can be connected to the control panel bell output. See Zone 4 Bell
Connection.
Open-Collector Outputs
The two outputs, terminals O1 and O2 (see Figure 1), can be programmed to indicate the activity of the zones
CellComSL Series Universal Communicator Installation and Programming Guide

System Components

system components
J19
J26
J8
B R
S3

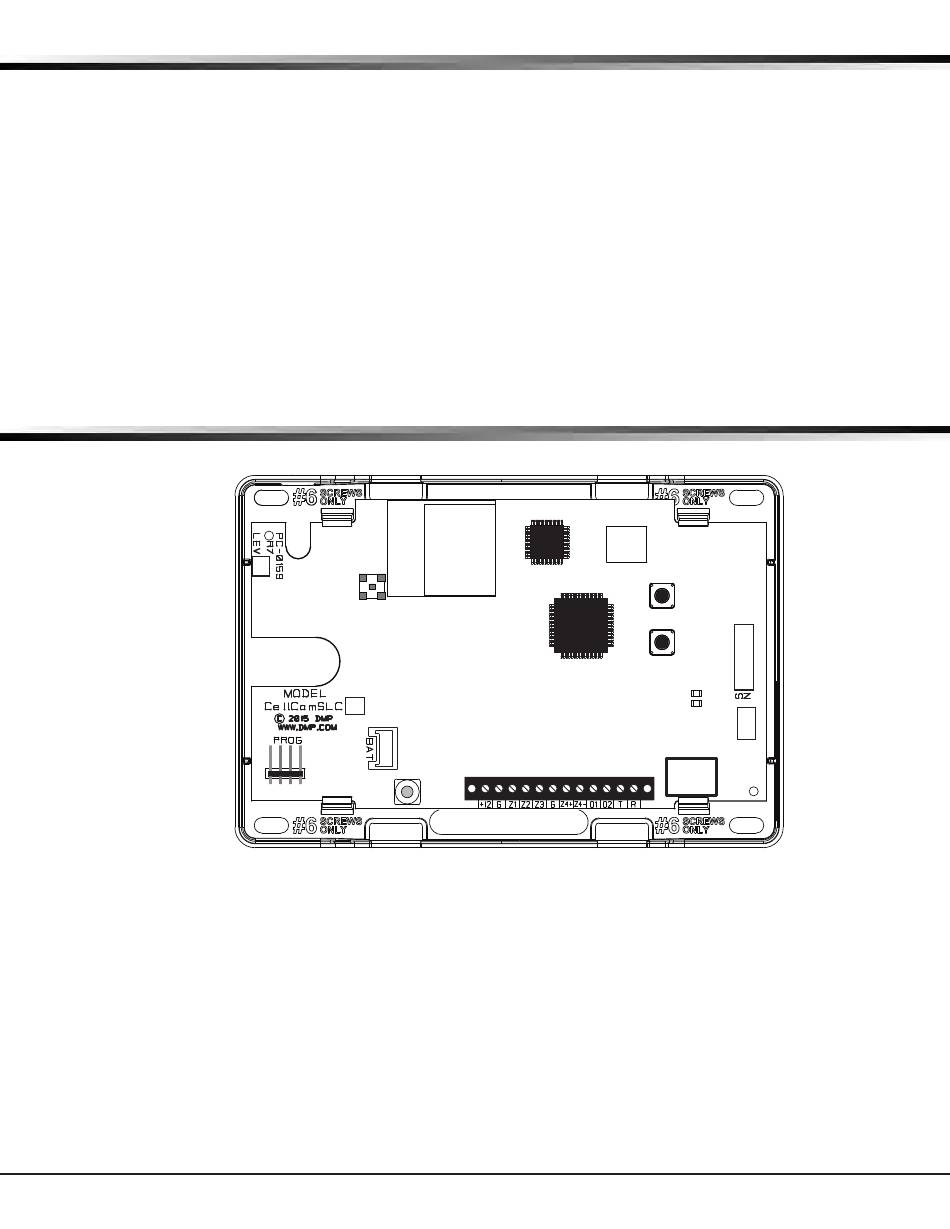

Figure 1: CellComSL Series Communicator
J9
IntroductIon
S1
RESET
S2
LOAD
