system components
or conditions occurring on the system. Open-Collector outputs do not provide a voltage but instead switch-to-
ground the voltage from another source. Maximum voltage is 30Vdc @ 50 mA. The outputs can respond to any of
the conditions listed below:
1. Activation by zone condition: Steady, Pulse, Momentary, or Follow
2. Communication
3. Armed area annunciation
4. Remote Arming Output

Dialer Connection

Directly connect the telco phone line (tip and ring) from the control panel to the CellComSL Series Universal
Communicator terminal R (Ring) and one into T (Tip) (See CID Dialer Connection).
1.2

System Battery Connection (BAT)

Installation Safety
Ground Yourself Before Handling the Communicator! To discharge static, touch any grounded metal, such
as the control panel enclosure, before touching the communicator.

System Battery

The system battery is used for internal and cellular operations and is not a standby battery.
B
If the system battery is low, or not plugged into the BAT battery connector, a low battery condition is indicated
by the communicator. See Backlit Logo Section in the Appendix.
Plug in the internal lithium system battery in the BAT connector. Use 9000BAT.
DMP recommends replacing the battery every 3 years under normal use.
Use the following steps to replace the system battery.
1. Unplug the battery BAT connector from the communicator.
2. Loosen the top PCB snaps.
3. Lean the communicator PCB forward and lift out from the bottom PCB snaps.
4 Remove and properly dispose of the used battery.
Caution: Risk of fire, explosion, and burns. Do not disassemble, heat above 212°F (100°C), or incinerate.
Properly dispose of used batteries.
5. Place the new battery into the housing base with the battery wires directed toward the bottom left corner.
See Figure 2.
6. Set the PCB into the bottom snaps and press into the top snaps to secure in place.
7. Plug the battery into the BAT connector.
Note: If removing the communicator from service, disconnect the system battery from the BAT connector.
1.3

Programming Connection

A 4-pin header (PROG) is provided to connect a keypad when using a DMP
Model 330 Programming Cable. This provides a quick and easy connection
for programming the CellComSL Series Universal Alarm Communicator. After
programming is complete, remove the keypad.
Digital Monitoring Products
2
J19
J26
J8
R
J9
S3

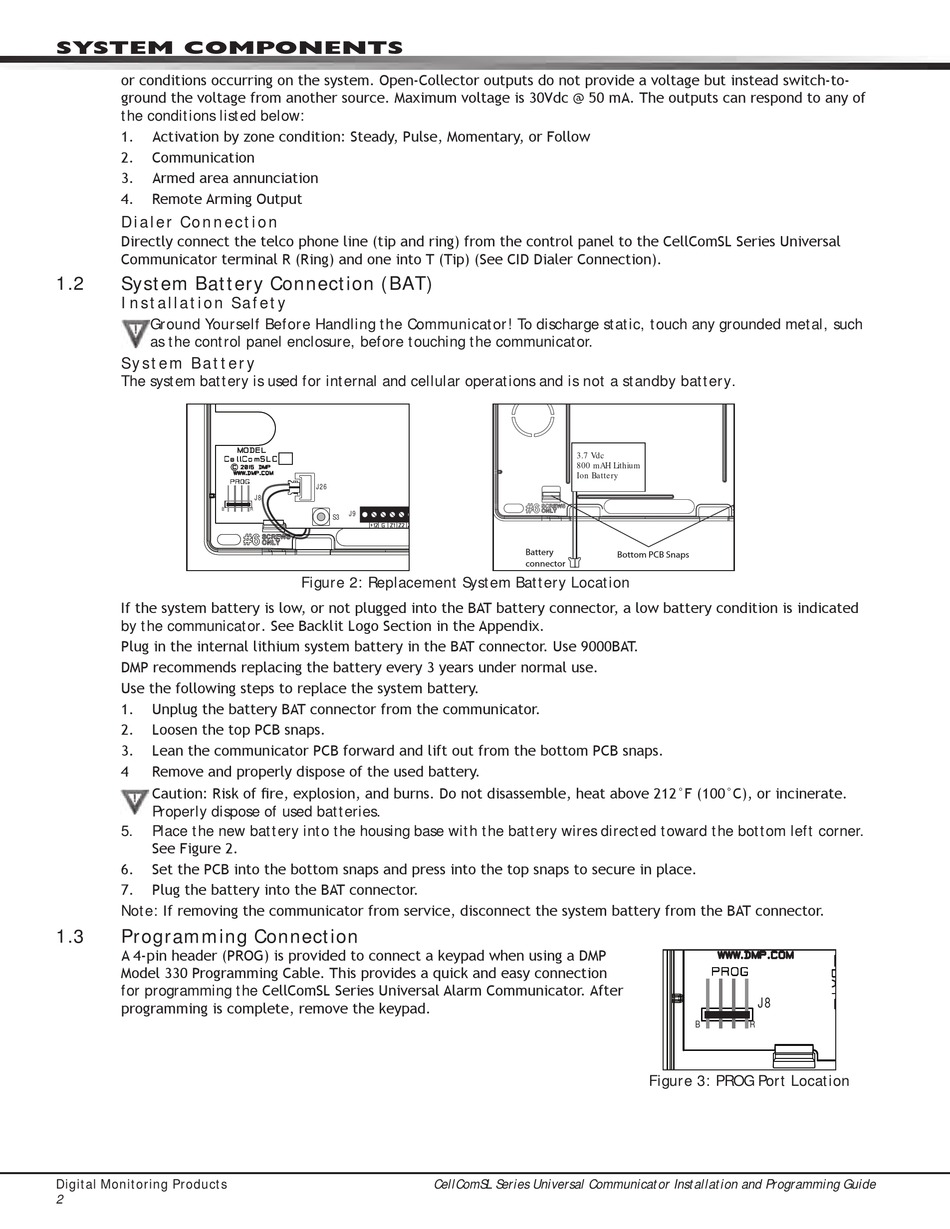

Figure 2: Replacement System Battery Location
S1
RESET
S2
LOAD
3.7 Vdc
800 mAH Lithium
Ion Battery
Battery
connector
CellComSL Series Universal Communicator Installation and Programming Guide
Top PCB Snaps
Bottom PCB Snaps
J8
B R
Figure 3: PROG Port Location
J19
J26
J9
S3
