InstallatIon
2.1

Selecting a Location

Install the communicator away from metal objects. DO NOT MOUNT THE CELLCOMSL SERIES COMMUNICATOR
INSIDE OR ON A CONTROL PANEL METAL ENCLOSURE (See Figure 6).
Mounting the communicator on or near metal surfaces impairs cellular and Z-Wave wireless performance. The
enclosure for the communicator should be mounted using the provided #6 screws in the four mounting holes
(See Figure 7). Mount the enclosure in a secure, dry place to protect the communicator from damage due to
tampering or the elements. It is not necessary to remove the PCB when installing the enclosure.
When installing component wires, care must be taken to route all wires in such a manner that they will not
interfere with the Tamper switch (See Figure 8).
J19
J26
J8
B R
Digital Monitoring Products
4

Mounting the CellComSL Series Communicator

Control Panel
Metal Enclosure

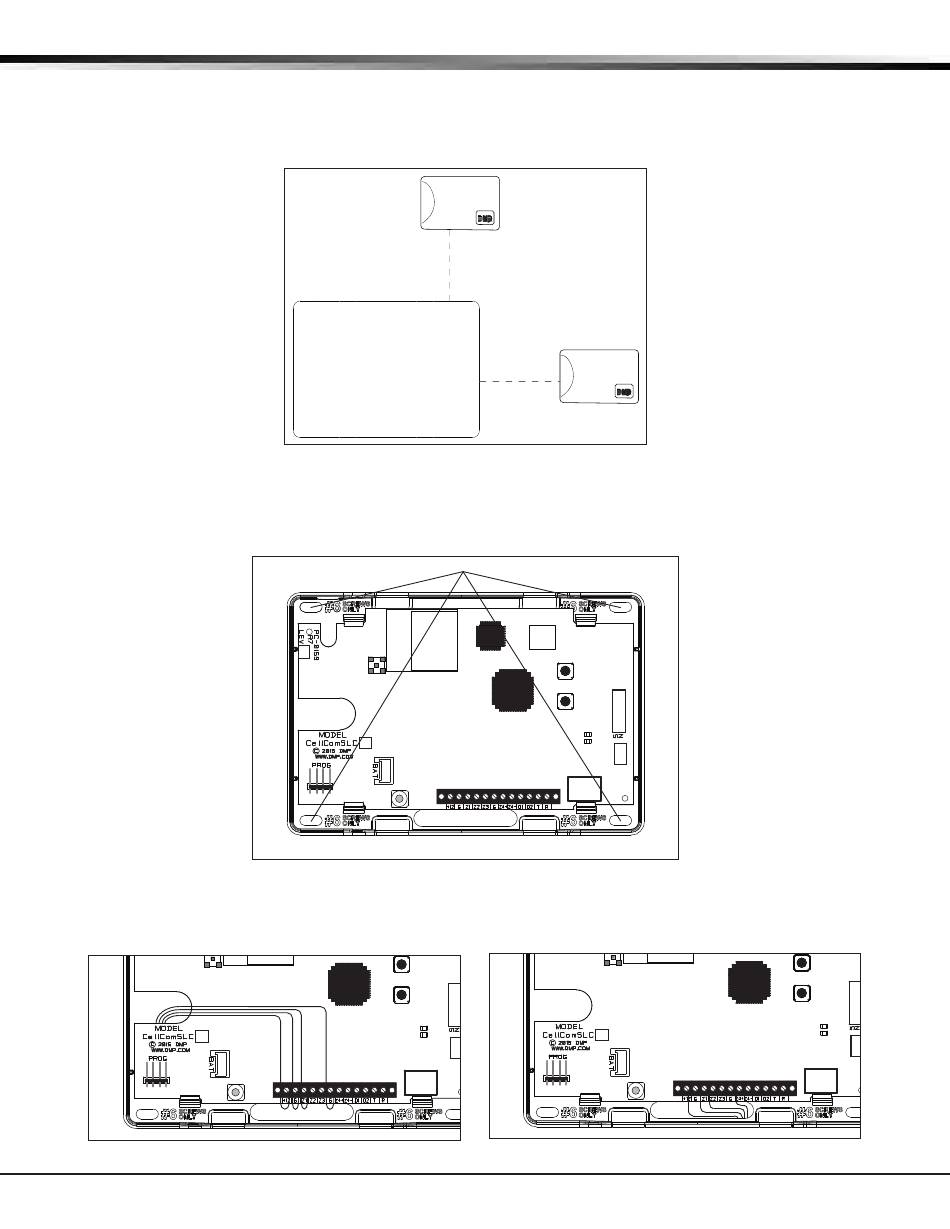

Figure 6: Suggested Mounting Locations
Mounting Screw Locations
J19
J26
J8
B R
S3
Figure 7: Mounting Screw Locations
S1
RESET
S2
LOAD
J9
S3
Figure 8: Wire Routing Options
S1
RESET
S2
LOAD
J9
J8
B R
CellComSL Series Universal Communicator Installation and Programming Guide
