Tamper; Reset Button; Load Button; 399 Programming Cable - DMP Electronics CellComSL Series Installation And Programming Manual

1.4

Tamper

The tamper button is pressed when the cover of the CellComSL Series Communicator
is secured onto the enclosure. When the cover is removed, the communicator sends
a Tamper Trouble message to the Central Station.
1.5

Reset Button

The Reset button is located on the right side of the circuit board and is used to
reset the communicator microprocessor. After resetting the communicator, begin
programming within 30 minutes. If you wait longer than 30 minutes, reset
the communicator again.
1.6

Load Button

The CellComSL Series Universal Alarm Communicator firmware can be updated via
the programming (PROG) header. To update the communicator with a new firmware
version, complete the following steps at the protected premise:

399 Programming Cable

1. C onnect a DMP 399 Cable from the Programming Header to the serial port of
your PC operating Remote Link and containing the communicator RU file.
2. S tart Remote Link and create or open the account that matches the
communicator to be updated.
3. S et the Connection Information Type to Direct with a baud rate of 38400 and
choose the appropriate COM port.
4. S elect Panel>Remote Update, then select the correct RU file for the communicator.
5. Press and hold the LOAD button, then press and release the RESET button.
6. Release the LOAD button and click <Update> in Remote Link.
7. A fter the firmware update is completed, remove the 399 cable and press the RESET button to resume normal
operation.

Model 400 USB Flash Module

1. Remove the yellow and green wires from keypad bus terminals 8 and 9.
2. Place a jumper across the Reset (J16) header.
3. Place a jumper across the Load (J18) header.
4. C onnect the USB flash drive to the Model 400 and connect the assembly to the panel's Programming (J8)
header. The LED on the Model 400 will flash and then display steady green.
5. R emove the jumper from the Reset (J16) header, press and release the load button on the Model 400 to
initiate the firmware update. The LED on model 400 will flash slowly. If the LED displays fast flashes it means
the firmware update was unsuccessful.
6. T he update will take approximately 4.5 minutes and when complete the LED on the Model 400 will display
steady green.
7. Replace the jumper across Reset (J16) then remove the USB flash drive and Model 400 assembly.
8. Remove the jumper from the Load (J18) header.
9. Remove the jumper from the Reset (J16) header.
10. Reconnect the yellow and green wires to terminals 8 and 9.
1.7

Backlit Logo

The backlit logo indicates the Power and Armed status of the communicator. Depending on the operation, the
LED displays in Red or Green as listed in the table. The LED indicates the status of the system battery and
primary power.
Color and Activity
Green Steady
Green Blinking
No Light
Red Steady
Red/Green Alternate
Red Blinking
CellComSL Series Universal Communicator Installation and Programming Guide
J19
J8
B R
Operation
Communicator Disarmed, Primary Power OK, Battery OK
Communicator Disarmed, Primary Power OK, Battery Fault
Communicator Disarmed, Primary Power Fault, Battery OK
Communicator Armed, Primary Power OK, Battery OK
Communicator Armed, Primary Power OK, Battery Fault
Communicator Armed, Primary Power Fault, Battery OK
system Components
J26
J9
S3
J8
B R

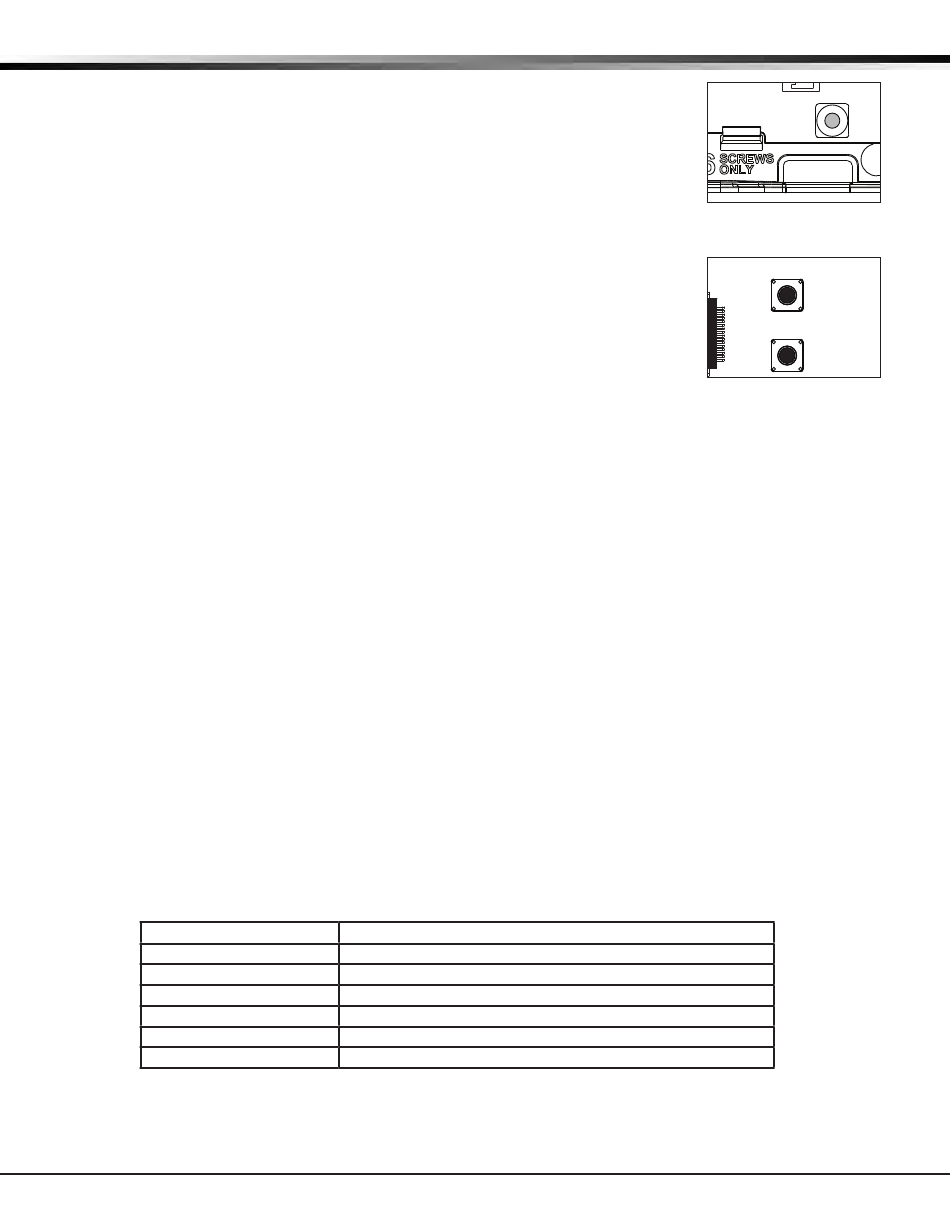

Figure 4: Tamper Location
S1
RESET
S2
LOAD
Figure 5: Reset and Load
Button Location
