Wiring Schematic - Danfoss VLT AQUA Drive FC 202 Operating Manual

Electrical Installation

4.4 Wiring Schematic

4 4
3-phase
power
input
Load share
+10 V DC
0 V DC - 10 V DC
0/4–20 mA
0 V DC - 10 V DC
0/4–20 mA

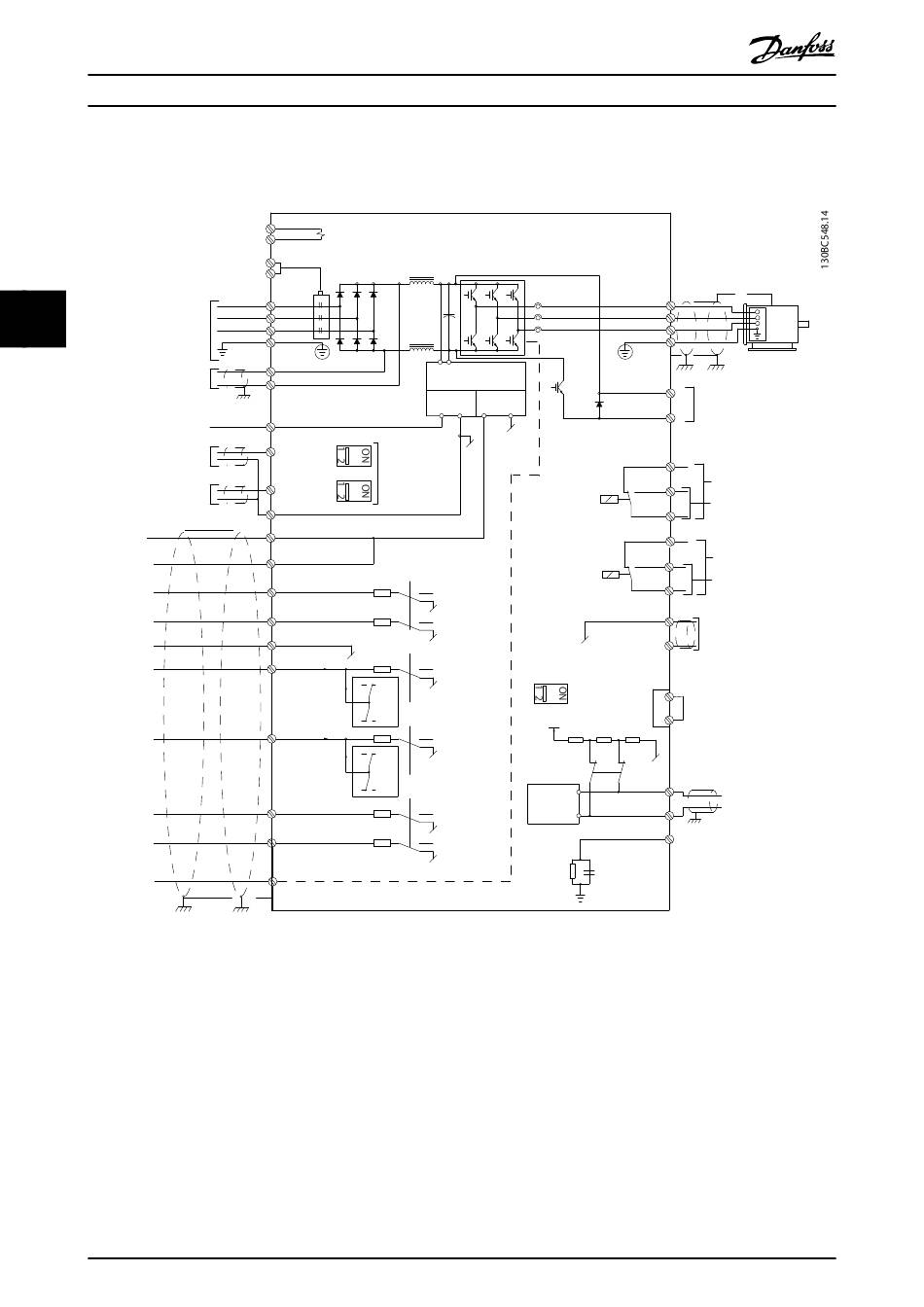

Illustration 4.2 Basic Wiring Schematic
A=Analog, D=Digital
1) Terminal 37 (optional) is used for Safe Torque Off. For Safe Torque Off installation instructions, refer to the VLT
Converters - Safe Torque Off Operating Guide.
2) Do not connect cable shield.
14
®
VLT AQUA Drive FC 202
TB5
230 V AC
R1 Anti-condensation heater (optional)
50/60 Hz
(optional)
TB6 Contactor
230 V AC
50/60 Hz
91 (L1)
92 (L2)
93 (L3)
95
PE
88 (-)
89 (+)
50 (+10 V OUT)
A53 U-I (S201)
53 (A IN)
ON=0–20 mA
A54 U-I (S202)
OFF=0–10 V
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
18 (D IN)
19 (D IN)
20 (COM D IN)
27 (D IN/OUT)
24 V
0 V
29
(D IN/OUT)
24 V
0 V
32 (D IN)
33 (D IN)
37 (D IN) - option 1)
