Introduction
1.4.3 Extended Options Cabinets
If a frequency converter is ordered with 1 of the following
options, it is supplied with an options cabinet that
increases the height.
•
Brake chopper.
•
Mains disconnect.
•
Contactor.
•
Mains disconnect with contactor.
•
Circuit breaker.
•
Oversized wiring cabinet.
•
Regeneration terminals.
•
Load share terminals.
Illustration 1.2 shows an example of a frequency converter
with an options cabinet. Table 1.2 lists the variants for the
frequency converters that include input options.
Options unit Extension cabinets
designations
D5h D1h enclosure with
short extension.
D6h D1h enclosure with
tall extension.
D7h D2h enclosure with
short extension.
D8h D2h enclosure with
tall extension.
Table 1.2 Overview of Extended Options
The D7h and D8h frequency converters (D2h plus options
cabinet) include a 200 mm (7.9 in) pedestal for floor
mounting.
There is a safety latch on the front cover of the options
cabinet. If the frequency converter is supplied with a mains
disconnect or circuit breaker, the safety latch prevents the
cabinet door from being opened while the frequency
converter is energized. Before opening the door of the
frequency converter, open the disconnect or circuit breaker
(to de-energize the frequency converter) and remove the
cover of the options cabinet.
For frequency converters purchased with a disconnect,
contactor or circuit breaker, the nameplate label includes a
MG21A402
Operating Guide
type code for a replacement that does not include the
option. If there is a problem with the frequency converter,
it is replaced independently of the options.
Possible options
•
Brake.
•
Disconnect.
•
Contactor.
•
Contactor with
disconnect.
•
Circuit breaker.
•
Brake.
•
Disconnect.
•
Contactor.
•
Contactor with
disconnect.
•
Circuit breaker.
Danfoss A/S © 11/2016 All rights reserved.
1754
[69.1]

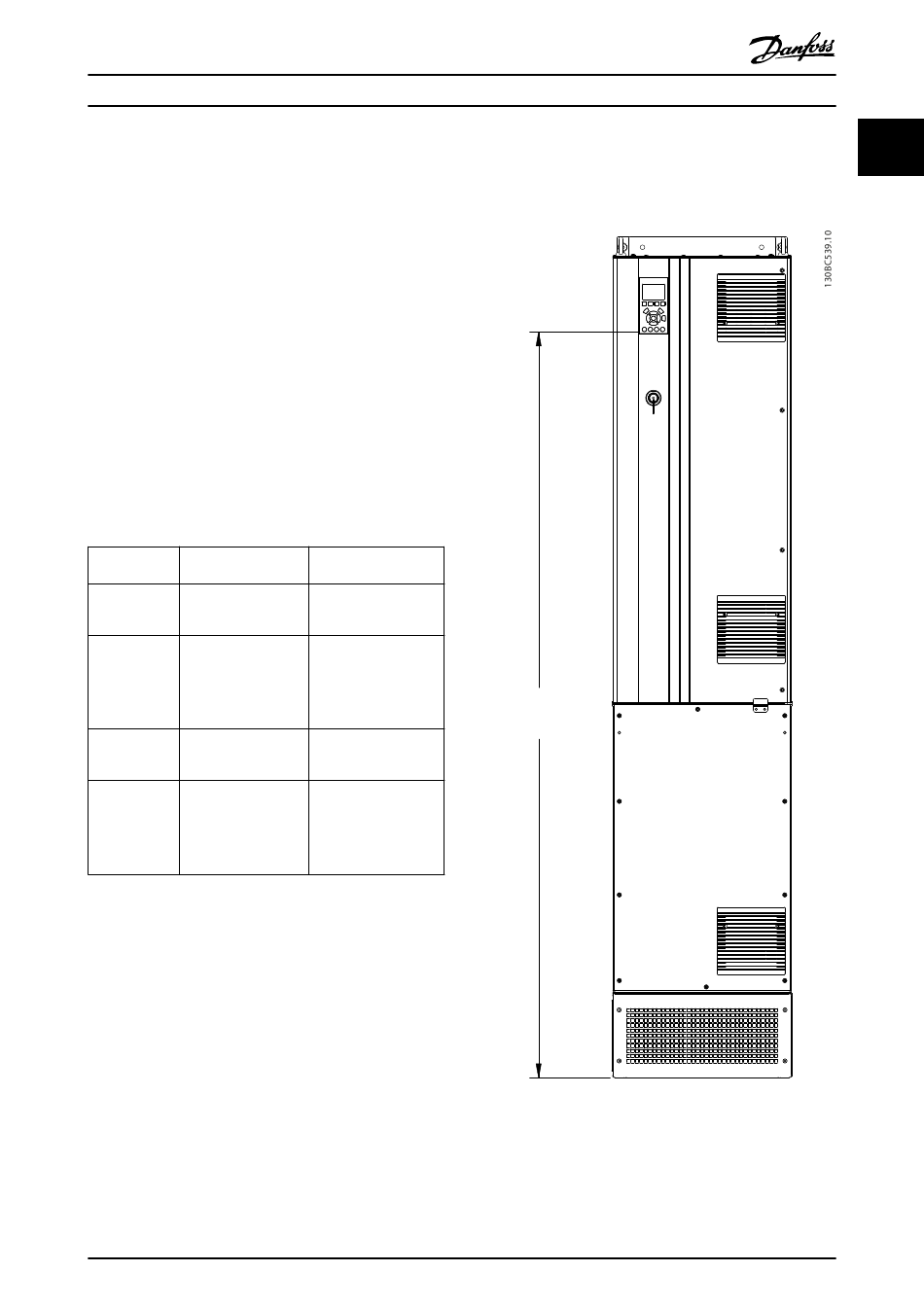

Illustration 1.2 D7h Enclosure
