Introduction
1 1
1.4.2 Interior Views
1
15
13
(IP21/54
NEMA 1/12)
1 LCP (local control panel)
2 RS485 fieldbus connector
3 Digital I/O and 24 V power supply
4 Analog I/O connector
5 USB connector
6 Fieldbus terminal switch
7 Analog switches (A53, A54)
8 Relay 1 (01, 02, 03)

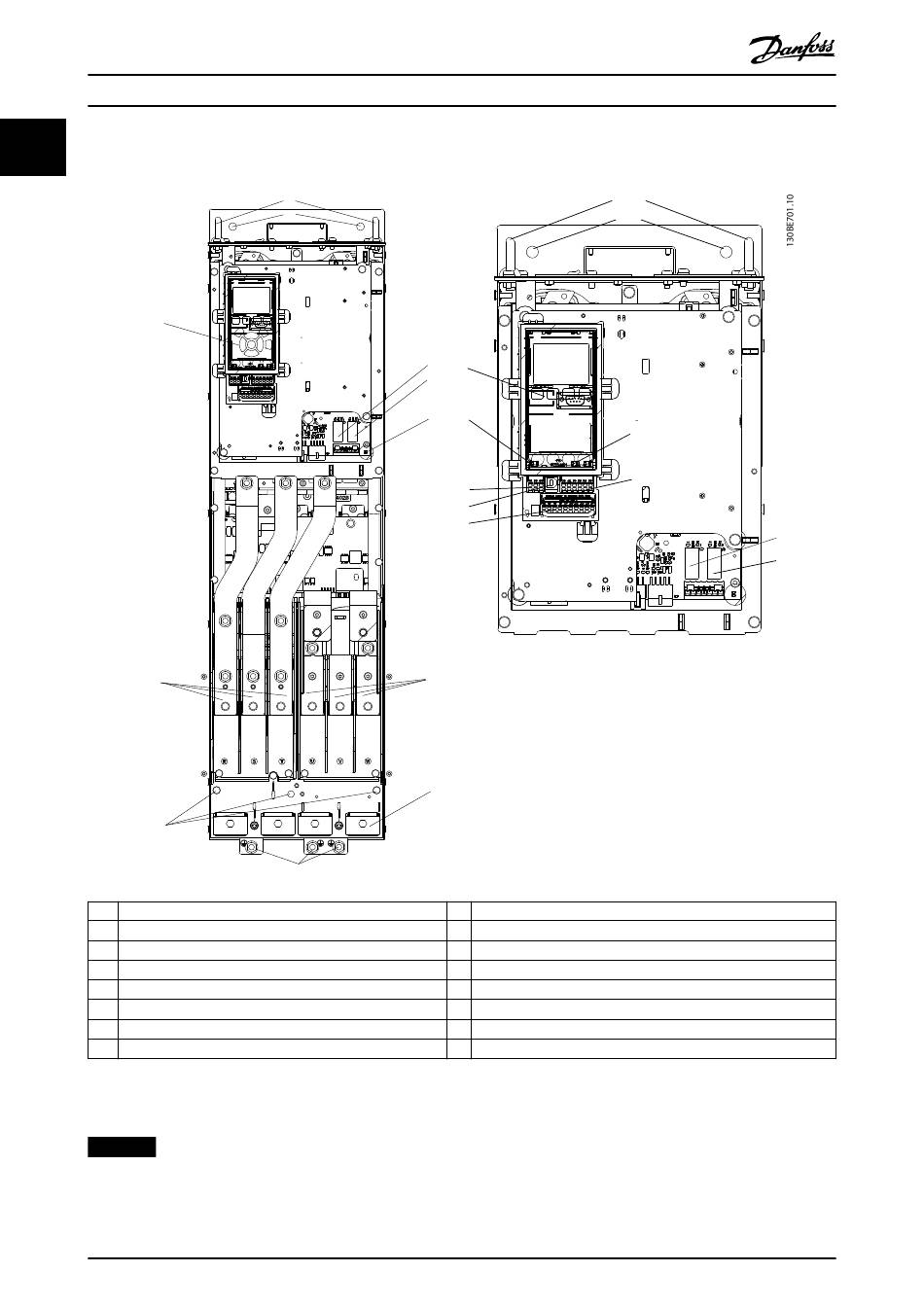

Illustration 1.1 D1 Interior Components (left); Close-up View: LCP and Control Functions (right)
NOTICE
For location of TB6 (terminal block for contactor), see chapter 4.6 Motor Connection.
4
®
VLT AQUA Drive FC 202
10
11
8
9
16
14
12
13 (IP20/Chassis)
9
10 Lifting ring
11 Mounting holes
12 Cable clamp (PE)
13 Ground
14 Motor output terminals 96 (U), 97 (V), 98 (W)
15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
16 TB5 (IP21/54 only). Terminal block for anti-condensation heater
