NOTICE
DAMAGE TO HEAT SINK
Using fasteners that are longer than those originally
supplied with the heat sink panel will damage the heat
sink cooling fins.

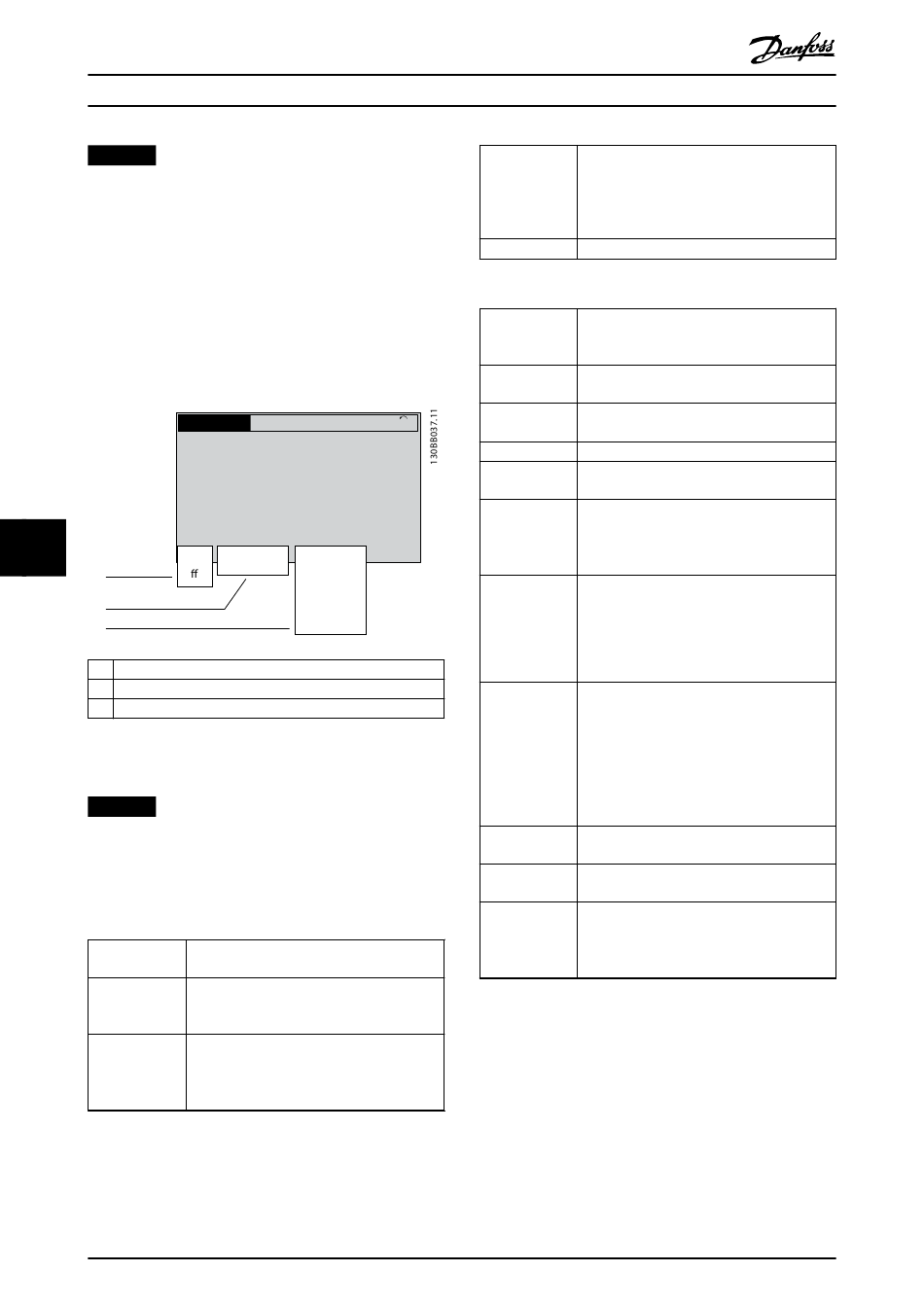

8.3 Status Messages

When the drive is in status mode, status messages
automatically appear in the bottom line of the LCP display.
Refer to Illustration 8.2. Status messages are defined in
Table 8.1 – Table 8.3.
8 8
1
2
3
1 Where the stop/start command originates. Refer to Table 8.1.
2 Where the speed control originates. Refer to Table 8.2.
3 Provides the drive status. Refer to Table 8.3.
Illustration 8.2 Status Display
NOTICE
In auto/remote mode, the drive requires external
commands to execute functions.
Table 8.1 to Table 8.3 define the meaning of the shown
status messages.
Off
Auto
Hand
Table 8.1 Operating Mode
60
VLT® HVAC Drive FC 102
Status
799RPM 7.83A
0.000
53.2%
Auto Remote Ramping
Hand Local
Stop
O Running
Jogging
.
.
.
Stand-by
The drive does not react to any control signal
until [Auto On] or [Hand On] is pressed.
The start/stop commands are sent via the
control terminals and/or the serial communi-
cation.
The navigation keys on the LCP can be used
to control the drive. Stop commands, reset,
reversing, DC brake, and other signals applied
to the control terminals override local control.
Danfoss A/S © 01/2017 All rights reserved.
Remote
Local
Table 8.2 Reference Site
AC brake
AMA finish OK
AMA ready
1(1)
36.4kW
AMA running
Braking
Braking max.
Coast
Ctrl. ramp-down [1] Ctrl. ramp-down was selected in
Current high
Current low
DC hold
The speed reference is given from
•
external signals.
•
serial communication.
•
internal preset references.
The drive uses reference values from the LCP.
AC brake was selected in parameter 2-10 Brake
Function. The AC brake overmagnetizes the
motor to achieve a controlled slow down.
Automatic motor adaptation (AMA) was
carried out successfully.
AMA is ready to start. To start, press [Hand
On].
AMA process is in progress.
The brake chopper is in operation. The brake
resistor absorbs the generative energy.
The brake chopper is in operation. The power
limit for the brake resistor defined in
parameter 2-12 Brake Power Limit (kW) has
been reached.
•
[2] Coast inverse was selected as a function
for a digital input (parameter group 5-1*
Digital Inputs). The corresponding terminal
is not connected.
•
Coast activated by serial communication.
parameter 14-10 Mains Failure.
•
The mains voltage is below the value set
in parameter 14-11 Mains Fault Voltage Level
at mains fault.
•
The drive ramps down the motor using a
controlled ramp down.
The drive output current is above the limit set
in parameter 4-51 Warning Current High.
The drive output current is below the limit set
in parameter 4-52 Warning Speed Low.
DC hold is selected in parameter 1-80 Function
at Stop and a stop command is active. The
motor is held by a DC current set in
parameter 2-00 DC Hold Current.
