Danfoss FC 102 Operating Manual page 100
Vlt hvac drive, 355–800 kw, enclosure size e
Hide thumbs
Also See for FC 102:
- Installation manual ,
- Programming manual (756 pages) ,
- Design manual (254 pages)
Table of Contents
Advertisement
Specifications
262
(10.3)
9
9
1
RFI shield termination (standard with RFI option)
2
Cable/EMC clamp
3
Gland plate

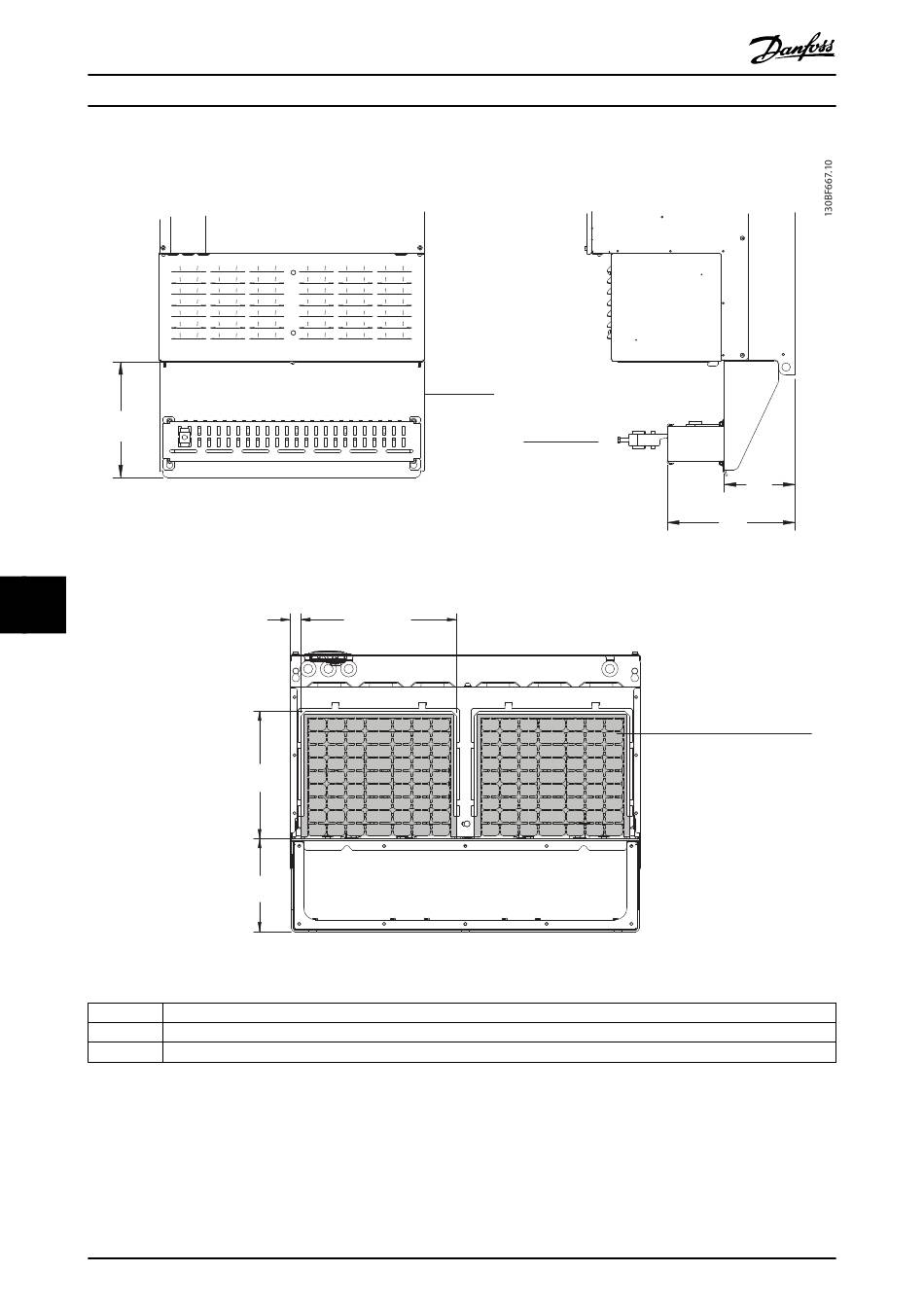

Illustration 9.17 RFI Shield Termination and Gland Plate Dimensions for E4h
98
VLT® HVAC Drive FC 102
19 (0.7)
2X 268 (10.6)
2X 220
(8.6)
160
(6.3)
Danfoss A/S © 01/2017 All rights reserved.
1
2
163
(6.4)
294
(11.6)
3
MG16O102
