Electrical Installation
1
2
3
4
L1
L2
L3
PE
5
1 PLC
2
Minimum 16 mm 2 equalizing cable
3 Control cables
4 Minimum 200 mm between control cables, motor cables, and
mains cables.
5 Mains supply
6 Bare (unpainted) surface
7 Star washers
8 Brake cable (shielded)
9 Motor cable (shielded)

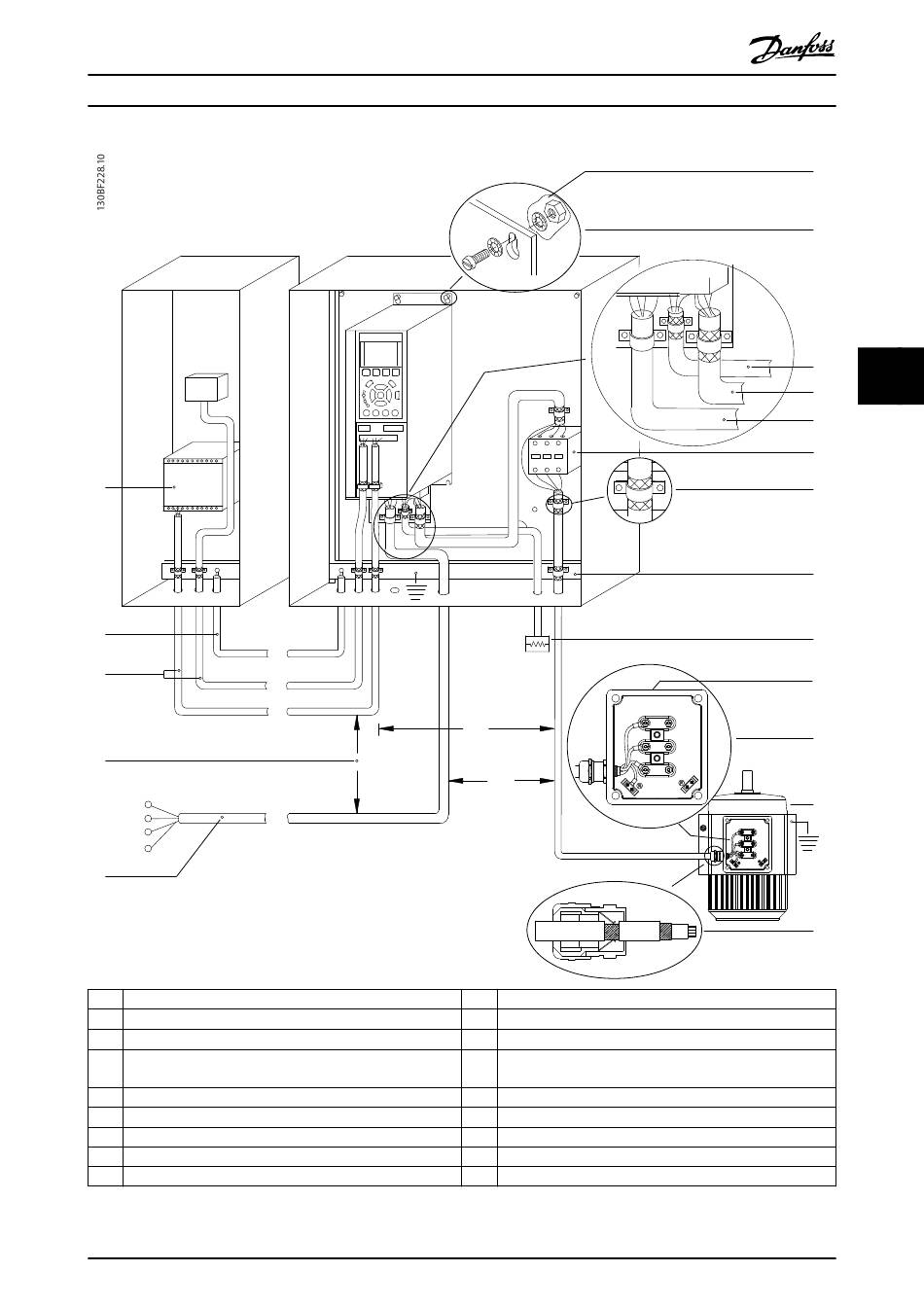

Illustration 5.1 Example of Proper EMC Installation
MG16O102
Operating Guide
90
4
4
10 Mains cable (unshielded)
11 Output contactor, and so on
12 Cable insulation stripped
13 Common ground busbar. Follow local and national
requirements for cabinet grounding.
14 Brake resistor
15 Metal box
16 Connection to motor
17 Motor
18 EMC cable gland
