Electrical Installation
5.7.4 Mains, Motor, and Ground for E4h
5 5
6X 148 (5.8)
1
90 (3.5)
50 (2.0)
0 (0.0)
1 Mains terminals
2 Brake or regeneration terminals

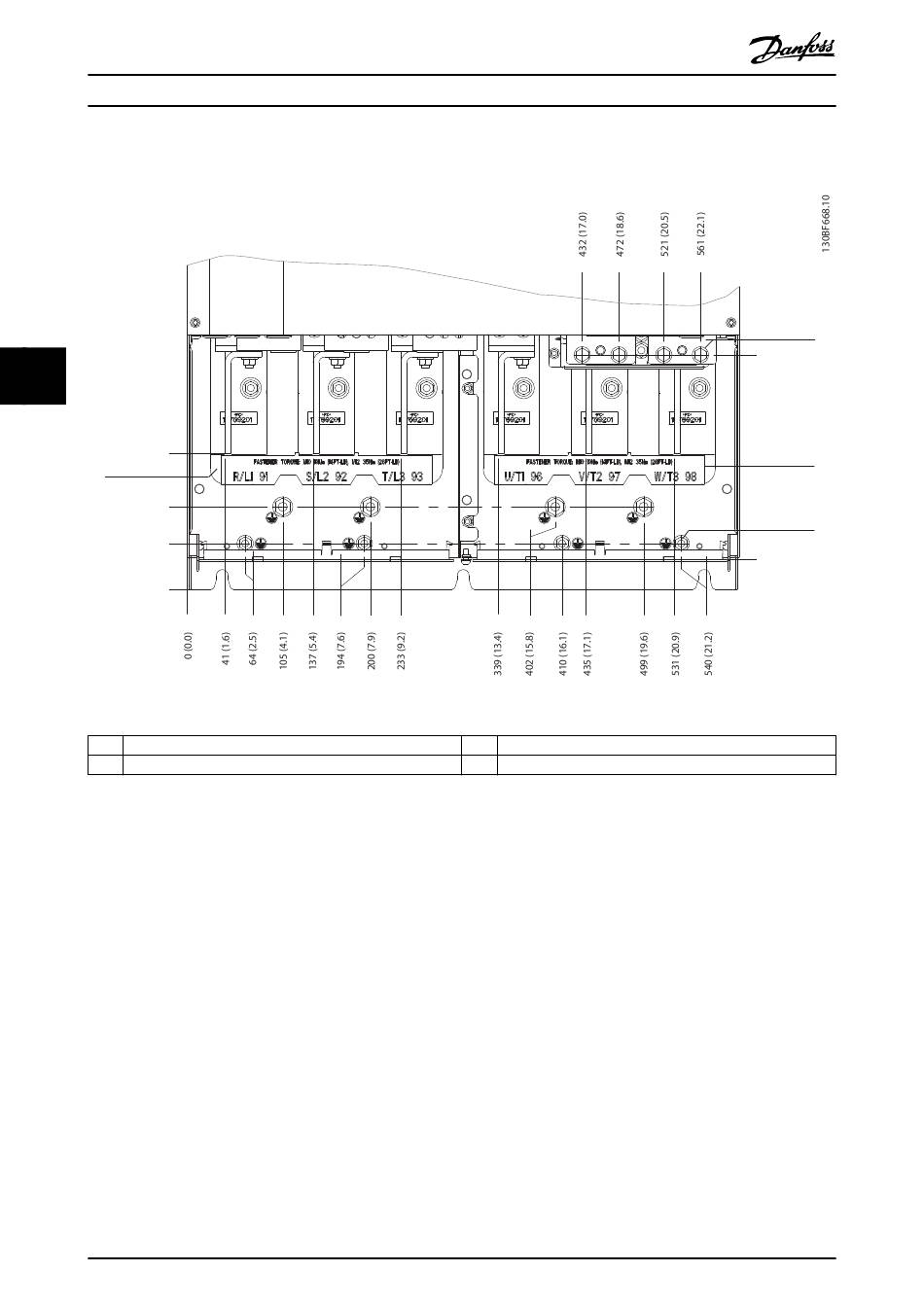

Illustration 5.13 E4h Terminal Dimensions (Front View)
38
VLT® HVAC Drive FC 102
3 Motor terminals
4 Ground terminals, M8 and M10 nuts
