2.4.1 Main Setup Page

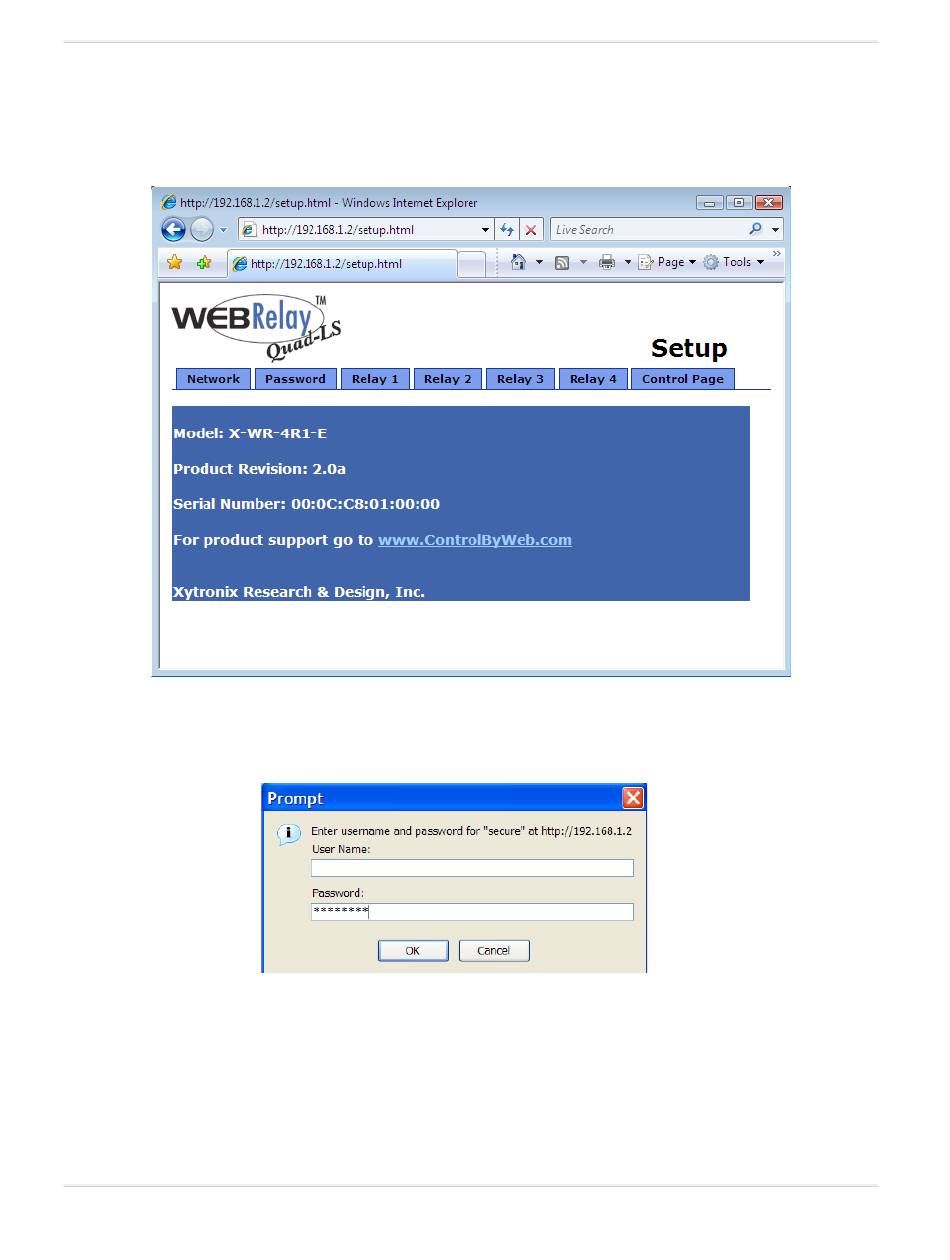

This is the initial page that appears when the URL http://192.168.1.2/setup.html is entered into the web
browser. It provides basic information about the WebRelay-Quad unit.
TM
Navigating between setup pages is done by clicking on the tabs at the top of the page. All setup pages
require a password. The default password is 'webrelay' (no quotes, all lower case) and no user name
is required.
Each setup page has a "Submit" button and a "Reset" button at the bottom of the page. After entering the
desired parameters into each page, the "Submit" button must be pressed before any parameters will be
saved. If a mistake is made in entering the parameters, the "Reset" button may be used to restore all
parameters on the page to their current settings. The "Reset" button is only effective before the "Submit"
button is pressed.

2.4.2 Network Setup Page

The network parameters are changed on this page. Note that if multiple WebRelay-Quad units are used on
TM
the same network, install one unit at a time and set the IP address of each unit before connecting the next
