WebRelay Users Manual

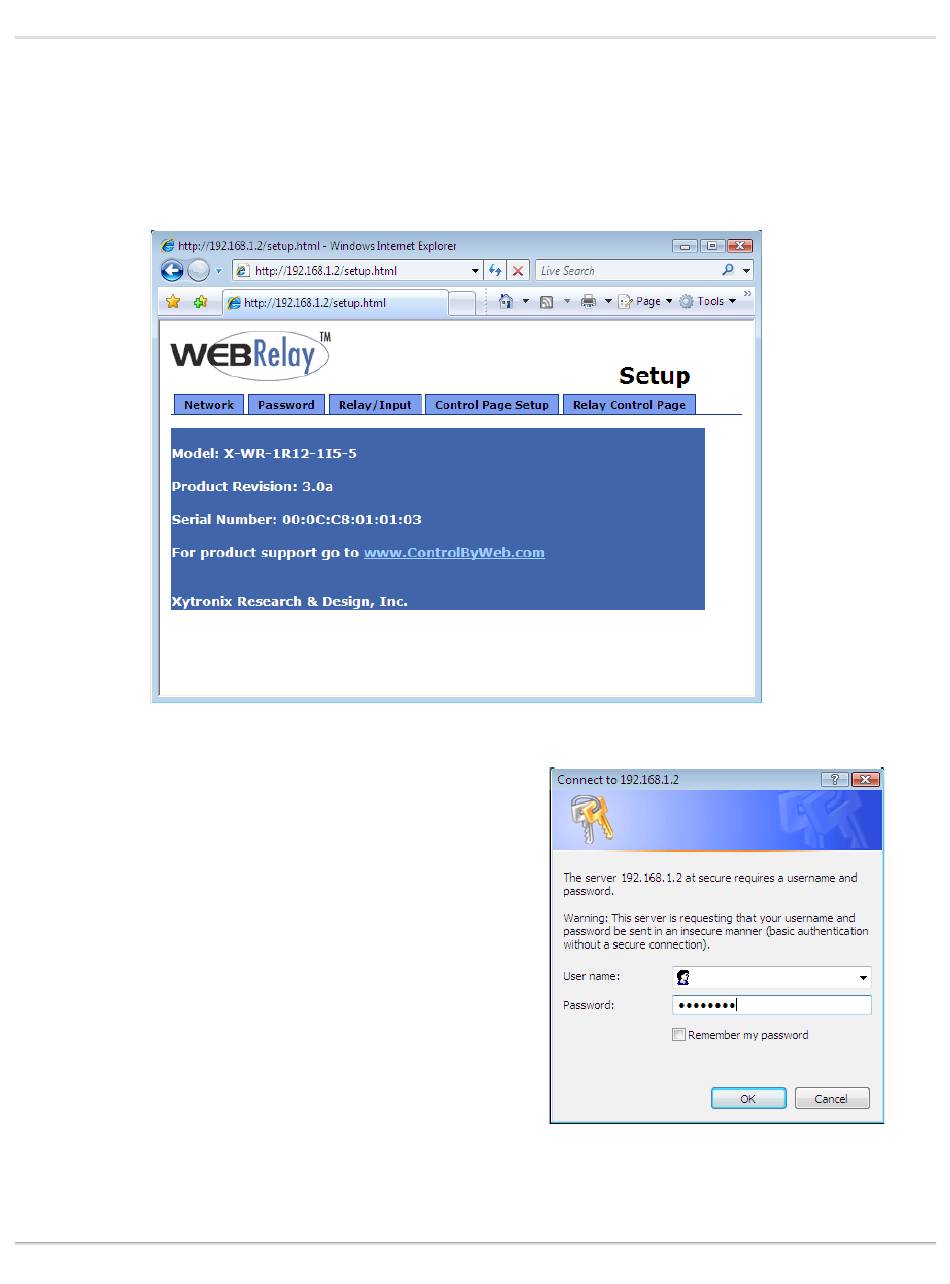

3.1.1 Main Setup Page
This is the initial page that appears when the following URL http://192.168.1.2/setup.html is entered into
the web browser. It provides basic information about the WebRelay unit. Navigating between setup
pages is done by clicking on the tabs at the top of the page.
The setup pages require a password. The default user
name is 'admin'. The default password is 'webrelay' (no
quotes, all lower case).
Most setup pages have a "Submit" button and a "Reset"
button at the bottom of the page. After entering the
desired parameters into each page, click the "Submit"
button before any parameters will be saved.
If a mistake is made in entering the parameters, click the
"Reset" button to restore all parameters on the page to
their current settings. The "Reset" button is only effective
before the "Submit" button is pressed.
Xytronix Research & Design, Inc.
Page 35
