2.4.3 Password Setup Page

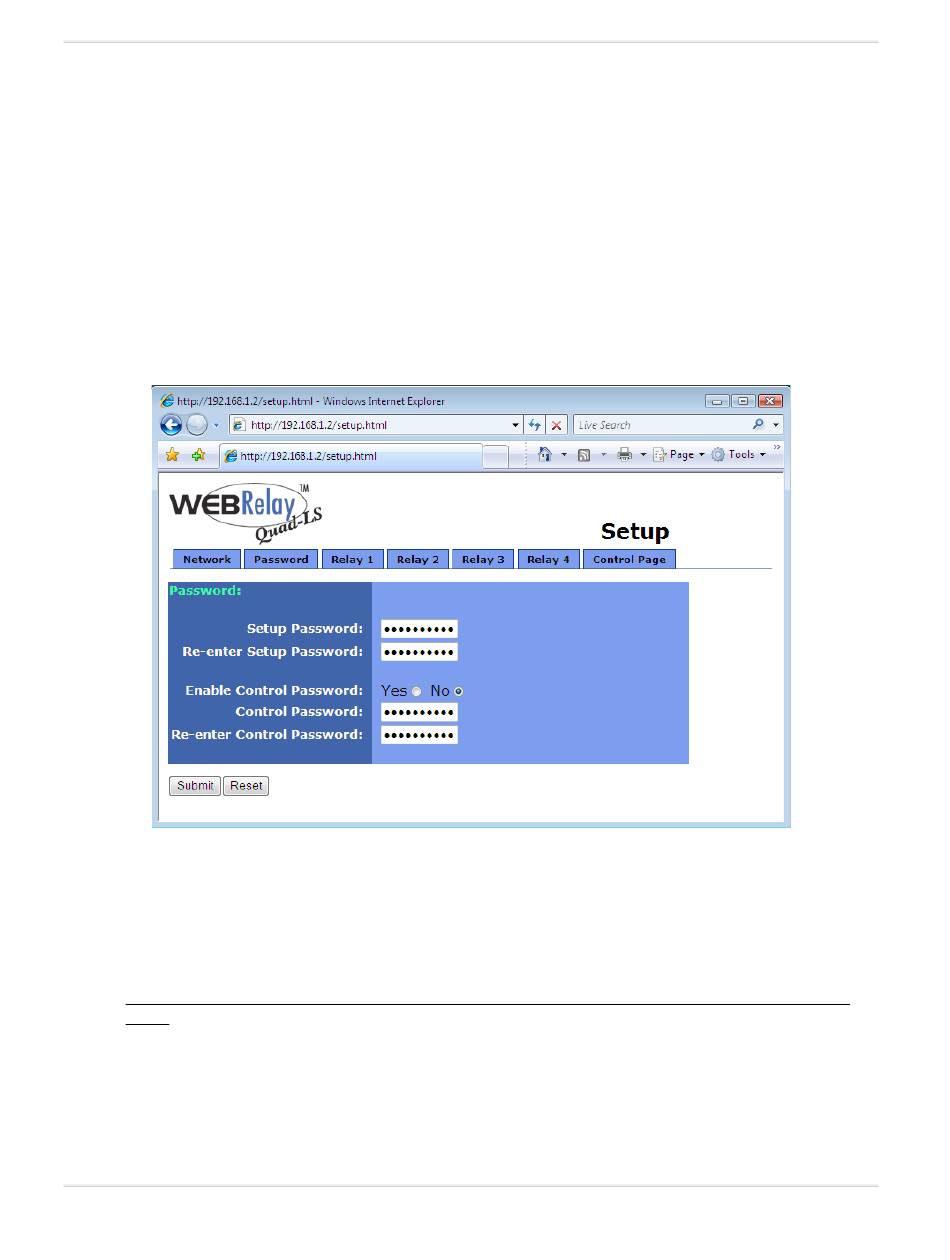

The password setup page is used to change and enable passwords. A password is required for the setup
pages but is optional for the control page. The password is enabled or disabled for the control page by using
the Yes or No radio buttons. Enabling the control page password also enables the requirement for a
password when reading/writing XML pages. Enabling the control page password also disables the ability to
communicate with WebRelay-Quad
may be displayed in the browser's history in clear text. It is advisable to clear the browsers history after
setting the password. Passwords may be up to 10 characters.
2.4.4 Relay Setup Pages
These pages are used to set up the function of each of the four relays, and how each relay is represented on
the control page. All four pages are identical, with the exception of the Relay 1 page which also includes a
field for the main header text on the control page, the option to automatically refresh the control page, and
the time duration for auto refresh.
The following settings (1-3) are only included on the Relay 1 setup page and not on Relay 2,3 or 4 setup
pages.
1. Main Header Text:
This text will be displayed in the main header area of the control page. This field can be up to 25 characters
in length.
2. Auto Refresh Page:
Web pages traditionally display static information. The WebRelay-Quad
