Revision 2.6
2.4 Web-Based Setup
WebRelay-Quad™ is fully configurable through HTML 4.0 compliant web browsers such as
Internet Explorer and Mozilla Firefox. It's easy to use tab based menu system has been designed
to allow the unit to be configured easily. Note that in this chapter, the default IP address of
192.168.1.2 is used in all examples. If the IP address has been changed, substitute the new IP
address for the address shown in the examples.
Before proceeding, make sure a network connection has been established between the computer
and WebRelay-Quad™. This is done by typing the following URL into the web browser:
http://192.168.1.2/setup.html. Another way to check communications is to ping WebRelay-
Quad™ (from the command prompt (type ping 192.168.1.2)). Each setup page is described
below.

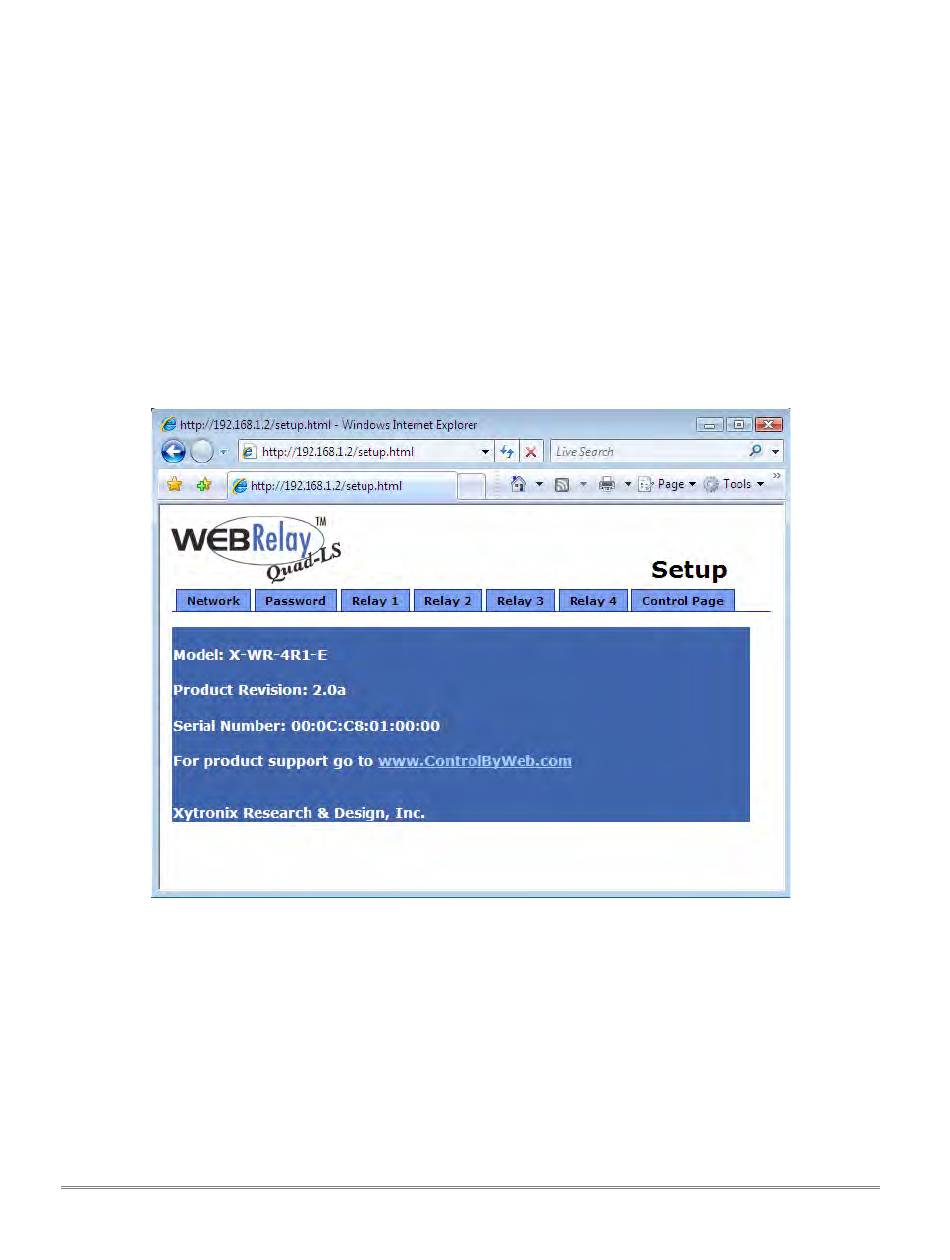

2.4.1 Main Setup Page
This is the initial page that appears when the URL http://192.168.1.2/setup.html is entered into the
web browser. It provides basic information about the WebRelay-Quad™ unit.
Xytronix Research & Design, Inc.
WebRelay-Quad™ Users Manual
page 19
