Revision 2.2b

Section 2: Installation and Setup

Installation consists of mounting WebRelay-Quad
web browser, and wiring relay contacts to the device that will be controlled.

2.1 Mounting

WebRelay-Quad can be be wall mounted or DIN rail mounted. It should be mounted in a clean dry location where
TM
it is protected from the elements. Ventilation is recommended for installations where ambient air temperature is
expected to be high.

2.1.1 Wall Mounting

WebRelay-Quad
TM
using two #8 screws. Attach the screws to the wall vertically spaced exactly 2.5 inches apart. The head of
the screws should be about 1/10 inch away from the wall. See Appendix C for mechanical details.

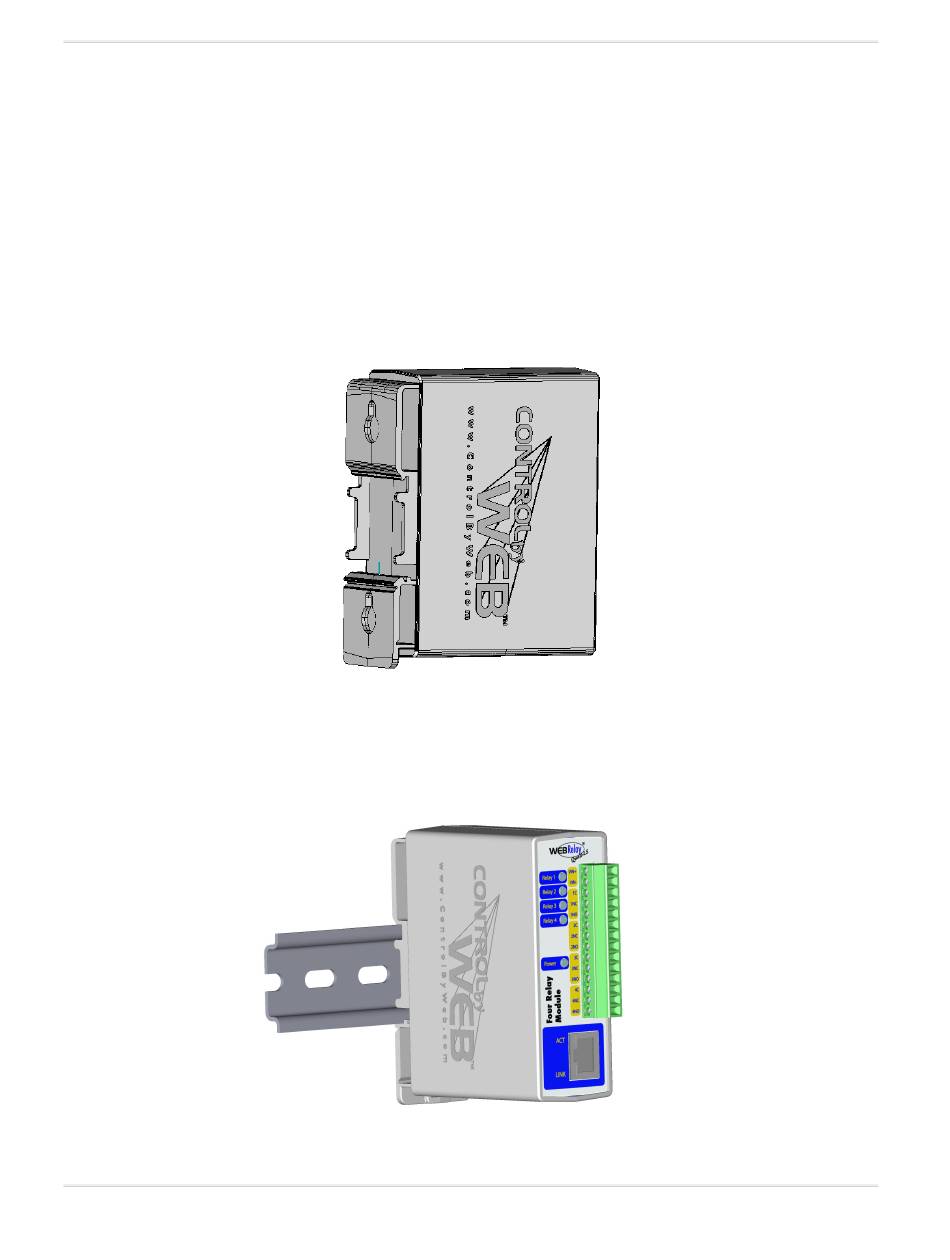

2.1.2 DIN-Rail Mounting

WebRelay-Quad
TM
the DIN rail by hooking the top hook on the back of the enclosure to the DIN rail and then snap the bottom
hook into place. Remove WebRelay-Quad
screwdriver into the notch in the release tab and pry against the enclosure to release the bottom hook.
Xytronix Research & Design, Inc.
, connecting to an IP network, providing power, configuring via a
TM
includes two keyholes in the rear of its enclosure for wall mounting. Mount to a wall by
can be mounted to a standard (35mm by 7.55mm) DIN rail. Attach WebRelay-Quad
TM
from DIN rail using a flat-head screwdriver. Insert the
WebRelay-Quad Users Manual
TM
to
TM
page 9
