information that is dynamic. Each time the control page is loaded to the browser, it displays a snapshot of
the current status of the unit. If the state of the unit changes, the information on the control page will be
outdated unless the page is re-loaded. Whenever a user changes the state of the relay via the web browser,
the web page will automatically reload the control page to display current information. If, however, the
relay state changes due to a change due to a command sent from another machine, the relay state will not be

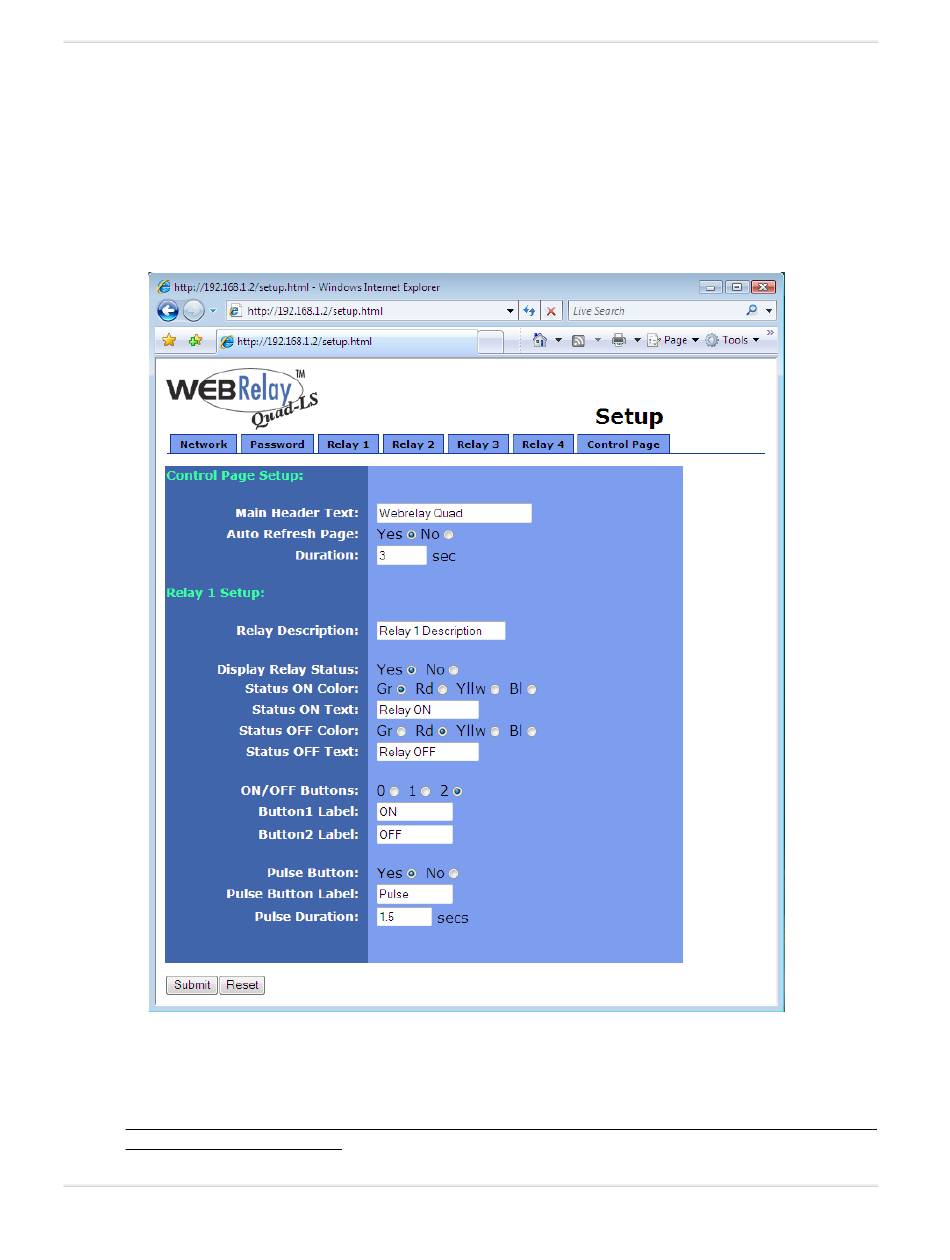

updated and the control page information will be obsolete. The 'Auto Refresh Page' option will cause the
control page to continually update its contents by setting a timer in the web page that causes it to be reloaded
at a specified time interval.
3. Duration:
If the 'Auto Refresh Page' option is set to Yes, this field specifies the time interval in seconds that the page
will be refreshed. It can be set from 1 to 32 seconds.
The following settings (4-15) are included on all four relay setup pages. The settings correspond only to the
relay associated with that page.
