III. ASSEMBLY INSTRUCTIONS
NOTE! 1. Washers are pushed at two ends of bolts.
2. Some parts has been assembled at the factory.
3. It is strongly recommended this machine to be assembled by two or more
people to avoid possible
#14 Φ10 10pcs
#20 M10 8pcs
#49 M10X20 - 2pcs
#31 M10x90 - 4pcs
#32 M10x70 - 2pcs

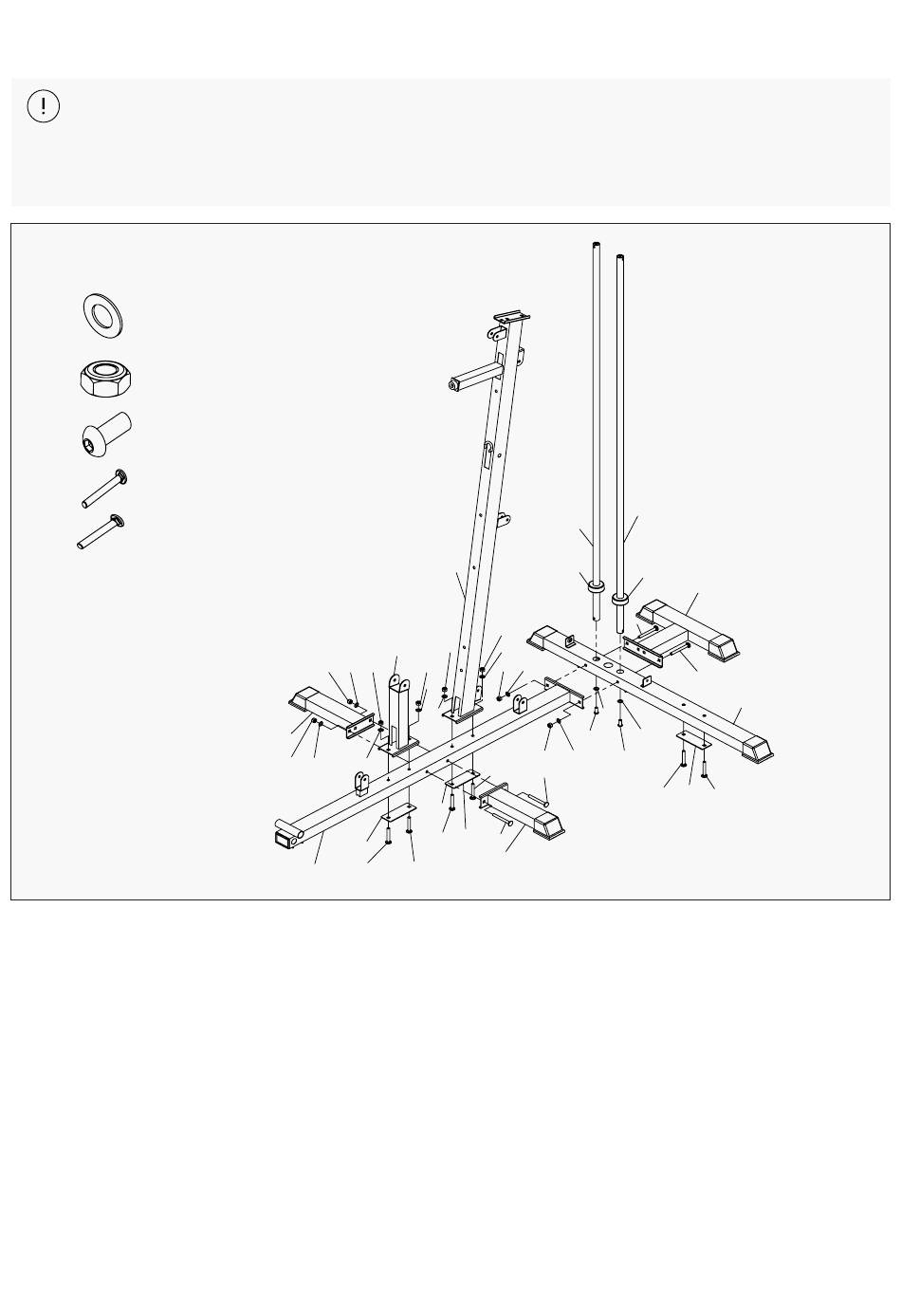

STEP 1
1. Insert the Guide Rode (#1) into the holes on the Main Base Frame (#88). Secure it with 2x Allen Bolt
M10*20mm (#49) and 2x Washer Φ10 (#14).Push the Rubber Dumper (#55) onto the Guide Rods (#1).
2. Attach the Rear Base Frame (#29) to the Front Base Frame (#89) and Main Base Frame (#88). Secure
it with 2x Carriage Bolt M10*90mm (#31), Aircraft Nut M10mm (#20) and 4x Washer Φ10 (#14).
3. Attach the Front Vertical Frame (#2) to the Front Base Frame (#89). Secure it with 2x Washer Φ10 (#14)
and 2x Aircraft Nut M10mm (#20), 2x Carriage Bolt M10*70mm (#32) and Bracket (#22).
4. Attach the seat support tube (#3) to the Front Base Frame (#89), secure with 2x Washer Φ10 (#14) and
2x Aircraft Nut M10mm (#20), 2x Carriage Bolt M10*70mm (#32).
5. Attach the Left and Right Base Tube (#96) to the Front Base Frame (#89). Secure it with 2x Carriage
Bolt M10*90mm (#31), 4x Washer Φ10 (#14) and 2x Aircraft Nut.
10

| ASSEMBLY INSTRUCTIONS

20
3
20
20 14 20
14
14
96
14
14
20
22
32
22
32
32
89
1
2 55
20
14
14
20
14
49
20 14
32 31
22
31
96
1
55
29
31
31
88
14
49
22
32
32
