Pin-assignments

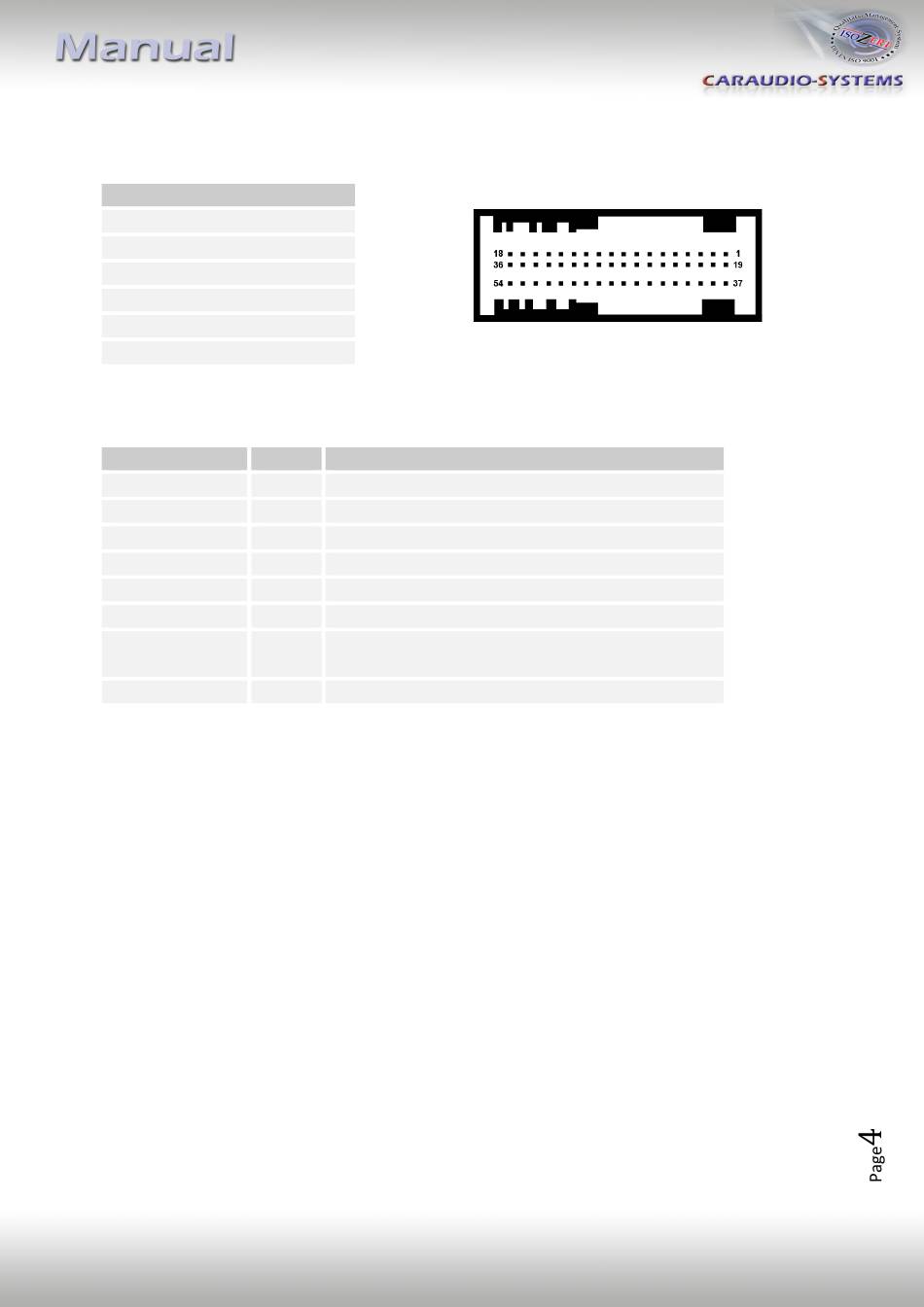

Pin-assignment vehicle connector
Assignment
+12Volt Permanent - Pin 1
Ground - Pin 37
CAN HIGH (500KB) - Pin 19
CAN LOW (500KB) - Pin 18
CAN HIGH (125KB) - Pin 16
CAN LOW (125KB) - Pin 17
Pin-assignment of the CAN-Box RLC-FO01-A (Molex 8pin)
Cable colour Pin-No. Assignment
● Yellow Pin 4
● Blue Pin 3
●● Yellow/Black Pin 8
●● Blue/Black Pin 7
● Red Pin 1
● Black Pin 5
● Green Pin 6
● White Pin 2
Note: White and red cinch plugs on the harness forward the factory AUX signal
and must therefore remain connected.
The open brown cable serve no function and must be isolated.
Version 01.03.2019
CAN-HIGH – connection to the head-unit
CAN-LOW – connection to the head-unit
CAN-HIGH – connection to the vehicle
CAN-LOW – connection to the vehicle
+12V permanent
Ground
Activation of the video-in-motion function
(+12V = TV-free activated)
Rear-view camera power output (+12V DC 500mA)
