- Page 1 v.LOGiC Intelligent Solution Interface V5-CCC compatible with the E-series BMW and Mini with navigation system or radio and 6.5” or 8.8” monitor with 10pin BMW LVDS connector Version 01.12.2015 V5-CCC...
- Page 2 Product features Own on-screen display and setup Rear-view camera input Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes Front camera input Manual switching to rear-view camera (only for vehicles with PDC button) ...
-
Page 3: Table Of Contents
Contents 1. Prior to Installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the dip switches of the interface-box V5C-M631 1.4. LED’s of the interface-box V5C-M631 2. Connection schema 3. Installation 3.1. Connecting interface-box and harnesses 3.2. - Page 4 Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. This product should only be used while standing or to display fixed menus or rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades.
-
Page 5: Prior To Installation

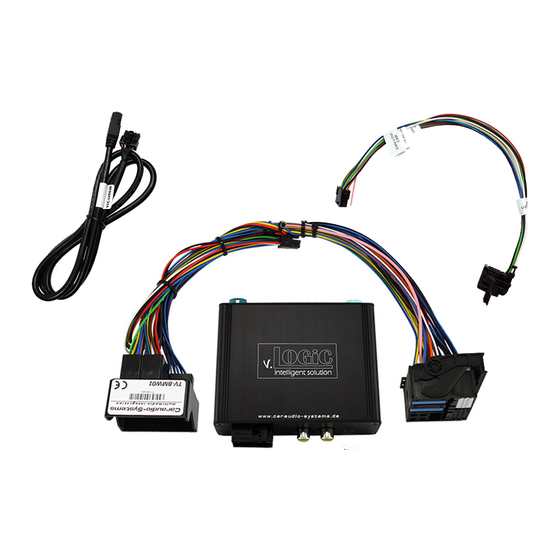

1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. -
Page 6: Setting The Dip Switches Of The Interface-Box V5C-M631
1.2. Setting the dip switches of the interface-box V5C-M631 Dip 1 and 2 on the back of the interface-box V5C-M631 are used to set the monitor type. The default setting is: Vehicle/ navigation Dip 1 Dip 2 Dip 3 M-ASK No function No function No function... -
Page 7: Connection Schema
2. Connection schema Interface-box V5C-M631 REAR 10pin BMW LVDS female vehicle harness Quadlock male on rear side of the Head Unit LVDS cable V4C-LVDS10 Side view of the factory monitor Interface-box V5C-M631 FRONT +12V Quadlock female vehicle harness Ground CAN (2) Rear-view camera CAN (1) -
Page 8: Installation
3. Installation Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent 12V source. If according to factory rules disconnecting the battery is to be avoided, it is usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead. - Page 9 Cut the CAN bus wires of the vehicle harness and connect them in series according to the pin assignment (see below) with the CAN bus wires from the V5C-UNI01 harness. Connect red wire with +12V (pin 15) and black wire with ground (pin 12). Connect female 12pin AMP connector of the harness V5C-UNI01 to the front site of the V5C-M631 interface box.
-
Page 10: Lvds Connection
3.2. LVDS connection Interface-box V5C-M631 REAR 10pin BMW LVDS female vehicle harness LVDS cable V4C-LVDS10 Side view of the factory monitor Connect the female 10pin Micro-Fit connector of the LVDS cable V4C-LVDS10 to the male 10pin Micro-Fit connector (LVDS-OUT) on the rear of the interface-box V5C-M631. -
Page 11: After-Market Front Camera
3.2.1. After-market front camera 3.2.1.1. Connection to the after-market front camera Interface-Box V5C-M631 VORDERSEITE Anschlusskabel V5C-UNI01 Frontkamera +12V Kamera Power Out 1 (max. 1A) Stromversorgung Connect the video RCA of the after-market front camera to the female RCA connector “FRONT CAM” of the interface box V5C-M631. The pink wire of harness V5C-UNI01 can be used for +12V electric power supply (max. -
Page 12: Settings For Connecting An After-Market Front Camera
3.2.1.2. Settings for connecting an after-market front camera You have to configure some settings in the OSD-menus INPUTS and MISC if you want to connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”). OSD-menu Menu item Setting Explication No front camera connected FRONT CAM... -
Page 13: After-Market Rear-View Camera
3.2.2. After-market rear-view camera 3.2.2.1. Connection to the after-market rear-view camera Interface-box V5C-M631 FRONT V5C-UNI01 harness Rear-view camera +12V reverse gear analogue (exception) +12V camera Power Out 2 (max. 1A) power Rear gear signal input (+12V) Connect the video RCA of the after-market rear-view camera to the female RCA connector “REAR CAM”... -
Page 14: Settings For Connecting An After-Market Rear-View Camera
3.2.2.2. Settings for connecting an after-market rear-view camera You have to configure some settings in the OSD-menus INPUTS and MISC if you want to connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD- Operation”). OSD-menu Menu item Setting Explication No rear-view camera connected... -
Page 15: Configurable Trigger Outputs
3.2.3. Configurable trigger outputs Interface-box V5C-M631 FRONT +12V switching outputs Power Out 1 (max. 1A) Power Out 2 (max. 1A) V5C-UNI01 harness You can configure the both +12V trigger outputs separately. The pink wire is POWER OUT 1 and the green wire is POWER OUT 2. Note: You can configure the both trigger outputs in the OSD-menu MISC separately (Operation of the OSD: see chapter “OSD-Operation”). -
Page 16: Picture Settings
3.3. Picture settings You can change the picture settings in the OSD-menu IMAGE (Operation of the OSD: see chapter “OSD-Operation”). ◦ Brightness ◦ Contrast ◦ Saturation ◦ Hue ◦ Sharpness Note: The picture settings will be retained for each video source separately. Version 01.12.2015 V5-CCC... -
Page 17: Operation
4. Operation 4.1. OSD – On-screen display You can change the basic configurations of the interface in the OSD (on screen display). 4.1.1. OSD – Operation You can control the OSD by iDrive. 4.1.1.1. 1- and 2-button iDrive Note: If the interface is selected as active video source then the OSD menu is activated via iDrive button "OK"... -
Page 18: 2-Button Idrive In Mini
4.1.1.2. 2-button iDrive in Mini 4.1.2. OSD – Additional setting options The following settings in the OSD-menus OSD and MISC can be configured over and above the described settings in this manual (Operation of the OSD: see chapter “OSD-Operation”): OSD-menu Menu item Setting Explication... -
Page 19: Video-In-Motion Function
4.2. Video-in-motion function It is possible to activate and deactivate the video-in-motion in the OSD menu “MISC” (Operation of the OSD: see chapter “OSD-Operation”). OSD-menu Menu item Setting Explication Video-in-motion activated MISC Video-in-motion deactivated For the V5-CIC-E-PNP the video-in-motion function is permanently active without disturbing the navigation performance. -
Page 20: Specifications
Front camera Female input update-connector Mini USB 7. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners.
