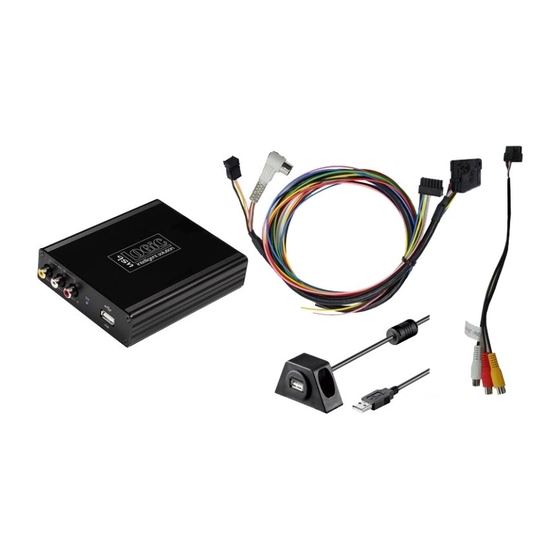

usbLOGiC USB-AV-Player
USB-C25
compatible with navigation systems
Mercedes Benz Comand 2.5
Product features
• USB-port for media up to 2 TB (2000GB)
• supports FAT32 and NTFS formatted media
• multi partition capable
• compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more
• last position memory
• integrated into and controllable by vehicle infotainment
• AV-input with IR-control channel
• control of after-market devices by OEM buttons, e.g. DVD-player, USB/iPod devices, ...
• after-market rear-view camera input
• automatic switching to rear-view camera input (only from usbLOGiC mode)
• rear-view camera power (+12V max. 1A)
• rear-seat-entertainment AV-output
• optional remote control for full USB functions/rear-seat-entertainment
• power on remote out trigger signal (+12V max. 1A) to switch on connected devices
• video-in-motion
Version 31.08.2011
USB-C25
Advertisement
Table of Contents
Related Manuals for Caraudio-Systems USB-C25
Summary of Contents for Caraudio-Systems USB-C25
- Page 1 USB-AV-Player USB-C25 compatible with navigation systems Mercedes Benz Comand 2.5 Product features • USB-port for media up to 2 TB (2000GB) • supports FAT32 and NTFS formatted media • multi partition capable • compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more •...
-
Page 2: Table Of Contents
4.4. Assigning device control for connected AV-source 4.5. Button assignment table 4.6. Picture settings 4.7. Audio settings 5. Specifications 6. Connections (USB-box) 7. Technical support Appendix A – Device control table Appendix B – USB function manual Version 31.08.2011 USB-C25... -
Page 3: Prior To Installation
Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. Harness C2C-MB25 Harness C3C-AV USB-box USBC-M500 HW_____ SW_____ USB-installation socket USBC-EXT If remote function for a peripheral device shall be used, additionally an IR-remote cable and Y-adapter are needed, see chapter AV-source. Version 31.08.2011 USB-C25... -
Page 4: Check Compatibility Of Vehicle And Accessories
If no peripheral AV-source shall be connected to the usbLOGiC, we recommend to disable the AV-input, to avoid customers switching by Dip switches of USB-box mistake to black/no picture of the AV-input. In order to disable the AV-input of the usbLOGiC, set dip1 = OFF (down). Version 31.08.2011 USB-C25... -
Page 5: Connection Schema
Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead. Version 31.08.2011 USB-C25... -
Page 6: Connections To The Comand
Plug female 8pin C1 connector of factory harness (if not existing, of C2C-MB25) into C1 slot of Comand’s male system connector. Plug male 5pin DIN connector of harness C2C-MB25 into female 5pin DIN socket on the Comand’s rear. Version 31.08.2011 USB-C25... -
Page 7: Interconnecting Usb-Box And Harnesses
3.2. Interconnecting USB-box and harnesses Plug harness C3C-AV into 6pin Molex of USB-box USBC-M500. Plug harness C2C-MB25 into 14pin Molex of USB-box USBC-M500. Plug female 18pin AMP-connector of C2C-MB25 into male 18pin AMP-socket of USB-box USBC-M500. Version 31.08.2011 USB-C25... -
Page 8: Usb And Optional Ir-Remote Control Set
It is possible to connect an after-market AV-source, an after-market rear-view camera and rear-seat-entertainment to the usbLOGiC. Before final installation of the peripheral devices, we recommend to test-run the usbLOGiC functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral devices as soon as possible. Version 31.08.2011 USB-C25... -
Page 9: Av-Source
IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be connected and used simultaneously. Installation of the IR-sensor is recommended as the controls via navigation are limited, and not all functions may be covered. Version 31.08.2011 USB-C25... -
Page 10: After-Market Rear-View Camera
Note: As the output is a full output, not shared with the video signal for the navigation system, splitting the video with an RCA Y-cable might give a good enough picture for two rear-seat-entertainment monitors. If not, or if connecting more than two monitors, use a video splitter. Version 31.08.2011 USB-C25... -
Page 11: Operation
(to the right +1, to the left -1). At the same time, remember that the starting point is channel RC01 (the first notch to the right is then already RC02). Note: If the AV-input is deactivated (see chapter “Deactivating usbLOGiC AV-input”), it is not necessary, nor possible to assign device controls. Version 31.08.2011 USB-C25... -
Page 12: Button Assignment Table
Additionally to the head-unit buttons, the steering-wheel buttons UP and DOWN can be used for remote functions. DOWN-button has the same function as 17 on the head-unit and UP-button has the same function as 18 on the head-unit. Version 31.08.2011 USB-C25... -
Page 13: Picture Settings
450mA/max. 950mA Power consumption min. 6W/max. 13W Power rating USB-port 0,5A permanent (0,8A max) Temperature range -30°C to +80°C Weight 312g Measurements (box only) B x H x T 135 x 30 x 105 mm 6. Connections (USB-box) Version 31.08.2011 USB-C25... -
Page 14: Technical Support
7. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners. Version 31.08.2011 USB-C25...
