- Page 1 Camera interface RL-LR17-TF Rear-view camera-input video-in-motion compatible with Land Rover INCONTROL TOUCH (8”) system from model 2017 Only for vehicles WITHOUT factory rear-view camera Version 13.11.2018 RL-LR17-TF...
-
Page 2: Table Of Contents
To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 13.11.2018 RL-LR17-TF... -
Page 3: Prior To Installation

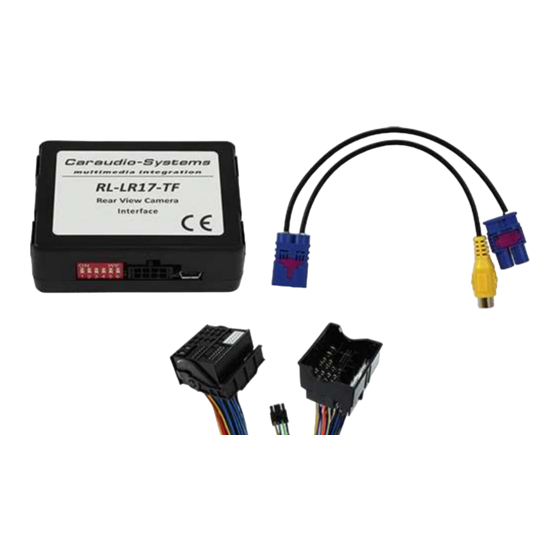

CAN-box RLC-TV517 HW_____ SW_____ Adapter CAB-LR15-R Harness TV-LR05 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Land Rover vehicles from year 2017 Navigation INCONTROL TOUCH (8” screen) Limitations After-market rear-view Only compatible with NTSC-cameras. camera Version 13.11.2018 RL-LR17-TF... -
Page 4: Setting The Dip-Switches Of The Can-Box Rlc-Tv517
DIP 1 – activation TV-free DIP 2 – no function DIP 3 – no function DIP 4 – no function DIP 5 – CAN-bus termination resistor on the vehicle side DIP 6 – CAN-bus termination resistor on the head-unit side Version 13.11.2018 RL-LR17-TF... -
Page 5: Pin-Assignments
Pin 7 CAN-LOW – connection to the vehicle ● Pin 1 +12V permanent ● Black Pin 5 Ground ● Green Pin 6 Activation of the video-in-motion function (+12V = TV-free activated) ● White Pin 2 No function Version 13.11.2018 RL-LR17-TF... -
Page 6: Connection Schema
2. Connection schema Version 13.11.2018 RL-LR17-TF... -
Page 7: Installation
Transfer Quadlock connector of vehicle harness from rear of the head unit into male Quadlock connector of harness TV-LR05. Plug female Quadlock connector of harness TV-LR05 into male Quadlock socket on the rear of the head unit. Version 13.11.2018 RL-LR17-TF... -
Page 8: Connection To Rear-View Camera
Connect the double Fakra socket of adapter CAB-LR15-R to the double blue Fakra- connector on the rear of the head unit. Connect the video RCA of the rear-view camera to the female RCA connector of adapter CAB-LR15-R. Note: Only compatible with NTSC-cameras. Version 13.11.2018 RL-LR17-TF... -
Page 9: Activation Of The Video-In-Motion Function
Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 70 x 20 x 47 mm/ 76 x 27 x 54 mm 6. Technical support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
