TV-Free
Video-in-motion Interface
TF-NTG3
For Mercedes Benz
NTG 3 and NTG 3.5 navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 18.07.2013
TF-NTG3
Advertisement
Table of Contents
Related Manuals for Caraudio-Systems TF-NTG3
Summary of Contents for Caraudio-Systems TF-NTG3
- Page 1 TV-Free Video-in-motion Interface TF-NTG3 For Mercedes Benz NTG 3 and NTG 3.5 navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

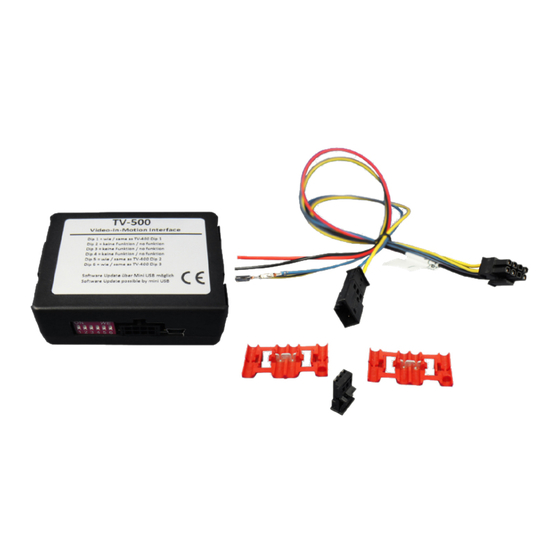

- Page 2 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. CAN-box TV-500 Harness HW_____ SW_____ TV-NTG3 Version 18.07.2013 TF-NTG3...
- Page 3 CAN-LOW – connection to the vehicle ● Pin 1 +12V permanent ● Black Pin 5 Ground ● Green Pin 6 Activation of the video-in-motion function (+12V = TV-free activated) ● White Pin 2 Trigger output (+12V DC 500mA) Version 18.07.2013 TF-NTG3...
- Page 4 Remove the panel under the drawer (panel is slotted). Open the drawer. Loosen the 4 Comand torx screws (2 respectively on each side). Unplug the Comand and unplug the 20-pin socket. Unplug the insert from the 20-pin socket. Version 18.07.2013 TF-NTG3...
- Page 5 Connect a switch to the green cable and connect the green cable to +12V ACC. ● +12V = TV-Free is activated ● = TV-Free is not activated Note: The loose white cable is not required and must be isolated. Version 18.07.2013 TF-NTG3...
- Page 6 ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm 5. Technical Support Caraudio-Systems Vertriebs GmbH NavLinkz GmbH manufacturer/distribution corporate sales/tech dealer support Rheinhorststr. 22 Eurotec-Ring 45 D-67071 Ludwigshafen am Rhein...
