Caraudio-Systems r.LiNK-Interface Manual

Interface for activation of factory rear-view camera input compatible with bmw vehicles with professional ccc navigation systems and factory pdc behind
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
r.LiNK-Interface
RL-CCC-PNP
Interface for activation of
factory rear-view camera input
compatible with BMW vehicles with
Professional CCC navigation systems
and factory PDC behind

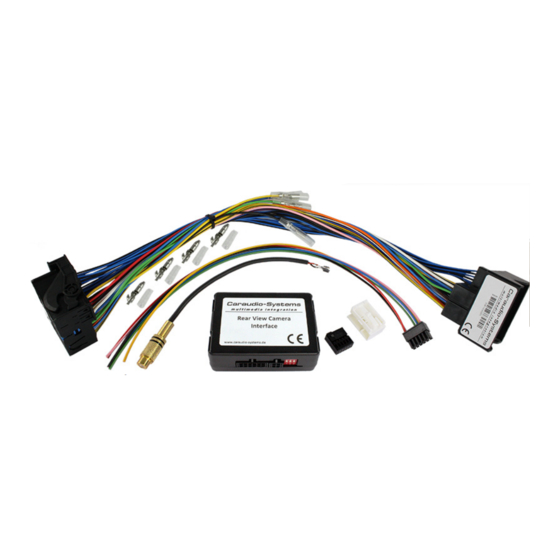

Full version with Quadlock plug and play harness.
Version 08.05.2018
RL-CCC-PNP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the r.LiNK-Interface and is the answer not in the manual?

Questions and answers

Related Manuals for Caraudio-Systems r.LiNK-Interface

Summary of Contents for Caraudio-Systems r.LiNK-Interface

  • Page 1 RL-CCC-PNP Interface for activation of factory rear-view camera input compatible with BMW vehicles with Professional CCC navigation systems and factory PDC behind Full version with Quadlock plug and play harness. Version 08.05.2018 RL-CCC-PNP...
  • Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 2. Installation 2.1. Assignment of the female 12pin connector of harness RLC-CX011 2.2. Assignment of the harness PNP-QUAD01 2.3. Connection of the RLC-CX011 and PNP-QUAD01 harness 2.4.
  • Page 3 1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes.
  • Page 4 2. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead.
  • Page 5 2.4. Camera video connection Pin-assignment quadlock connector / CAB-TVAS40 Assignment Pin number ● Red (Video signal) Pin 4 (Chamber A) ● Black (Video ground) Pin 2 (Chamber A) No liability for vehicle wire colors and pin definition! Possible changes by the vehicle manufacturer.
  • Page 6 Temperature range -30°C till +80°C Weight Measurements (box only) W x H x D 71 x 22 x 50 mm 5. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
