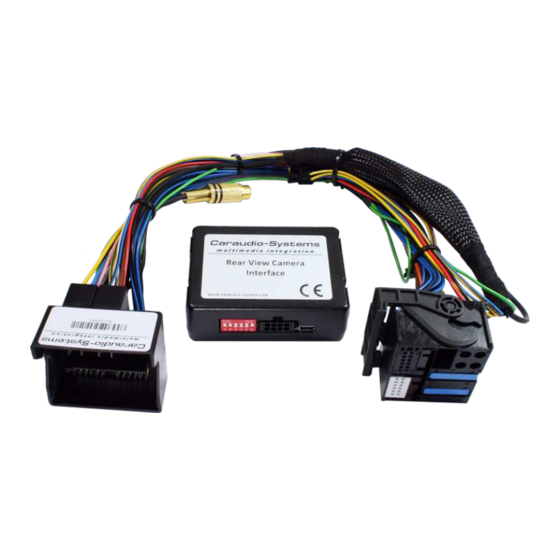

Camera interface
RL-PCM3-TF
Rear-view camera-input
and
video-in-motion
compatible with Porsche vehicles with
PCM 3 and PCM 3.1 navigation systems
Only for vehicles WITHOUT factory rear-view camera
Product features
• Plug and play interface
• Integrated into the vehicle infotainment
• Rear-view camera input (+ coding)
• Rear-view camera power (+12V max. 400mA)
• Video-in-motion
• Automatic switching to rear-view camera input
• Optionally coding of ParkAssistant to retrofit factory PDC
Version 13.03.2015
RL-PCM3-TF
Advertisement
Table of Contents
Related Manuals for Caraudio-Systems RL-PCM3-TF
Summary of Contents for Caraudio-Systems RL-PCM3-TF
- Page 1 Camera interface RL-PCM3-TF Rear-view camera-input video-in-motion compatible with Porsche vehicles with PCM 3 and PCM 3.1 navigation systems Only for vehicles WITHOUT factory rear-view camera Product features • Plug and play interface • Integrated into the vehicle infotainment • Rear-view camera input (+ coding) •...
-
Page 2: Table Of Contents
To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 13.03.2015 RL-PCM3-TF... -
Page 3: Prior To Installation
Check compatibility of vehicle and accessories Requirements Vehicle Porsche Cayenne, Panamera, 911, Boxster, Cayman, Macan Navigation PCM 3 (only Cayenne version) , PCM 3.1 (911, Boxster and Cayman only from software version 4.xx) Limitations Video-in-motion Internal DVD video cannot be watched! Version 13.03.2015 RL-PCM3-TF... -
Page 4: Pin-Assignments
CAN-HIGH – connection to the vehicle ●● Blue/Black Pin 7 CAN-LOW – connection to the vehicle ● Pin 1 +12V permanent ● Black Pin 5 Ground ● Green Pin 2 +12V rear-view camera (max. 400mA) ● White Pin 6 Alternatively coding Version 13.03.2015 RL-PCM3-TF... -
Page 5: Connection Schema
2. Connection schema Version 13.03.2015 RL-PCM3-TF... -
Page 6: Installation
CAN-box RLC-TV521. Transfer female Quadlock connector of vehicle harness from rear of the head-unit into male Quadlock connector of harness RLC-POR03. Plug female Quadlock connector of harness RLC-POR03 into male Quadlock connector on the rear of the head-unit. Version 13.03.2015 RL-PCM3-TF... -
Page 7: Connection To Rear-View Camera
Connect the green cable of harness RLC-POR03 to the camera power supply (+12V max 400mA). The green cable is high when reverse gear is engaged (if ignition is off, too). The power will be deactivated from a speed of 20 km/h. Version 13.03.2015 RL-PCM3-TF... -
Page 8: Coding Of The Rear-View Camera (Only Pcm3.1)
CAN-box (visible at the male 8pin Molex connector). The PCM makes a reset after 5- 10 sec. 6. Disengage both steering-wheel buttons 7. The red and the blue LED inside the CAN-Box are glowing and the menu „Rear-view camera“ disappears in the menu OPTION after a successful decoding Version 13.03.2015 RL-PCM3-TF... -
Page 9: Optionally Coding Of Parkassistant To Retrofit Factory Pdc (Only Pcm3.1)
CAN-box (visible at the male 8pin Molex connector). The PCM makes a reset after 5- 10 sec. 6. Disengage both steering-wheel buttons 7. The red and the blue LED inside the CAN-Box are glowing and the menu „ParkAssistant“ disappears in the menu OPTION after a successful decoding Version 13.03.2015 RL-PCM3-TF... -
Page 10: Alternatively Coding And Decoding Of Rear-View Camera And Parkassistant
Note: After a coding or decoding another coding isn’t possible within the next 60 seconds! If there are factory-PDC existing in the car you have to set Dip 4 to ON while coding. If not the factory PDC will be decoded! Version 13.03.2015 RL-PCM3-TF... -
Page 11: Coding And Decoding Of Rear-View Camera (Only Cayenne With Pcm3)
Note: After a coding or decoding another coding isn’t possible within the next 60 seconds! 4. Activation of the video-in-motion function With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance. Version 13.03.2015 RL-PCM3-TF... -
Page 12: Specifications
Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm 6. Technical support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
