JRC JLN-900 Installation And Instruction Manual

Speed log
Hide thumbs
Table of Contents

Advertisement

Quick Links

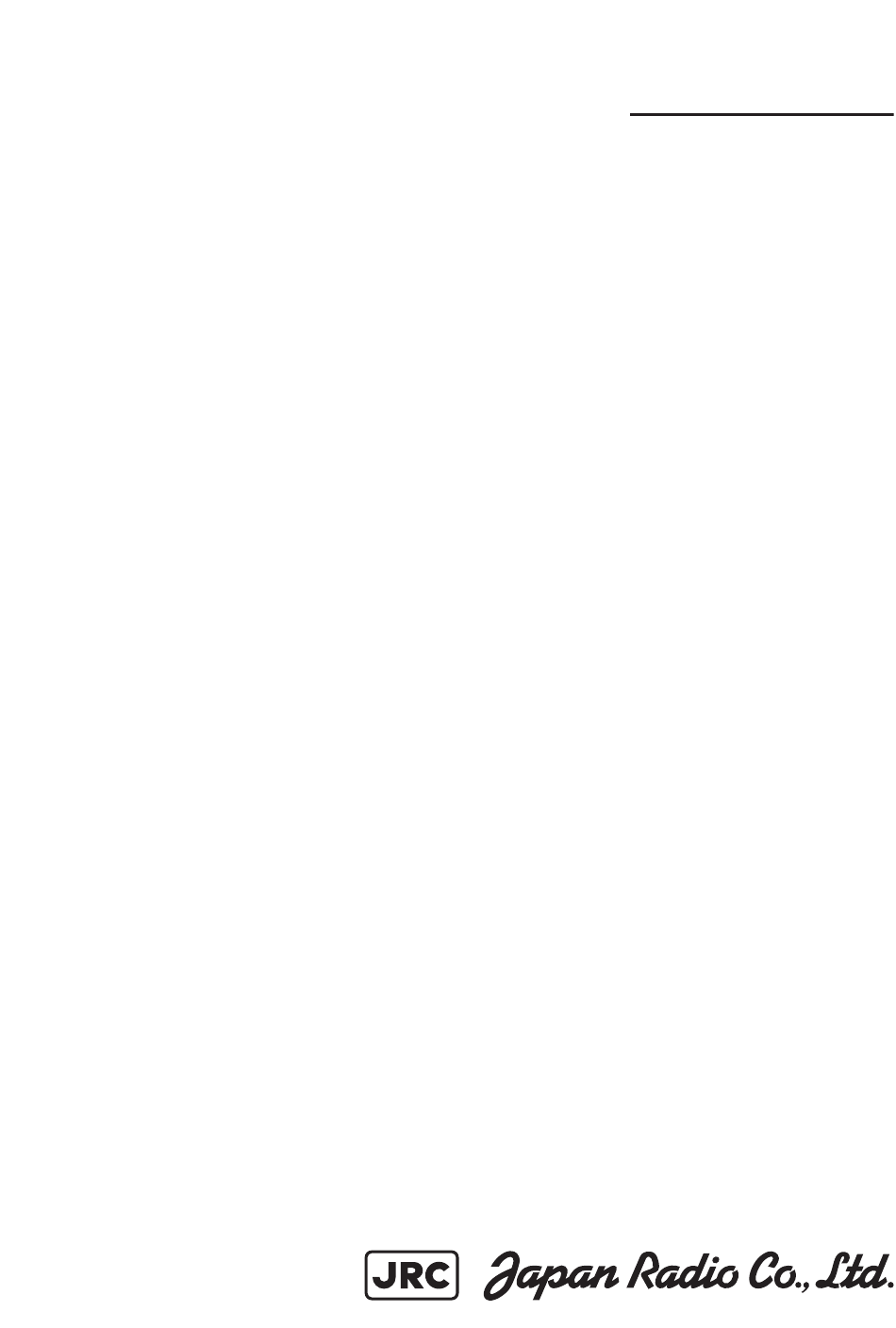

INSTALLATION AND
INSTALLATION AND
INSTRUCTION MANUAL
INSTRUCTION MANUAL
JLN - 900
JLN
900
SPEED LOG
SPEED LOG

Advertisement

Table of Contents
loading

Related Manuals for JRC JLN-900

Summary of Contents for JRC JLN-900

  • Page 1 JLN - 900 SPEED LOG SPEED LOG INSTALLATION AND INSTALLATION AND INSTRUCTION MANUAL INSTRUCTION MANUAL...
  • Page 3 7ZPNA3210...
  • Page 4 Emergency Measures Method of First-Aid Treatment Precautions for First-Aid Treatments Apply artificial respiration to the person who collapsed, minimizing moving as much as possible avoiding risks. Once started, artificial respiration should be continued rhythmically. (1) Refrain from touching the patient carelessly as a result of the accident; the first- aider could suffer from electrical shocks by himself or herself.
  • Page 5 Treatment to Give When the Patient Has a Pulse Beating but Has Ceased to Breathe Performing mouth-to-mouth artificial respiration Bend the patient's face backward until it is directed to look back. (A pillow may be placed under the neck.) Pull up the lower jaw to open up the airway. (To spread the airway) Pinching the patient's nose, breathe deeply and blow your breath into the patient's mouth strongly, with care to close it completely.
  • Page 6 Flow of Cardiopulmonary Resuscitation (CPR) A person is collapsing. A person is collapsing. - Secure the safety of the surrounding area. - Secure the safety of the surrounding area. - Prevent secondary disasters. - Prevent secondary disasters. Listen to the appeal of the Responding Check for response.
  • Page 7 Specific Procedures for Cardiopulmonary Resuscitation (CPR) 1. Check the scene for safety to prevent secondary disasters Are you OK? a) Do not touch the injured or ill person in panic when an accident has occurred. (Doing so may cause electric shock to the first-aiders.) b) Do not panic and be sure to turn off the power.
  • Page 8 6. Cardiopulmonary resuscitation (CPR) (combination of chest compressions and rescue breaths) a) Chest compressions 1) Position of chest compressions • Position the heel of one hand in the center of the chest, approximately between the nipples, and place your other hand on top of the one that is in position. Perform chest compressions Compres s with...
  • Page 9 When to stop cardiopulmonary resuscitation (CPR) a) When the injured or ill person has been handed over to the emergency services b) When the injured or ill person has started moaning or breathing normally, lay him/her on his/her side in a recovery position and wait for the arrival of emergency services.
  • Page 10 10. Electrocardiogram analysis a) The AED automatically analyzes electrocardiograms. Follow the voice prompts of the AED and ensure that nobody is touching the injured or ill person while you are operating the AED. b) On some AED models, you may need to push a button to analyze the heart rhythm.
  • Page 11 Technical Manual and Menu System IEC 61162 / NMEA 0183 User Guide Harbour Acceptance Test Calibration and Sea Acceptance Test JLN-900 System drawings JLN-900 System description, labels and drawings JLN-900Manual - Annex I – Equipment recycling II – Energy saving...
  • Page 12 This page is intentionally blank...
  • Page 13 However, equipment may sometimes fail or work outside its performance specification due to component malfunction or depending on other factors. JRC will not take any responsibility if this equipment is used in such a way that it’s normal or abnormal function causes damage or creates situations that can be dangerous.
  • Page 14 The system measures one-axis relative speed as well as two-axis bottom track speed in a combined transducer. In the JLN-900 the speed log device for STW (Speed Through the Water) is separated from the speed log device for SOG (Speed Over the Ground).
  • Page 15 1. Block diagrams Block diagram for a typical JLN-900system: Bridge Wing Wheelhouse Bridge Wing Docking Display Docking Display Main Display Sig.Distributor Main Display Option Option Master Display Speed Log Display STW Device SOG Device Sig.Processor Engine Control Room Main Display Speed Log Display Option Rate-of -Turn Gyro signal from external source to Sig.Distributor adds docking log functionality.
  • Page 16 Also used as a remote log control unit, “Speed Log Master Display” NWW-82 Main Display Note! The JLN-900 system must consist of at least two NWW-82displays, one marked STW Device and one marked SOG Device. Each of these displays shall be connected according to JLN-900 drawings in this manual.
  • Page 17 JLN-900 Technical Description...

  • Page 18: Table Of Contents

    Contents: PRINCIPLE OF OPERATION SPEED OVER GROUND MEASUREMENT Acoustic transmission/reception Depth measurement 2.2.1 Seek mode 2.2.2 Lock mode Speed measurement 2.3.1 Speckle pattern 2.3.2 Correlation technique 2-10 CFT-780 TRANSDUCER 2-11 NJC-80 SIG.PROCESSOR 2-12 BTU-PCB 2-13 WTU-Assy 2-13 Data transmission / reception 2-13...

  • Page 19: Principle Of Operation

    Principle of operation The JLN-900 Log system is actually two more or less independent log systems, one for sensing speed over ground (SOG), Bottom Track Unit, (BTU), and the other for sensing speed through water (STW), Water Track Unit (WTU – Assy.).

  • Page 20: Depth Measurement

    The beam travels down to the sea bed with a velocity of close to 1500 m/s. This velocity is almost constant for different frequencies. If we have a calibrated depth meter, we may have to compensate for salinity, density and temperature differences. The SOG correlation speed logs operate at 150 kHz, giving a wavelength of 10 mm.

  • Page 21: Speed Measurement

    Depth lock mode 1 2 3 4 5 6 7 8 Transmit pulse Echo signal Sampling Depth lock Speed measurement If the edge comes too late, the pulse duration is lengthened, if it comes too early, the pulse duration is shortened. During cycle 5 and 6 a second pulse is transmitted.
  • Page 22 Bottom track reception Transducer Hull Hull Ahead Piezo-electric elements Acoustic beams from reflecting objects in bottom back to piezo-electric elements Projected bottom area In some spots the reflectors will cancel each other, while in other spots they will support each other.
  • Page 23 sigbel...
  • Page 24 This pattern may also be visualised as a map with valleys and mountains representing the intensity at the position, see figure below. sigbel...
  • Page 25 When the transducer is moved across this pattern the elements measure the intensity along the intersection of this map. Two sensors aligned with the motion may give the following result, see figure below. Figure: two identical signals with delay caused by displacement between sensors. A complex sensor as the CFT-780 Transducer will measure intensity along several intersections of the map.

  • Page 26: Correlation Technique

    and density. A layer may give a signal component from that layer if it has time delay close to the bottom echo, but as long as the main signal comes from the bottom, this will be the main speed source. 1.3.2 Correlation technique Correlation is a method of finding the similarity between signals.

  • Page 27: Transducer

    CFT-780 Transducer The transducer is a highly refined product, containing piezoelectric sensor elements facing the water and containing some matching circuits to achieve good matching to the cable (30 m of cable is supplied as standard, option 40m). 207,51 mm 122,00 mm Transducer di r ecti o n i n centerl i n e of shi p , faci n g forward...

  • Page 28: Sig.processor

    NJC-80 Sig.Processor The Electronics Unit is from the functional point of view divided into two more or less separated units: SOG unit (BTU; T2F, T2R and transmitter integrated on T-M board) and STW unit (WTU-Assy). Block diagram is shown below: 2-12...

  • Page 29: Btu-Pcb

    BTU-PCB The BTU-PCB unit consists of two boards T2F and T2R (one additional T2R in T3+), placed in a rack on the T2-M motherboard which also includes a power supply and an amplifier section for the transmit pulse. T2F has the function to condition and amplify the signals received from the five piezo-electric elements in the transducer, T2R is the main processor board in the BT unit.
  • Page 30 This page is intentionally blank 2-14...
  • Page 31 JLN-900 Technical Specification...
  • Page 32 Abstract: Performance, environmental conditions and power requirements for the JLN-900 speed log system Contents: GENERAL PERFORMANCE Principle of operation 2.1.1 STW (Speed Through the Water = relative speed) 2.1.2 SOG (Speed Over the Ground = true speed) Accuracy of measurement 2.2.1...

  • Page 33: General

    General The technical specification in this section deals with the JLN-900 system, including the Transducer, Electronics unit, Log Processing Unit LPU2 and connected Display units. Operating performance limits like inaccuracies or certain measurement criteria are set by the speed sensors, i.e. the combination Transducer/Electronics unit.

  • Page 34: Functional Limitations

    Travelled distance Error 2 to 10 NM 0.2 % 10 to 50 NM 0.1 % Over 50 NM 0.05 % Functional limitations 2.3.1 STW The STW part of the system is in operation when speed and distance is shown on the master display.

  • Page 35: Environmental Conditions

    All serial interfaces comply with IEC 61162-1 Edition 4.0 2010-11 (NMEA 0183 standard version 4.00). Transmitted sentences are $VDVBW, $VDVLW and proprietary PSAL sentences for JLN-900 speed log. 4.1.1 NQA-4480 Sig.Distributor NQA-4480 is intended to be connected to other systems. It has 23 serial outputs fed from 13 separately buffered drivers.

  • Page 36: Relays, Opto-Couplers And Analogue Outputs

    Two analogue outputs can be individually programmed to provide requested speed information. Calibration The JLN-900 speed log has calibration functions. The speed calibration factors and transducer alignment are entered into the speed log via the Speed Log Master Display, as appropriate for the SOG and STW respectively.

  • Page 37: Power Requirements And Dimensions

    Power requirements and dimensions NJC-80 Sig.Processor Voltage: 220-230 V AC (198 – 253) 100 V AC (90 – 110) optionaly 115 V AC (100 - 126) Frequency: 47.5 - 63 Hz Power consumption: typical 50 W, peak at start up: 300 W Dimensions (WxHxD) 360x480x240 mm Compass safe distance...
  • Page 38 This page is intentionally blank...
  • Page 39 JLN-900 Installation of Transducer and Bottom Parts...
  • Page 40 TABLE OF CONTENTS 1. General ......................3 2. Transducer location requirements ............5 3. Installation of Bottom Parts ..............7 4. Mounting Set Single Bottom Sea Valve (MSSBSV H)......10 5. Mounting Set Double Bottom Sea Valve (MSDBSV H) ....... 27 6.

  • Page 41: General

    Do not cut or modify the Transducer cable! The relative speed measurement operates at a frequency where an undefined cable length may affect performance. JRC takes no responsibility in case of cable modification. General mounting recommendations Use universal thread locking liquid e.g. Loctite® 243 or equal, when mounting Studs PS M16x40 (Part No.
  • Page 42 Transducer "Bottom View" from hull underside Transducer "Profile" Bottom Parts The two versions of Bottom Parts of the system are shown in Fig. 1.1 and Fig. 2.1. A steel flange is welded to a cut-out in the ship’s bottom hull plating. The Bottom Flange, including the Guide Ring, positions the Transducer flush with the underside of the hull.

  • Page 43: Transducer Location Requirements

    10. JLN-900 speed log operates with ultra-sonic frequencies of 145 - 155 kHz, and 3.8 MHz / 4.2 MHz. The Transducer location must be at least 2 metres from any echo sounder transmitters or other similar acoustic devices generating the same type of frequencies.
  • Page 44 13. Water inlets and outlets in the nearby vicinity may disturb the water flow. Therefore the Transducer should be located at least 2 metres forward of such openings. 14. For proper speed measurements the Transducer (sensor elements) must always remain submerged, even at a minimum draught as well as in rough seas.

  • Page 45: Installation Of Bottom Parts

    Installation of Bottom Parts Detailed instructions for installing the different Bottom Parts are given in the following sections. Refer to the section covering your particular application. The Bottom Flange, which shall be welded into the ship’s hull, is the same size whether it is for the single or double Bottom Parts.
  • Page 46 General recommendations for flange joints/connections Further instructions below where mounting of stainless steel screws, nuts and washers is described, it is generally recommended to use Molybdenum sulphide grease (MoS2 grease) on threads in order to obtain smooth engagement of threads and avoid severe friction which occasionally might obstruct or even damage threads.
  • Page 47 Tools/Material recommended for normal installation/service/maintenance. Listed as follows from left to right on above picture: 1 pc 55 mm width spanner/wrench (Transducer upper end) 1 pc 46 mm width spanner/wrench (Connecting Tube nut) 1 pc 40 mm width spanner/wrench (Cable Gland) 2 pcs 24 mm width spanner/wrench (Flange screws/nuts) 1 pc 17 mm width spanner/wrench (Tube Bracket screws) 1 pc 35 mm width adjustable spanner/wrench (Extra)

  • Page 48: Mounting Set Single Bottom Sea Valve (Mssbsv H)

    Mounting Set Single Bottom Sea Valve (MSSBSV H) This mounting set is suitable for ships where an installation site can be found directly in the bottom hull/skin of the ship, i.e. “single bottom”. Before starting installation and assembly check the contents of the kit according to Fig. 1.1. Fig.
  • Page 49 Overall dimensions of the final installation is shown in Fig. 1.2. Fig.1.2 MSSBSV H Main dimensions 4-11...
  • Page 50 Bottom Flange hull mounting procedures The Bottom Flange must first be welded into a hole cut in the ship’s bottom hull. Cut a circular hole (diameter 250mm +10/–0mm) at the selected Transducer position. Hole cut in Ship's Hull Positioning Bottom Flange flush with hull outside Notes: IT IS IMPORTANT that the outer (bottom) surface of the flange is flush with the hull and exactly vertical/perpendicular and horizontal in a flat area of the hull...
  • Page 51 Weld the Bottom Flange into the hole, ensure that it is positioned so that the Sea Valve may be fitted inboard (in desired direction) without obstruction. Welding Bottom Flange in Ship’s Hull The welded joint must be ground smooth and flush with the hull. There must be no sharp edges to interfere with the water flow around the Transducer.
  • Page 52 Fit the Zinc Ring and the Guide Ring into the outside base of the Bottom Flange and secure with the six MFS 10x30 screws, use MoS2 grease on the threads. Tighten the screws to approx. 35Nm. Mounting Zinc Ring and Guide Ring from ship’s outside Screw the eight PS 16x40 Studs into the top side of the Bottom Flange.
  • Page 53 Ensure that the flange surface is clean. Place a gasket, Seal 1, on the flange. Gasket Seal 1 Ensure that both Sea Valve flanges are clean. Fit the Sea Valve over the studs with the Position Indicator pin upwards. - There is no directional requirement for the handwheel. - Mount as space allows and convenience for operation.
  • Page 54 Transducer and Valve Cover Assembling The Assembly consists of: Transducer with cable (30/40 m) Valve Cover with: - Connecting Tube with sealing items. - Tube Bracket with mounting items. Assemble as follows: The Valve Cover shall not yet be mounted on the Sea Valve. Check that the two Lip Seals are correctly mounted inside the top end of the Valve Cover.
  • Page 55 Mount the Nut, Locking Washer/Circlip, Washer and O-Ring onto the Connecting Tube strictly in the order shown below. Mounting Sealing items Sealing items mounted – Ready for Cable insertion Uncoil and lay out the complete length of the Transducer cable to make it available for insertion through the Connecting Tube.
  • Page 56 Cable Gland mounted and cable passed through Remove the Transducer transport protection. Note: From this point and forward in the instruction the Transducer Head must be handled with proper care not to be damaged. Push the Transducer onto the Connecting Tube checking carefully that the Slot in the Connecting Tube is correctly aligned with the Guide Pin in the Transducer.
  • Page 57 Pre-mounting of the Tube Bracket. See picture below! Ensure that the Connecting tube and the contact surface of the Tube brackets are clean. Use MoS2 grease on the Tube brackets M12 Screw threads. Mount the two clamping parts close up against the Cable Gland and slightly tighten the two M6S M12x55 Screws with Spring Washers in order to allow lifting the complete assembly by the Tube Bracket.
  • Page 58 Carefully lift and place the Transducer and Valve Cover assembly on the Sea Valve flange properly centred with Seal 2 and flange holes. Ensure that the Transducer is still maintained fully retracted into the Valve Cover and does not accidently hit any hard surfaces and do not lower the Transducer before the Sea Valve gate is fully opened! Mounting Transducer and Valve Cover assembly on Sea Valve Crosswise loosely secure the Transducer and Valve Cover assembly on the Sea Valve...
  • Page 59 Transducer and Valve Cover mounted - Sea Valve fully opened 4-21...
  • Page 60 Fully open the Sea Valve, approximately 28 full turns counter-clockwise on the handwheel from fully closed to fully open. Gently slide down the Connecting Tube to carefully lower the Transducer into the Sea Valve. A slight resistance might be felt when the Transducer sensor head edge enters the chamfered Guide Ring.
  • Page 61 Loosen the two clamping Screws (M6S M12x55) on the Tube Bracket a few turns to split the two clamping parts and gently slide down the Tube Bracket and rotate as necessary to align the Tube Bracket holes with the two Bracket Bolts.
  • Page 62 Complete the adjustments by aligning the Connection Tube “SB” flat mark as shown in Fig. 1.3 below. Ensure that the Transducer is correctly seated at its lowest position. Verify this by checking the Transducer installation as possible from outside the ship’s hull.
  • Page 63 Fig. 1.3 Aligning Transducer Connecting Tube 4-25...
  • Page 64 Transducer Cable to Sig.Processor NJC-80 The Transducer cable must be installed/laid in a way to allow removal in case of service or replacement of a defective Transducer. Installation on cable trays or ladders should assure that the cable is accessible and not strapped together with other permanently installed cables.

  • Page 65: Mounting Set Double Bottom Sea Valve (Msdbsv H)

    Mounting Set Double Bottom Sea Valve (MSDBSV H) This mounting set is suitable for ships where an installation site can only be found penetrating any tank/double hull arrangement, i.e. “double bottom”, thus the Sea Valve needs to be located above the tank top in an accessible dry space. Before starting installation and assembly check the contents of the kit according to Fig.
  • Page 66 Overall dimensions of the final installation is shown in below Fig. 2.2. Fig. 2.2 MSDBSV H Main dimensions 4-28...
  • Page 67 To complete the installation, the Intermediate Tube and Blanking Plate MUST FIRST BE MANUFACTURED BY THE SHIPYARD and further welded to the Upper Flange DB and the Bottom Flange DB. Table 2.1 Intermediate Tube and Transducer Connecting Tube Lengths Tank Height T Intermediate Transducer (See Fig.
  • Page 68 Intermediate Tube and Blanking Plate Manufacture Use Table 2.1 above to choose the required Intermediate Tube length and the part number and the length of the Transducer Connecting Tube to be ordered or already supplied. Prepare the Intermediate Tube according to the dimensions shown in Fig. 2.3. The material used should be steel, type ISO S355JR or equivalent.
  • Page 69 Prepare the Blanking Plate according to the dimensions shown in Fig. 2.4. The material used should be steel, type ISO S355JR or equivalent. Fig. 2.4 Blanking Plate Blanking Plate material: Sheet steel type ISO S355JR Thickness: Same as Tank top 4-31...
  • Page 70 Bottom Flange DB hull mounting followed by Intermediate Tube, Blanking Plate and Upper Flange DB mounting procedures The Bottom Flange DB must first be welded into a hole cut in the ship’s bottom hull. Cut a circular hole (diameter 250mm +10/ –0mm) at the selected Transducer position. Hole cut in Ship's Hull Positioning Bottom Flange DB flush with hull outside Notes:...
  • Page 71 Weld the Bottom Flange into the hole; ensure that it is positioned so that the Sea Valve may be fitted inboard(in desired direction) without obstruction. Welding Bottom Flange DB in Ship’s Hull The welded joint must be ground smooth and flush with the hull. There must be no sharp edges to interfere with the water flow around the Transducer.
  • Page 72 Insert the prepared Intermediate Tube, with the Upper Flange DB welded on top, into the Blanking Plate and Tank top down into the double bottom to align with the Bottom Flange DB. Intermediate Tube assembly inserted through Tank top 4-34...
  • Page 73 Align the Intermediate Tube vertically and complete welding to the Bottom Flange DB, Tank top/Blanking Plate and Blanking Plate/Intermediate Tube. Completing welding 4-35...
  • Page 74 Fit the Zinc Ring and the Guide Ring into the outside base of the Bottom Flange DB and secure with six MFS 10x30 Screws, use MoS2 grease on the threads. Tighten the screws to approx. 35Nm. Screw the eight PS 16x40 Studs into the top side of the Bottom Flange DB. Use Loctite®...
  • Page 75 Ensure that the flange surface is clean. Place a gasket, Seal 1, on the flange. Gasket Seal 1 Ensure that both Sea Valve flanges are clean. Fit the Sea Valve over the studs with the Position Indicator pin upwards. - There is no directional requirement for the handwheel. - Mount as space allows and convenience for operation.
  • Page 76 Mounting Sea Valve on Upper Flange DB 4-38...
  • Page 77 Transducer and Valve Cover Assembling The Assembly consists of: Transducer with cable (30/40 m) Valve Cover with: - Ship Specific extended Connecting Tube with sealing items. - Tube Bracket with mounting items. Assemble as follows: The Valve Cover shall not yet be mounted on the Sea Valve. Check that the two Lip Seals are correctly mounted inside the top end of the Valve Cover.
  • Page 78 Mount the Nut, Locking Washer/Circlip, Washer and O-ring onto the Connecting Tube strictly in the order shown below. Mounting Sealing items Sealing items mounted – Ready for Cable insertion Uncoil and lay out the complete length of the Transducer cable to make it available for insertion through the Connecting Tube.
  • Page 79 Cable passed through Connecting Tube Remove the Transducer transport protection. Note: From this point and forward in the instruction the Transducer Head must be handled with proper care not to be damaged. Push the Transducer onto the Connecting Tube checking carefully that the Slot in the Connecting Tube is correctly aligned with the Guide Pin in the Transducer.
  • Page 80 Pre-mounting of the Tube Bracket. See picture below! Ensure that the Connecting tube and contact surface of the Tube brakets are clean. Use MoS2 grease on the Tube brackets M12 Screw threads. Mount the two clamping parts close up against the Cable Gland and slightly tighten the two M6S M12x55 Screws with Spring Washers in order to allow lifting the complete assembly by the Tube Bracket.
  • Page 81 Gasket Seal 2 4-43...
  • Page 82 Mind the length of the tube and carefully lift and place the Transducer and Valve Cover assembly on the Sea Valve flange properly centred with Seal 2 and flange holes. Ensure that the Transducer is still maintained fully retracted into the Valve Cover and does not accidently hit any hard surfaces and do not lower the Transducer before the Sea Valve gate is fully opened! Mounting Transducer and Valve Cover assembly on Sea Valve...
  • Page 83 Transducer and Valve Cover mounted - Sea Valve fully opened 4-45...
  • Page 84 Fully open the Sea Valve, approximately 28 full turns counter-clockwise on the handwheel from fully closed to fully open. Gently slide down the Connecting Tube to carefully lower the Transducer into the Sea Valve. A slight resistance might be felt when the Transducer sensor head edge enters the chamfered Guide Ring.
  • Page 85 Loosen the two clamping Screws (M6S M10x60) on the Tube Bracket a few turns to split the two clamping parts and gently slide down the Tube Bracket and rotate as necessary to align the Tube Bracket holes with the two Bracket Bolts. Ensure that the contact area between Connecting tube/Tube bracket is clean, free from any grease or silicone.
  • Page 86 Tube Bracket in its final position with Transducer flush seated. 4-48...
  • Page 87 Complete the adjustments by aligning the Connection Tube “SB” flat mark as shown on Fig. 2.5 below. Ensure that the Transducer is correctly seated at its lowest position. Verify this by checking the Transducer installation from outside the ship’s hull. For future records preferraby documented by photos.
  • Page 88 Fig. 2.5 Aligning Transducer Connecting Tube 4-50...
  • Page 89 Transducer Cable to NJC-80 Sig.Processor The Transducer cable must be installed/laid in a way to allow removal in case of service or replacement of a defective Transducer. Installation on cable trays or ladders should assure that the cable is accessible and not strapped together with other permanently installed cables.

  • Page 90: Recommended Spares And Maintenance

    Recommended spares and maintenance: Transducer replacement: Whenever a Transducer/TRU needs to be replaced and/or or ordered as spare, the following should be considered and specified: Presently installed TRU Serial Number as found inside NJC-80 on the cable termination end transparent screen core connected to the chassi plate ground screw. A yellow shrink tube is marked with black figures, either: 6-XXXX for a TRU with 30 metres cable length...
  • Page 91 To retract the TRU inboard, loosen the two upper M16 nuts on the top off the Tube bracket bolts, do not loosen the Tube Bracket screws (M10) before lifting upp the TRU assembly. TRU vertical position check This can be done without drydocking. If the TRU assembly stops futher down than when it is resting on the Bracket Bolts, a new aligning of the TRU assembly has to be done, e.g.
  • Page 92 This page is intentionally blank 4-54...
  • Page 93 JLN-900 Installation of NJC-80 Sig. Processor...
  • Page 94 Table of Contents 1 Wiring ......................3 2 Installation of Sig.Processor ................ 3 2.1 Selecting location ..................3 3.2. Mechanical mounting ................5 3 Downloading of new Water Track Unit software ........8 4 Downloading new Bottom Track Unit software ......... 8...

  • Page 95: Wiring

    It should be noted that a good transducer installation is of primary importance for achieving good performance of the log system. Selecting correct transducer location shall be done in cooperation with JRC and JRC must approve the selected location!
  • Page 96 The drawing below defines the mechanical dimensions. There must be a flat surface for mounting and it must also be possible to fit the four bolts. Note also that there must be enough room (400 mm free space in front of the unit) for opening the doors to access the electronics inside and that there is room for cables below the cabinet.

  • Page 97: Mechanical Mounting

    3.2. Mechanical mounting The figure below defines the position of the mounting bolts. Drilling: Horr: 301 mm Vert: 421 mm Use four pcs 6 mm steel bolts with fibre or plastic washers for mounting for sealing to maintain water tightness.
  • Page 98 Electrical connections The electrical connection to the Sig.Processor is fairly simple in a normal installation, since the number of cables to be connected in a standard installation is small. All connections to the Sig.Processor and to optional Sig. Distributor shall be made with screened cables! At least four connections shall always be used: An extremely solid connection is to be made between the metal structure of the hull and the grounding screw on the outside of the case.
  • Page 99 The following additional connections shall be made to increase redundancy between STW / SOG speed log parts of the Sig.Processor. This additional connection shall also be made on the JLN-900 to separate power between the STW and SOG part of the Sig.Processor.

  • Page 100: Downloading Of New Water Track Unit Software

    The Water Track Unit – WTU-Assy – in the Sig.Processor is delivered with the software installed in a flash memory. If, however, an update of software would become necessary, please refer to utility program WinFlash, 706080, available from JRC when required. Downloading new Bottom Track Unit software The Bottom Track Unit, T2R circuit board, in the Sig.Processor is delivered with the...
  • Page 101 JLN-900 NQA-4480 Sig.Distributor Technical Manual Incl. installation, setting up and maintenance guidelines...
  • Page 102 Contents Introduction ........................6-3 General ......................... 6-3 Definitions and abbreviations ..................6-3 Principle of operation ....................6-4 Block Diagram ......................6-5 Technical Specification ..................... 6-6 Mechanical installation ...................... 6-7 Dimensions ........................6-7 Cabinet location ......................6-7 Cable inlet with EMC protection and cable support ............ 6-8 Grounding bolt ......................

  • Page 103: Introduction

    1 Introduction 1.1 General This document describes the Sig. Distributor, which serves as an interconnection device between speed logs, NWW-82/85 displays, indicators and other users, such as ARPA, auto- pilots etc. IEC61162/NMEA serial signals and how to connect these cables are described in document “IEC61162/NMEA0183 User Guide”.

  • Page 104: Principle Of Operation

    1.3 Principle of operation The Sig. Distributor distributes data between connected units (instruments etc.) in the speed log system, as well as it transmits speed and depth data to external systems. Serial speed/depth data from one or more speed logs is received by the Sig. Distributor and decoded to generate serial data as well as speed pulse signals.

  • Page 105: Block Diagram

    Intake AC Power Transducer This block diagram shows the general layout of the system. Data is received from the JLN-900 speed log and the ROT (rate of turn) gyro. Also a speed log (STW only) can be connected to the Sig. Distributor. Processing is done in the Sig. Distributor, which also serves as data distribution/interfacing unit.

  • Page 106: Technical Specification

    2 Technical Specification Mechanical specification Height: 500 mm + 60 mm under the cabinet for cable glands Width: 500 mm Depth: 211.5 mm Weight: 19.7 kg Electrical specification Power intake: 100 VAC / 220–230 VAC +/-10% 50-60 Hz Power 150 VA Maximum, typically 15 VA with 3 pcs SD4 connected consumption: or typically 50 VA with a ESD2 and 3 pcs SD4 connected Display power...

  • Page 107: Mechanical Installation

    3 Mechanical installation The Sig. Distributor is mounted in an IP22 drip-proof cabinet. All cables are brought into the case via cable glands in the bottom plate. Steel bolts in the dimension M8 shall be used for mounting. To assure that the cabinet is drip-proof, nylon washers must be used to seal the fixing holes.

  • Page 108: Cable Inlet With Emc Protection And Cable Support

    3.3 Cable inlet with EMC protection and cable support 18 pieces EMC protected tubes with inside diameter 20mm are mounted on the bottom plate. More than one cable can be routed through each tube. On the inside of the cabinet each tube is equipped with a clamp plate for fixation of the cable screen.

  • Page 109: Cabinet Interior

    4.2 Cabinet interior The transformer and three Printed Circuit Boards are mounted on a plate inside the cabinet. The top PCB (CPU-PCB) is covered with a protection plate, in which holes are made for USB, Ethernet and RS232 connectors as well as the red 2 x LED digits. Also the Reboot pushbutton and the DIP switches are accessible without removing the front plate.
  • Page 110 Connect to Log control NMEA "A" input NMEA out 7 Connect to Log control NMEA "B" input The NMEA in 1 connects to the NMEA out terminal 108 and 109 on the JLN-900 speed log Sig.Processor. 4.3.1 NOTE! NMEA in 1 NMEA in 1 is supervised by the Sig.
  • Page 111 Connection to gyro (if docking-log option is used) Term# Function Note NMEA in 3 Connect to NMEA "A" output terminal from gyro NMEA in 3 Connect to NMEA "B" output terminal from gyro Instead of a serial NMEA interface an analogue signal can be used to obtain rate of turn information from the gyro.
  • Page 112 GPS input Term# Function Note NMEA in 8 Connect to GPS NMEA "A" output NMEA in 8 Connect to GPS NMEA "B" output GPS info received is only used for diagnostic purpose. This is an optional but recommended connection with the intention to simplify troubleshooting of the speed log system. Alarm Acknowledge input Term# Function Note...
  • Page 113 NMEA out 10 – 15, connections to NMEA slave displays NWW-82/85 Provisions are made to connect NMEA output and DC power to slave displays. In total, including the Speed log master display, a maximum of 9 (nine) displays can be powered from the Sig.
  • Page 114 NMEA out 3 – 6 and 16 – 23, connections to external NMEA listeners 12 external NMEA listeners can be connected to the Sig. Distributor. Out 3 – 6 share driver and will be directly connected to NMEA in 5 (the redundancy output of speed log1) in case of loss of power or a failure in the Sig.
  • Page 115 Term# Function Note NMEA out 22 Connect to external NMEA listener, NMEA "A" input NMEA out 22 Connect to external NMEA listener, NMEA "B" input Term# Function Note NMEA out 23 Connect to external NMEA listener, NMEA "A" input NMEA out 23 Connect to external NMEA listener, NMEA "B"...
  • Page 116 Connections to relays and opto coupler outputs There are 16 outputs of this kind: 4 switching relays, 4 closing relays and 8 opto couplers. The function of each relay/opto output can be programmed into the Sig. Distributor, using the commands and procedures defined in section 5, "Setting up Procedure". Note! The switching relays K1-K4 are not intended for distance pulse function.
  • Page 117 Opto-couplers Opto# Term# Default signal 28+ 28- Speed through water longitudinal 200 p/nm, WTL 29+ 29- Speed through water longitudinal 200 p/nm, WTL 30+ 30- Speed through water longitudinal 200 p/nm, WTL 31+ 31- Speed through water longitudinal 200 p/nm, WTL 32+ 32- Speed over ground resulting 200 p/nm, BTR 33+ 33-...

  • Page 118: Sig. Distributor Table Of Connections By Numbers - Summary

    4.4 Sig. Distributor Table of connections by numbers – summary 4.4.1 Terminals on I/O PCB: Terminal Name Function Default use In 1 A NMEA in 1 Speed log 1 Main, NOT R1a In 1 B Not to be used In 2 A NMEA in 2 Speed log 2 In 2 B...
  • Page 119 Terminal Name Function Default use In 7 B In 8 A NMEA in 8 GPS for diagnostic purpose / E1/E2 In 8 B In 9 A NMEA in 9 Alarm Ack. In 9 B In (Rx) RS232 In Older Echo Sounder Display RS232 GND (Tx = Channel 0) Out(Tx)
  • Page 120 Terminal Name Function Default use 34 + Opto 7 Speed over ground resulting 200p/nm 34 - 35 + Opto 8 Speed over ground resulting 200p/nm 35 - 36 A Out 1 A NMEA out 1 (redundancy) (Channel 0) 36 B Out 1 B 36 C Not to be used...
  • Page 121 Terminal Name Function Default use 58 - 59 A Out 12 A NMEA out 12 Display (Out 12-13 share driver) (Channel 6) 59 B Out 12 B 60 A Out 13 A NMEA out 13 Display (Out 12-13 share driver) (Channel 6) 60 B Out 13 B...

  • Page 122: Setting Up Procedure

    Terminal Name Function Note 230 VAC 230 VAC Power supply (L1) Fuse F101 115 VAC 100/115 VAC Power supply (L1) Fuse F102 Neutral (L2) Fuse F103 Ground 5 Setting up procedure The Sig. Distributor has an internal menu system that can be accessed via a remote Speed Log Master Display or via the web-interface.
  • Page 123 i.e. step back on the same menu level. Menu button and Enter buttons pressed simultaneously will move up one menu level, except when leaving the “Remote Device menu”. (see Esc-button) Enter: “4th button from left” is used to store changed values or to move to sub-menus. “Minus button”...
  • Page 124 Example of a menu walk in the R0 REMOTE DEV menu: R0 REMOTE DEV CONNECT press[Enter] SYNCHRONISING (counting down from 5) wait 3 seconds R1 DEVICE 1 OF 3 BTU 1 (T2A) press[MENU] R2 DEVICE 2 OF 3 LPU 1 (LP1) press[ENTER] W+XX.X DXXX.X...

  • Page 125: Sig. Distributor Menus

    5.2 Sig. Distributor Menus The function of each menu in the Sig. Distributor is defined below. 5.2.1 Main Menu W+XX.X DXXX BL+XX.X T+X.XX Longitudinal water speed, X.XX or XX.X knots. + = ahead, - =astern W+XX.X: Depth in meters below transducer. XXX or XX.X. DXXX: Longitudinal ground speed, X.XX or XX.X knots.
  • Page 126 OPTO inputs: I10 OPTO IN 1 ALARM MUTE I13 OPTO IN 4 LOG 2 MAIN The Sig. Distributor is equipped with four opto-isolated inputs that can be used to control the system. Each input can be set according to the following list: OPTO inputs Function ALARM MUTE...
  • Page 127 N8 NMEA O 16-23 SPEED+DEPTH Which type of NMEA listeners that are connected to the Sig. Distributor can be set in menu N1 to N8. These settings control which NMEA messages are transmitted on each output. Each NMEA output is filtered according to the filter-file in use, see 6 NMEA filtering. 5.2.6 Menu O, Outputs When pressing the MENU button in the N0 NMEA OUT menu, O0 OUTPUTS is displayed.
  • Page 128 O11.1 OPTO 1 WTL HIGH THAN 0 Use the + button to set the value 8kn O11.1 OPTO 1 WTL HIGH THAN 8 Press the ENTER button to save the value 8kn Each relay and opto output can be programmed to indicate a specific function (see table below). Relay + opto out Function FAIL LOG 1 MAIN...
  • Page 129 5.2.7 Menu S, Settings When pressing the MENU button in the O0 OUTPUTS menu, S0 SETTINGS is displayed. S0 SETTINGS WRITE ACCESS OFF Setting concerning docking-log, NMEA syntax, NMEA delay, BT speed (SOG) input, pulse timers, speed averaging, USB handling and network IP-address can be accessed under this menu.
  • Page 130 To calculate transversal speed of both ends of the ship the Sig. Distributor needs settings and inputs accordingly. SOG speed input, longitudinal and transversal. Rate-Of-Turn input, NMEA ($xxROT) or analogue, setting is made in menu S2. Geometry of the ship referring to the transducer mounting. These settings are made in menu S3 and S4.
  • Page 131 S7 TX DELAY 0 MS This menu controls the interval between serial data messages. The delay can be used to lower data rate for slow receiver devices unable to handle messages back to back. The value is adjustable in 10 ms steps from 0 up to 60-70 ms (default delay is 0 ms). For maximum throughput the value shall be set as low as possible.
  • Page 132 Pulse timer settings Function BTR 100P Resulting SOG 100 pulses / NM BTR 200P Resulting SOG 200 pulses / NM (Default for Pulse timer F) BTR 400P Resulting SOG 400 pulses / NM BTR 500P Resulting SOG 500 pulses / NM Table 3 Pulse timer settings S15, SPD Average S15 SPD AVERAGE...
  • Page 133 Specifies which IP address the Sig. Distributor shall connect to when accessing a service tool. S20, BAM S20 BAM SERIAL DISABLED Enables or disables serial Bridge Alert Management sentences (IEC 62923-1). 5.2.8 Menu T, Test When pressing the MENU button in the S0 SETTINGS menu, T0 TEST is displayed. T0 TEST WRITE ACCESS OFF Incoming NMEA can be simulated using the menu T1.

  • Page 134: Menu Function Summary

    5.3 Menu function summary Name Default setting Function W+XX.XX DXXX.X MAIN BL+XX.X T+X.XX MENU DIAGNOSTICS Displays the number of active diagnostic codes DIAGNOSTICS List of active diagnostic codes INPUTS NMEA IN1 LOG 1 MAIN NMEA IN1 CHECKSUMTEST ON I1.01 OFF or ON NMEA IN1 BAUDRATE 4800 I1.02...
  • Page 135 Name Default setting Function CPU REBOOT DISABLED SW REVISION 704519xx xx = actual revision FW REVISION 704517xx xx = actual revision HW REVISION 704510xx xx = actual revision ACCESS LEVEL ALL USER NMEA OUT NMEA OUT 1 NMEA O 1 BAUDRATE 4800 N1.01 4800 or 38400...
  • Page 136 Name Default setting Function 1 to the stern of the ship [0-999m] DL NMEA VDVBW VDVBW, PSALL or PSALL/VBW STERN * VDVBW FORMAT EXTENDED SHORT/EXTENDED * TX DELAY 0 MS 0-63ms (6bits) BT SPEED INP (For future use) PULSE A WTL 200 P / NM PULSE B WTT 200 P / NM...

  • Page 137: Nmea Filtering

    6 NMEA filtering Inputs are filtered according to a filter-file. The table below describes input filtering when filter-file is in use. The question mark “?” is used as a wildcard and NMEAfilterT_rev.txt can be replaced by any character. NMEA talkers Not filtered messages are starting with: LOG 1 MAIN VD;...

  • Page 138: Sd4 Inverted

    The NMEA messages are routed according to the following default NMEA talkers list if the filter-file is in use. The following table is stored in the filter-file. NMEAfilterT_rev.txt NMEA listeners Transmitted messages are starting with SPEED + DEPTH VDVBW; VDVLW; ##DPT; ??ALR; PSALL; VDHBT; VDALF; VDALC;...
  • Page 139 S3 GEO BOW = enter the distance from the transducer to the bow in meters S4 GEO STERN = enter the distance from the transducer to the stern in meters If there is no rot-gyro input to the Sig. Distributor, then force gyro input to zero by entering the following: S2 DL GYRO INPUT = ANALOGUE o S2.1 DL GYRO INPUT = 0...

  • Page 140: Testing Procedure

    7 Testing Procedure Connected equipment may be tested in two ways: 1) Using ordinary input from the Log Sig.Processor and the ROT gyro (optional), either during normal operation or using internal test modes to produce a known Log ESig.Processor output. For setting these test modes, please consult the operating/installation manuals for the speed log and ROT gyro.

  • Page 141: Service And Maintenance

    8 Service and maintenance Two red 7-segment LED digits on the Sig. Distributor PCB are used to display status. At normal operation the LED digits displays LED code: A service web interface is also available at the Sig. Distributor IP-address, see menu S18 and S19.
  • Page 142 Diagnostic Text Description code * code Hardware error NMEA Out_1, terminal 36 (471)** HW ERR OUT 1 (channel 0) Hardware error NMEA Out_2, terminal 37 (472)** HW ERR OUT 2 (channel 1) Hardware error NMEA Out_3-6, terminal 38-41 (473)** HW ERR OUT 3-6 (channel 2) Hardware error NMEA Out_7, terminal 42 (474)**...

  • Page 143: Service Modes And Dip Switches

    8.2 Service modes and DIP switches A set of 8 DIP switches are located on the CPU-board close to the upper right corner. DIP switches 1-6 shall always be set to: DIP 1 and 5 = ON and DIP 2, 3, 4, and 6 = OFF. Note! DIP position Down = ON.

  • Page 144: Performing Factory Reset

    MODE 1: USB software update may be updated with smaller modifications from an USB memory stick. Sig. Distributor The following softwares are supported for updates from USB: 704517, LPU2 PCB Firmware 704519, LPU2 PCB Software First, prepare a USB memory stick by placing the software update(s) in a directory called “LPU2updates”...

  • Page 145: Usb

    1: LED S2 = OFF (only a few seconds) 2: LED S2 = ON 3: Previous updates will be erased 4: The EPROM will be reset with the factory default menu settings and config. 5: To indicate that the factory reset procedure is finished, LED S2 goes OFF. The factory reset takes totally about 1 minute and 30 seconds.
  • Page 146 Green LEDs 8 green LEDs for internal voltage supervision are located at the upper edge of the CPU board. In normal operation these 8 LEDs shall be lit. 4 red LEDs 4 red LEDs are controlled by the software, LED S1, S2, S3 and S4. In normal operation, S1, S3 and S4 are lit, S2 flickers.

  • Page 147: Annex Wiring Principles

    Annex Wiring principles Cable Dimensions and Standards Make sure that the all cables are approved for marine environment usage. Signal Cables All cables used for signal interconnection of the Speed-log system units shall have a cross section of at least 0.5 mm with a voltage rating of at least 60 volts and be screened, either an aluminium foil screen with an inlaid, blank, stranded conductor, or tinned copper braid should be used.
  • Page 148 Do not use twisted quads or ordinary multi-pole cable, which also has somewhat twisted parts. In a twisted quad the signals in one pair will cross-couple to the other pair, because they are so close, and because one pair has no means of protecting itself from the other pair. In an ordinary multi-pole cable, the noise-cancelling properties are random or unknown i.e.
  • Page 149 Examples of proper tools for crimping end caps, and a strip of end caps Shields Grounding a screen “for safety” or “for good measure” could ruin noise immunity. Forming a ground loop will let noise slip into the system. Note: Shields shall never be connected in both ends of a signal cable, unless expressly noted. The reason for this is that the chassis (bulkhead) potential is never the same in both ends of the cable.
  • Page 150 This page is intentionally blank 6-50...
  • Page 151 JLN-900 Display Technical Description...
  • Page 152 Background ..................7-3 Design, general ................7-4 Display windows ....................7-4 Direction arrows, status indications and backlight ..........7-4 Push buttons ....................7-4 Function, general ................7-4 MODE WINDOW ..................... 7-4 Distance and trip counters ................7-5 Lamp test ......................7-5 Illumination of push buttons ................

  • Page 153: Background

    NMEA universal Display, Technical Description Background The JLN-900 display is a versatile display used primarily as a display to indicate speed, distance and depth. It can also be used to remotely control such equipment, which is not easily accessible or has no user interface, for example a speed log or an interface cabinet.

  • Page 154: Design, General

    Design, general Display windows There are two small and one large display windows on the internal Printed Circuit Board. Depending on type of Display some windows can be partly or completely covered by the front panel foil. The two small windows are positioned above each other in the upper area of the front, from here on called SPEED WINDOW 1 and SPEED WINDOW 2.

  • Page 155: Distance And Trip Counters

    When trip value is presented and the Reset Trip button is pressed for 2 seconds the displayed trip distance value will be reset to zero. Distance and trip counters 8 counters are used for distance run information. DIST Total Distance through WATer (resulting). Note: if no transverse speed information is available, this distance is counted as if transverse speed is 0.00 kn.

  • Page 156: Invalid/Unavailable Information

    continuously. To avoid this, the EL lamp is normally off and will be activated when needed as soon as any push button is pressed and will stay on for 2 minutes after last button operation. Invalid/unavailable information Depending on the NMEA formats invalid data can be indicated by certain status characters or by missing (NULL) data fields.

  • Page 157: Function, Display Versions

    Function, Display versions NWW-82 Main Display Two axis SOG and one axis STW Display with corresponding distances for JLN-900 Speed Log systems. In the top right corner two LEDs will indicate if STW or SOG is displayed. By default SOG will be displayed in both SPEED WINDOWS if available and valid.

  • Page 158: Docking Isplay

    SPEED WINDOWS will only show “---“ to indicate that docking log information is not available. When in STW mode and no transverse speeds are available (as STW from the JLN-900 Speed log) the transverse SPEED WINDOWS and indicating arrows will be blank/unlit.
  • Page 159 As there is no Menu system in the NWW-85 Docking Display the flexibility is somewhat limited compared to the rest of the other Display. Remote dimming ID is default set to number 5 and cannot be changed. 200 p/NM speed output is pulsing the currently displayed SOG or STW speed. External inputs are default set to terminals 7-9 (Ext Dim-) and 8-9 (Ext Dim+).

  • Page 160: Set-Up Of Display

    Menu navigation The Menu system is built up in the same way as in the JLN-900 Speed Logs. Parameters in the local Display always start with an L, e.g. LP for Local Properties. The Menu button is used to step to the next menu or input field.
  • Page 161 5.2.2 Local Properties Menu (LP0 PROPERTIES): When pressing Menu button when in the BASIC Menu, LP0 PROPERTIES displayed. Setting of Local Properties is done under this menu. For example: Display type Select options to display in the MODE WINDOW Start-up DIM External inputs / outputs …...

  • Page 162: Remote Dim Set-Up

    Access is made to the Menu system in the WT Unit. To exit back to Local mode the Esc button shall be used. The Esc button will always step out from the Menu system of the remotely controlled device. Menu and Enter pressed simultaneously is used to step back within the remotely controlled device Menu system.

  • Page 163: External Output/Inputs

    External output/inputs The Display has one output and three inputs. Function of the output and inputs are set with parameters in the Menu system. Terminal Function Pulse output The output can provide +5VDC, maximum 35mA. Function is set in Menu LP6. (IN1) The inputs are activated by connecting them Control Unit...

  • Page 164: Menu Function Summary

    Menu function summary Name Default setting Function Display- LOCAL BASIC MENU PROPERTIES Select properties menu SD4 TYPE Sets type of SD4 display SD4- [ ] SD4-2(Main Display), -3, -4 (factory setting) MODE WINDOW List of information to be displayed in the MODE WINDOW: LP2.01 DIST WATER Total distance counter of STW...
  • Page 165 Name Default setting Function LP2.21 DIAGNOSTICS Display diagnostic codes (PSALW) LP2.22 DOCKINGLOG SOG transversal of the BOW and STERN LP2.23 STANDBY STW Deactivates valid STW NMEA to invalid STW NMEA STARTUP DIM Default brightness after a reset [50%] NEG SPD USE Longitudinal distance counters [OFF] and pulse output off at negative...
  • Page 166 Name Default setting Function REMOTE SETUP Select Remote setup menu SD4 ID ID number between 0-26. Other Displays that have entered this ID in Menu LS3 can remotely DIM this Display DIM OFFSET Offset from remote DIM [0 %] command REMOTE DIM SD4 Displays that have ID numbers corresponding will be...
  • Page 167 Name Default setting Function there are remote systems connected. 7-17...

  • Page 168: Serial Data Message Definitions

    Serial Data message definitions The messages that are used for the Displays are defined in section 11. Please consult this for complete message definitions. Technical data Powering Input voltage: 10 - 32 VDC (12 to 24 VDC nominal) Current: Maximum 200 mA at 15VDC, typical 100mA Power Consumption: Maximum 3 Watt, typical 1.5 Watt Environmental conditions As required by IEC 60945 4...

  • Page 169: Installation And Testing

    Installation and testing Mounting The four attaching holes in the Display are threaded with an M6 thread making it possible to mount the Display either with four M6 screws from the rear or with four M5 screws from the front using nuts on the backside of the console. When the Display is mounted on a flat surface using M5 screws with nylon washers from the front and the provided neoprene gasket is used, a protection class of IP66 is achieved.

  • Page 170: Downloading Of New Software

    Downloading of new software The JLN-900 Display is delivered with the software installed in a flash memory. If, however, an update of software would become necessary, please refer to utility program WinFlash. FAT Testing This FAT Test is done by the factory and shall normally not be used.

  • Page 171: Speed Log Master Display

    Speed Log Master Display General To remotely control the Menu system in speed logs and other equipment in the speed log system, one Display conveniently positioned on the bridge/wheelhouse is used as a remote control. This Display is named Speed Log Master Display and has to be marked in such a way that it is clearly distinguishable from all other Displays connected to the speed log system.

  • Page 172: Positioning Of Labels

    Positioning of labels In every shipment of a JLN-900 Speed Log a set of two labels is included inside the JLN-900 Speed Log main unit electrical cabinet, Sig.Processor. The installation company shall place those labels on or by the Speed Log Master Display.

  • Page 173: Standby Stw

    STW UNIT STANDBY NOT POSSIBLE Display did not establish contact with the STW speed log (Sig.Processor) due to older software in the WTU and/or that the Display is not connected with two-way communication to the JLN-900 Speed Log system. 7-23...

  • Page 174: Suspend Of Remote Equipment

    11 Suspend of remote equipment To establish communication with some remote devices it might be necessary to first suspend serial data transmission from other part of that particular devicet, e.g. the slave T2R PCB (BTUS1, T2B) used for redundancy in a SAL T3+ Speed Log system can only be accessed when the primary T2R PCB (BTU 1, T2A) in the same speed log is suspended.

  • Page 175: Accessories

    12 Accessories The Display can be equipped with a number of optional accessories as presented and specified below. 12.1 BULKHEAD M BOX The BULKHEAD M BOX can be used to mount the NWW-82/85 on any flat surface indoor or outdoor. Mounting is done either from the front using the supplied mounting brackets or from the rear with M5 screws substituting the brackets.

  • Page 176: Extension Board

    12.2 EXTENSION BOARD The EXTENSION BOARD is equipped with two relays, which can be used to obtain 200p/NM speed pulses from two dry/voltage free contacts or for other use in special installation. Menu LP6 is used to choose function of the output. (See 6. Set-up of Display) 12.2.1 Installation The board is installed directly on the rear of the Display.

  • Page 177: Dimmer Unit Ncm-1080

    12.3 Dimmer Unit NCM-1080 é Co n s i l i u m SD4 DIMMER U/N 704120 28,5 The Dimmer Unit is used to dim a Display from a remote position. Menu LP5 EXTERNAL INPUTS shall be set to [DIM] for the dimmer to function correctly.

  • Page 178: Control Unit, Ncm-1180

    12.4 Control Unit, NCM-1180 Test Press 2 sec Reset Trip/ Mode Trip Total é Co n s i l i u m U/N 704130 The Control Unit is used to access the NWW-82 Main Display buttons from a remote position. Menu LP5 EXTERNAL INPUTS shall be set to [SDR2] for the remote control to function correctly (See 6.
  • Page 179 JLN-900 Analog Display Technical Manual...
  • Page 180 Contents INTRODUCTION General Definitions and abbreviations Electrical installation TECHNICAL SPECIFICATION Main Dimensions NWW-828 Analog Display Dimmer Potentiometer connection Dimmer Potentiometer dimension...

  • Page 181: Introduction

    Introduction 1.1 General This document describes the article NWW-828 Analog Display, Speed Indicator Analogue used for the JLN-900 speed logs. The indicator range is: 8 knots astern (-0.8V DC) to 30 knots ahead (+3.0V DC). The Analog Display is based on microprocessor-controlled x-coil system and therefor it needs to be connected to an external power supply (DC 12-24V).

  • Page 182: Technical Specification

    Technical Specification Mechanical specification Panel allocation 148.5 x 148.5 mm Panel cut out: 138.5 x 138.5 mm Depth: 96 mm, whereof 90.5 behind panel front Maximum panel thickness 18 mm Weight: 0.5 Kg Electrical specification Measuring range -8 to 30 kn; 0.1 V DC / knot Power intake: Nominal 12-24 V DC.

  • Page 183: Main Dimensions Nww-828 Analog Display

    2.1 Main Dimensions NWW-828 Analog Display...

  • Page 184: Dimmer Potentiometer Connection

    2.2 Dimmer Potentiometer connection Analog Display...

  • Page 185: Dimmer Potentiometer Dimension

    2.3 Dimmer Potentiometer dimension Dimension drawing Specifications given are subject to changes without prior notice.
  • Page 186 This page is intentionally blank...
  • Page 187 JLN-900 Menu System...
  • Page 188 Jumper settings Boot mode selection with JP5 At reset a boot loading process starts up JLN-900 Speed Log. The log boots from a Flash memory. With a jumper in position JP5, the log boots into the normal operational mode. Without jumper in position JP5, the log boot into the production test program.
  • Page 189 Menu system The menu system, controlled via a remote indicator i.e. the Speed Log Master Display, enables controls and user interaction of the SAL T-series log. The communication commands are described below. Keys available are “MENU”, “ENTER”, “+” and “-”. Normal operation The log in normal operation calculates the speed from the sensor signals.
  • Page 190 Increment setting in current menu Decrement setting in current menu 4.2.1 Menu walk The keys above can change the current position in the menu tree. Pressing "Menu" steps to the next menu on the same level. Pressing "Enter" goes down one level, or if at the lowest level saves current value in non- volatile memory.
  • Page 191 4.2.4 Saving menu content When saving menu content by pressing ENTER, the following menu appears for one second: Aa FUNCTION SAVE OK or, when unsuccessful: Aa FUNCTION SAVE FAIL before returning to the normal menu text. NOTE: A save fail may depend on a busy flash memory and thus further save attempts may resolve the problem.
  • Page 192 Access Name Default Range / info Function Level A230 SOG T2T Failure All Users Diagnostic code (transmitter) T2T test status A240 SOG/ES TX MUTE All Users Diagnostic code external SOG / ES TX Mute (transmitter muted) status CALIBRATION All Users Selects calibration menus BT Speed Cal +0.00%...
  • Page 193 Access Name Default Range / info Function Level unless contact with manufacturer recommends another value. TEST All Users Selects Test menus, intended for service use Simulation 12.00 Simulation All Users Transmit simulated speed value for BTL values from [$VDVBW) and depth ($VDDPT). menus T1-T3 The BT longitudinal value is adjusted with this menu.
  • Page 194 4.2.6 Menu A0 Internal diagnostics The internal diagnostic code list is intended for service use to inspect internal status. Menu A0 displays number of active and acknowledged codes. A0 DIAGNOSTICS 0 ACTIVE 0 ACKN Press ENTER to go into signal list sub menus. The status in the sub menus can be: NORMAL: Normal condition (nothing to report).
  • Page 195 A110 NORMAL ES ALARM TEST 4.2.6.3 Menu A140 Power supply low This menu shows status of the echo sounder Power supply low test (transmitter power). If the code is active it can be acknowledged by pressing ENTER. A140 NORMAL POWER SUPPLY LOW 4.2.6.4 Menu A201 SOG Simulation This menu shows status of the SOG simulation code (active when menus...
  • Page 196 4.2.6.9 Menu A240 SOG / ES TX Mute This menu shows status of the SOG / ES TX Mute signal (active when SOG / ES TX Mute is enabled). If the code is active it can be acknowledged by pressing ENTER. A240 NORMAL SOG/ES TX MUTE 4.2.7 Menu C0 Calibration...
  • Page 197 Only instructed service personnel are allowed to use these menus. Some menus forces test mode resulting in no normal speed to be calculated in the JLN-900 log. Press "+" or "-" to select write or read-only access, ENTER to go into settings sub menus.
  • Page 198 ERROR IN RESTORE 4.2.10.2 Menu M2 CPU RESET By activating this menu the retriggering of the watchdog circuitry is inhibited, and thus a timeout forces the JLN-900 log to reset. M2 CPU Reset Disabled Press + to enable. M2 CPU Reset Enabled Press ENTER to activate.
  • Page 199 ACCESS DENIED 4.2.12 Menu S0 Settings for end user The setting menus are used to change end user parameters for JLN-900 log. Ordinary users may set all menus. Press "+" or "-" to select write or read-only access, ENTER to go into settings sub menus.
  • Page 200 4.2.12.1 Reserved 4.2.12.2 Menu S2 WATC telegram Shall always be set to Disabled. S2 WATC Telegrm Disabled 4.2.12.3 Menu S3 PSALW telegram The transmission of the proprietary PSALW telegram used for internal diagnostic codes is enabled with this menu. Press "+" or "-" to change value.
  • Page 201 S6 Lock Timeout Time=NNN seconds 4.2.12.6 Menu S7 NMEA interval The requested NMEA sentence transmission interval is set with this menu. Press "+" or "-" to change the value. Time resolution is 0.01 seconds. Save selected value by pressing ENTER. S7 NMEA interval Time= R.RR sec 4.2.12.7...
  • Page 202 Menu T1 BT longitudinal Speed simulation WARNING: the log stops to operate when in this mode. This menu sets JLN-900 log in speed and depth simulation mode and the output stream contains NMEA sentences with the bottom track longitudinal speed set to the value on the display.
  • Page 203 Menu T4 Simulation with invalid status WARNING: the log stops to operate when in this mode. This menu sets JLN-900 log in speed and depth simulation mode and the output stream contains NMEA sentences with the depth and speed set to invalid.
  • Page 204 4.2.14.1 Menu V1 System up time System uptime since last power on can be displayed in this menu. First menu shows total uptime (in “days:hours:minutes:seconds” format). From 1000 days the seconds are skipped. By pressing “+” or “-“ the sequence for information is: total uptime, depth track time, bottom track time and water track time.
  • Page 205 0X00000000 4.2.14.5 Menu V5 DEPTH-TRK OVF Count for overflow during depth track. This menu presents the total count for overflow during depth track. NOTE: An increasing value is not an error indication. It indicates that overflow detection is functional. V5 DEPTH-TRK OVF 0X00000000 4.2.14.6 Menu V6 DEPTH-TRK HI...
  • Page 206 VA SPEED-TRK LOW 0X00000000 4.2.14.11 Menu Vb SERIAL-IN-ERR Serial lines decoding errors. This menu presents the total count for decoding errors during serial input data parsing. NOTE: An increasing value may indicate poor connections to other systems. VB SERIAL-IN-ERR 0X00000000 4.2.14.12 Menu Vc SER-0 ERRORS Serial port 0 receive errors.
  • Page 207 4.2.14.18 Menu Vi PHA Cumulative phase roll compensation in Hz. NOTE: Values beyond 100 Hz are indicated by “++.+” or “--.-”. Such large values indicate a potential hardware problem in the RECEIVER PCB. VI PHA ±RR.R ±RR.R ±RR.R ±RR.R ±RR.R 9-21...
  • Page 208 This page is intentionally blank 9-22...
  • Page 209 JLN-900 WATER TRACK Technical Manual including Menu system 10-1...
  • Page 210 Contents Introduction ........................10-3 Basic Functional Description ..................10-3 Definitions and abbreviations ..................10-3 Technical Specification ....................10-4 Performance data ....................... 10-4 Electrical specification ....................10-4 User interfaces ......................10-4 Principle of Operation ....................10-6 Acoustic transmission/reception ................10-6 Signal processing ....................... 10-7 Correlation functions ....................

  • Page 211: Introduction

    WATER TRACK U is an electronic Speed and Distance Measuring Equipment board designed to be used in JLN-900 Speed Log. To create a working log the WATER TRACK U docks to a motherboard within the Sig.Processor where the measuring sensor (transducer), speed indicators and optional repeaters are also connected.

  • Page 212: Technical Specification

    2 Technical Specification 2.1 Performance data Working principle: Acoustic correlation Operating frequencies: Jumping frequencies in the range 3.8 MHz to 4.2 MHz Measuring distance: 130 mm from the surface of the transducer. Speed Range: +/- 50 knots sensed speed Speed Accuracy: Better than 1% or 0.1 knots relative to sensed water flow whichever is the greatest Distance Accuracy:...
  • Page 213 LED (notification): ALERT => LED is on if a diagnostic code is active. The diagnostic code will also be transmitted as an NMEA proprietary telegram ($PSALW). MODE => LED is turned on when measuring in normal mode (PARTICLE). Service connection 1: 9-pole female D-sub serial data connector (RS 232, for additional PC based user interface and software upgrade) Service connection 2:...

  • Page 214: Principle Of Operation

    3 Principle of Operation 3.1 Acoustic transmission/reception 3.1.1 Transmitter The transducer will send two parallel sine waves into the water. During normal operation the forward crystal (TRU cables 1 and 2) will alter between frequencies 3.800 MHz, 3.875 MHz and 3.950 MHz while the astern crystal (TRU cables 4 and 5) will alter between frequencies 4.050 MHz, 4.125 MHz and 4.200 MHz.

  • Page 215: Signal Processing

    Ship’s direction Transducer Hull ½ echo delay time ½ receiver duration Relative water flow Figure 2 Active echo volumes The signals received can be regarded as two times nine layers of ”snapshots” of the flow of particles under the ship. Using correlation technique it is possible to compare how much the signals differ in time.
  • Page 216 Ship´s hull Ship´s Speed Next to hull: Relative water speed = 0 Inside At 1/2 boundary layer: Boundary Relative water speed = 90%U Layer Relative water Speed At boundary layer edge: Relative water speed = 100%U Outside boundary layer (Relative water speed = U) Figure 3 Boundary layer WATER TRACK U measures speed relatively close to the hull, and may thus measure a lower speed.

  • Page 217: Functional Description

    4 Functional Description 4.1 WATER TRACK U user interface Configuration of log functions may be performed using the built-in menu system in WATER TRACK U. The menu system is accessed using the Speed Log Master Display. For status indication ten green and one red LED are also available on the WATER TRACK U board.

  • Page 218: Menu System

    4.2.4 Self-Diagnosis After ten speed measurements, the self-diagnosis is performed. The self-diagnosis checks: Transmitter Receiver Internal signal data paths ADC (Analogue to Digital Converter) High speed (LVDS) interface integrity Transducer External noise Input signal balance If a detected failure persists for at least 14 diagnosis cycles, a diagnostic code will be sent as an NMEA telegram with the proprietary sentence PSALW.
  • Page 219 Mode Esc. Menu Enter Mode: “1st button from left”. Will inform which remote device is connected in remote mode. Esc: “2nd button from left”. The Escape function is used in the “Remote Device menu” to escape from the menu system in a remotely connected unit (E.g. the WATER TRACK U.

  • Page 220: Water Track U Menus

    Below follows an example of a menu walk in the R0 REMOTE DEV menu: R0 REMOTE DEV CONNECT Press Enter to search for remote devices SYNCHRONISING (counting down from 3) Wait 3 seconds while all available devices are found. Press Menu to see next available remote device in list if more than one device is found.
  • Page 221 R nn.nn C nn.nn Cnnn Jnn Dnnn Sn Last measured Raw Speed nn.nn knots. + = ahead, – =astern R nn.nn Filtered raw speed nn.nn knots. + = ahead, – =astern C nn.nn: Correlation value nnn from last raw speed Cnnn: Used mode, Mode nn without cycle jitter (1 Mnn:...
  • Page 222 01D:23H:45M 354 STW SIG. BALANCE When entering menu A2.1 the first entrance in the list is shown. This example code 354 occurred 01 days, 23 hours and 45 minutes after system start (viewable in menu A1) and indicates a problem with the signal balance. Use – or + keys to scroll the list.
  • Page 223 C1.1 DRAUGHT COND. FULL LOAD 0.00% Menu C1.1 sets calibration factor for the selected draught condition. Use – or + key to adjust calibration factor and then Enter to save. C3 MULTI-P CAL. ENABLED Menu C3 is used to store multi point calibration coefficients. Menu must be enabled (change with + if disabled) to set or delete calibration points.
  • Page 224 C3.2 MULTI-P 2 DELETE POINT Confirm with Enter to execute. C4 TRU CALIBRAT. MARKING: TC+123 The transducer (TRU) calibration is set with menu C4. Use – or + keys to adjust the TC value to correspond to the engraved marking on the transducer housing or cable #1 and then press Enter to save.
  • Page 225 M10 ACCESS LEVEL ALL USERS Menu M10 sets the menu system access level. Use + to change to “Authorised expert” and then Enter to set user level. 4.4.6 Menu S, Settings The setting menus are used to change end user parameters for WATER TRACK U. To be able to make changes to sub menus write access must be activated (changed to ON) before menu is entered S0 SETTINGS...
  • Page 226 S9 VBW FORMAT EXTENDED Menu S9 controls the $VDVBW telegram format. EXTENDED (default, newer standard) or SHORT (the older standard) Use – or + to select desired alternative and then Enter to save. S10 VHW TELEGRAM DISABLED Menu S10 enables $VDVHW telegrams. Use –...
  • Page 227 T2 NOISE TEST DISABLED Menu T2 forces the built-in self-diagnosis noise test to be executed and the result is displayed in the NWW-82 Display Mode window. Use + to change menu to ENABLED and then Enter to start the test and go to next sub-level where the test result will be displayed.
  • Page 228 middle value lie in the interval 40 – 120. The middle value shall be stable during the test. The value depends on transducer load. T5 RUN SELFTESTS DISABLED Menu T5 forces all built-in self-diagnostic tests to be executed. The A2 DIAG HISTORY list is cleared at start of test.
  • Page 229 V1 SYSTEM UPTIME 01D:23H:45M Menu V1 shows system uptime since last power on. V2 NOISE LEVELS 654 :: 732 Menu V2 shows average noise level since last measuring sequence (~10 sec). V3 TRU S BALANCE Q MAX= 93% OK Menu V3 shows the most unbalanced TRU signal value during last measuring sequence (~10 sec).

  • Page 230: Menu Function Summary

    4.5 Menu function summary The list is included for fast indexing. Menus in bold font are main menus. Menus with access level “Expert” are not visible in “All Users” mode. “Expert” menus are only for development purpose. Only instructed personnel are intended to use these menus.
  • Page 231 Access Name Default Function Level PARAMETERS Expert Set Parameters menus Measure type Auto Expert Set working mode of the log. Expert Particle mode Enabled Enable/disable PARTICLE as one of the toggling modes during TEST mode Expert Particle mode Desired measuring depth in PARTICLE Depth mode.
  • Page 232 Access Name Default Function Level SETTINGS All Users Select Settings menus All Users Average Low Set averaging time constant in seconds for low speed range Threshold All Users Speed limit between low and high averaging Low-Hi time constant. All Users Average High Set averaging time constant in seconds for high speed range...
  • Page 233 JLN-900 IEC 61162/NMEA 0183 User Guide 11-1...
  • Page 234 Dual Doppler Velocities (--VBW) ............11-13 3.1.12 Water speed and heading (--VHW) ............11-14 3.1.13 Distance travelled through the water and over the ground (--VLW) ..11-14 JLN-900 Proprietary Messages ..............11-15 3.2.1 Log control messages (PSALC).............. 11-15 3.2.2 Log status messages (PSALc)..............11-16 3.2.3...

  • Page 235: Introduction

    General The purpose of this document is to define the most common serial messages that are used by JRC speed logs, voyage data recorders and interface units as well as specify the hardware used for serial communication. The document is intended to be used as a sub-document to operator manuals.

  • Page 236: Hardware

    Hardware The IEC 61162-1/NMEA and IEC 61162-2/NMEA standard specifies serial data links with one talker and multiple listeners, using for each talker a separate signal pair with all listeners opto-isolated. Both standards, IEC 61162-1 and IEC 61162-2, use the same serial data message definition but the hardware has some differences on the receiving side.

  • Page 237: Connection Of Cables For Serial Communication

    Connection of cables for serial communication All cables used for serial communication shall be twisted pair and properly shielded. Maximum recommended cable length is 1000 meter with a minimum cross-section area of 0.5 IEC 61162-1/NMEA uses two wires in one pair connected as signal "A" and "B" between talker and listener.

  • Page 238: Serial Data Message Definitions

    Normal definition of a floating format variable. The integer version length separated into a new definition. floating Variable JRC extension with variable length field. Normal definition of a length short integer format variable. integer Fixed hex Hex field with same number of hexadecimal characters as specified.

  • Page 239: Standard Iec 61162-1 / Nmea 0183

    Standard IEC 61162-1 / NMEA 0183 The implementation of the sentences were according to the IEC 61162-1 (NMEA 0183) standard valid at the time of approval. All outputs will, whenever possible, refer only to messages defined in these documents. Later editions of sentences may have additional fields. The first two characters after the $ sign define the talker identifier.

  • Page 240: Cyclic Alert List (Alc)

    3.1.3 Cyclic alert list (ALC) $--ALC,xx,xx,xx,x.x,AAA,x.x,x.x,x.x,…,AAA,x.x,x.x,x.x*hh <CR><LF> Field # Field Type Definition Note Talker id VD = Log, VR = VDR, SD=Depth Sounder Total no. of sentences used for 01to 99 message Sentence number 01 to 99 Sequential message identifier 00 to 99 Number of alert entries Number of alert entries...
  • Page 241 3.1.4 Alert sentence (--ALF) This sentence is used to report an alert condition and the alert state of a device. 2 3 4 5 6 7 8 9 13 14 15 $--ALF,x,x,x,hhmmss.ss,A,A,A,AAA,x.x,x.x,x.x,x,c-c*hh <CR><LF> Field # Field Type Definition Note Talker id VD = Log, VR = VDR, SD = Depth Sounder No.

  • Page 242: Alarm (--Alr)

    3.1.5 Alarm (--ALR) This sentence is used to report an alarm condition on a device and its current state of acknowledgement. 4 5 6 $--ALR,hhmmss.ss,xxx,A,A,c--c*hh<CR><LF> Field # Field Type Definition Note Name Alarm VD = Log, VR = VDR, SD = Depth Sounder hhmmss.ss Time of alarm condition UTC (Coordinated Universal...

  • Page 243: Heartbeat Supervision Sentence (--Hbt)

    Maximum range scale in use (Fix set to 400 m) Checksum Example: Data from JLN-900 speed log (depth measured to 30.0 m): $VDDPT,30.0,,400* $SDDPT,30.0,,400* 3.1.8 Heartbeat supervision sentence (--HBT) 3 4 5 $--HBT,x.x,A,x*hh<CR><LF>...

  • Page 244: Text Transmission (--Txt)

    3.1.10 Text Transmission (--TXT) $--TXT,xx,xx,xx,c—c*hh<CR><LF> Field # Field Type Definition Note Name Text transmission VD = Log, VR = VDR Total number of sentences Sentence number Text identifier Text message Check sum Example: Text message from SD2-16. VRTXT,01,01,01,START BACKUP* 11-12...

  • Page 245: Dual Doppler Velocities (--Vbw)

    3.1.11 Dual Doppler Velocities (--VBW) Water-referenced and ground-referenced speed data. Note that this sentence has been extended. The speed logs may transmit the shorter version of the sentence with only the first seven fields plus the checksum field. $--VBW,x.x,x.x,A,x.x,x.x,A,x.x,A,x.x,A*hh<CR><LF> Field # Field Type Definition Note...

  • Page 246: Water Speed And Heading (--Vhw)

    3.1.12 Water speed and heading (--VHW) $--VHW,x.x,T,x.x,M,x.x,N,x.x,K*hh<CR><LF> Field # Field Type Definition Note Name VDVHW Water-referenced and ground- referenced speed data Heading Degrees true Heading Degrees magnetic Speed Knots Speed Km/h Check sum 3.1.13 Distance travelled through the water and over the ground (--VLW) Note that this sentence was extended.

  • Page 247: Proprietary Messages

    JLN-900 Proprietary Messages JLN-900 has been allocated the proprietary mnemonic "SAL" by NMEA. This means that any message starting with "$PSAL..." emanates from JRC equipment and that any letters following can be chosen by us. However, to comply with standard NMEA messages, all these messages uses a five-character combination $PSAL- before the first delimiter.

  • Page 248: Log Status Messages (Psalc)

    3.2.1.3 Log control message 4: Active speed units $PSALC,4,ccc,ccc*hh<CR><LF> Field # Field Type Definition Note Name Proprietary SAL Control PSALC Control message type 4: Active speed control Activate WT speed unit VD1: Log 1 VD2: Log 2 VD9: Simulated Log Activate BT speed unit VD1: Log 1 VD2: Log 2...
  • Page 249 3.2.2.2 Log status message 4: Actived speed units $PSALc,4,ccc,ccc*hh<CR><LF> Field # Field Type Definition Note Name Proprietary SAL status PSALc Control message type 4: Activated speed Activated WT speed unit VD1: Log 1 VD2: Log 2 VD9: Simulated Log Activated BT speed unit VD1: Log 1 VD2: Log 2 GP1: GPS...

  • Page 250: Docking Log (Psall)

    3.2.3 Docking log (PSALL) Note this sentence was created when the VBW sentence lacked the capability to present stern speed. The standardised sentence should be used whenever possible. $PSALL,x.x,x.x,x.x,c*hh<CR><LF> Field # Field Type Definition Note Name SAL docking Log PSALL? Longitudinal ground speed knots Transversal ground speed of bow knots...

  • Page 251: Remote Control Message (Psals)

    3.2.5 Remote control message (PSALS) The signal used for remote control of the menu system in remote units is $PSALS. The message includes a signal number, identity and a string data field. $PSALS,i.,c—c,c—c*hh<CR><LF> Field # Field Type Definition Note Name Signal data PSALS Signal number...

  • Page 252: Multiple Units Message (Psalu)

    ** Field 3, identity: Identity Comment Indicator #, # = A to Z, (INA – INZ corresponds to ID 1 - 26) Indicator 4 (# = D), master of the system Sig.Distributor First WT unit in the system Second WT unit in the system Third WT unit in the system First BT unit in the system Second BT unit in the system...
  • Page 253 3.2.6.2 Multiple Units message 2, depth data $PSALU,2,ccc,x.x,x.x,x.x*hh<CR><LF> Field # Field Type Definition Note Name Multiple units message PSALU? Message type 2: Depth data Unit ID VD1: Log 1 VD2: Log 2 SD1: External echosounder VD9: Simulated Log Depth below transducer [m] Null field indicates out of range Distance between transducer and keel or water line[m]...
  • Page 254 This page is intentionally blank 11-22...
  • Page 255 JLN-900 Harbour Acceptance Test 12-1...
  • Page 256 Refer to and note in protocol on page 7! 12-6 Also a set of labels, intended to identify the two speed log device functions in a JLN-900 Speed Log system, is provided and normally found in a plastic bag attached to the Sig.Processor unit. 12-6 Verify that these labels are applied accordingly to each of the two NWW-82 Displays as connected to the Sig.Distributor for the relevant function.

  • Page 257: Scope

    Scope This document describes the Harbour Acceptance Test (HAT) for JLN-900 Speed Log. The HAT for JLN-900 Speed Log tests the Sig.Processor, the transducer (TRU), the optional Sig.Distributor and their interaction. The Sig.Processor contains a Water Track SAL WATER TRACK U unit (which measures speed through the water) and a SAL T2 BTU Bottom Track PCB unit (which measures speed over the ground).

  • Page 258: Test Procedure For Sog

    Refer to and note in protocol on page 12-10! Prior to power-up of the Sig.Processor: Verify serial number and revision of the JLN-900 Speed Log Sig.Processor unit. Verify serial numbers and revisions of the PCBs T2M, T2F and T2R. Verify MAIN PRIMARY transformer plug to be connected according to ship’s...

  • Page 259: Test Procedure For Sig.distributor

    Refer to and note in protocol on page 12-7! A set of labels, intended to identify the Speed Log Master Display function, is provided for all JLN-900 Speed Logs and normally found in a plastic bag attached to the Sig.Processor unit.

  • Page 260: Stw/Sog Device For Jln-900 Speed Log

    Refer to and note in protocol on page 7! Also a set of labels, intended to identify the two speed log device functions in a JLN-900 Speed Log system, is provided and normally found in a plastic bag attached to the Sig.Processor unit.

  • Page 261: Protocol

    10. Protocol Harbour Acceptance Test for JLN-900 Speed Log System; - Summary JLN-900 Speed Log Log Order#: Comment System Owner: Yard: Ship: Type: S/N: Sig.Processor S/N: Sig.Distributor S/N: Indicators: S/N: S/N: S/N: Maste (JLN-900) S/N: Labels applied? Yes / No...
  • Page 262 Harbour Acceptance Test for JLN-900 Speed Log TRU S/N: Order#: Comment Water track DC test [ohm] Type values below 1=>2 1.8–2.6 ohms 4=>5 1.8–2.6 ohms 1=>3 > 20 Mohms 4=>3 > 20 Mohms 1=>4 > 20 Mohms Bottom track DC test...
  • Page 263 Harbour Acceptance Test for JLN-900 Speed Log Water Track Order#: Comment WATER TRACK U PCB U/N: S/N: Unit WATER TRACK U Boot: Flash: software version Sig.Processor Test result EPROM Read/Write SAVE OK Status: 12-9...
  • Page 264 Harbour Acceptance Test for JLN-900 Speed Log Bottom Track Order#: Comment Sig.Processor U/N: S/N: T2M: U/N: S/N: Main transformer 115VAC or 230VAC connection primary Power input voltage L1-L2: Tol: 198... 253 VAC or Main 99…127 VAC Power input frequency L1-L2: Tol: 47...
  • Page 265 Harbour Acceptance Test for JLN-900 Speed Log Sig.Distributor (Optional) Comment Identity Sig.Distributor U/N: NQA-4480 rev: S/N: Sig.Processor Identity CPU-PCB U/N: 704550 rev: S/N: (Menu M10) Identity IO-PCB U/N: 704560 rev: S/N: Identity PSU-PCB U/N: 704570 rev: S/N: Software U/N: 704519 rev:...
  • Page 266 This page is intentionally blank 12-12...
  • Page 267 JLN-900 Calibration and Sea Acceptance Test 13-1...
  • Page 268 JLN-900 Speed Log Calibration and Sea Acceptance test. NJC-80 Sig.Processor, Transducer (TRU) and optional Sig.Distributor Contents Scope 13-3 Equipment needed 13-3 Test procedure for bottom track (ground speed) 13-3 SOG Transducer angle calibration................13-3 3.2 Speed Calibration (SOG) ....................13-4 Test procedure for the STW unit, WTU PCB.

  • Page 269: Scope

    This document describes the Calibration procedures and also serves as a Sea Acceptance Test (SAT) for JLN-900 Speed Log. The SAT for JLN-900 Speed Log is used to verify that the system works, and to calibrate the log. The document contains a list of equipment needed, how to perform the test and a test protocol.

  • Page 270: Speed Calibration (Sog)

    with accurate gyro data, the two-dimensional ”dead reckoning” performed by the navigation computer can be directly compared with other position data and the angular error produced by the log can be calculated directly or indirectly. For most installations. however, this is not possible, and the following procedure is proposed: a) Place the ship on a straight course directly against current and wind so that the true transversal motion of the ship is zero.
  • Page 271 Example: Old value was 0.00%, expected distance was 2.01 NM and the sensed distance was 1.99 NM. The new distance is then: BScale = (1+0/100) x 2.01 / 1.99 =1.0100 Calibration factor =(BScale -1.0) x 100 = +1.00% It should be noted that accuracy of the distance obtained as reference must be verified against defined performance of used reference system.

  • Page 272: Test Procedure For The Stw Unit, Wtu Pcb

    Test procedure for the STW unit, WTU PCB. 4.1 The boundary layer The water moves slower close to the hull than it does further away. The layer with lower speed is called the boundary layer, see figure 1. Ship´s hull Ship´s Speed Next to hull: Relative...

  • Page 273: Tru Calibration

    Speed depending calibration - multiple point calibration factors compensating differences in indicated speed over the whole speed range. Factors can be preset for up to ten different speeds. Speeds between the calibrated points are interpolated automatically. Note: The minimum necessary calibrations to be set are the TRU-calibration plus at least one of the draught calibrations.

  • Page 274: Speed Depending Calibration (Multiple Point Calibration)

    Use the menu system to enter the calibration factor in menu C1.1. Note that the correlation shall be expressed in percentage. 4.2.3 Speed Depending Calibration (Multiple Point Calibration) This type of calibration is meant for vessels needing varying speed compensation in the whole speed register.

  • Page 275: Test Procedure For Optional Sig.distributor

    0183 serial data) should display these values. f) Put the SOG log back to normal operation mode. Final inspection When the system have passed all tests the protocol is signed with signature and date. Send one copy to JRC for reference purposes. 13-9...

  • Page 276: Sat Protocol

    SAT protocol Sea Acceptance Test for JLN-900 Speed Log JLN-900 Speed Log SAT Order#: Comment Owner: Yard: Ship: Type: TRU S/N: Sig.Processor S/N: Sig.Distributor S/N: Gyro S/N: Indicators: S/N: S/N: S/N: S/N: S/N: Calibration (single point calibrations) BT magnitude calibr...
  • Page 277 SAT protocol (copy for JRC) Sea Acceptance Test for JLN-900 Speed Log JLN-900 Speed Log SAT Order#: Comment Owner: Yard: Ship: Type: TRU S/N: Sig.Processor S/N: Sig.Distributor S/N: Gyro S/N: Indicators: S/N: S/N: S/N: S/N: S/N: Calibration (single point calibrations)

  • Page 278: Protocol Multiple Point Calibration

    Protocol Multiple point calibration Sea Acceptance Test for JLN-900 Speed Log Multiple point calibration part JLN-900 Speed Log SAT Order#: Comment Owner: Yard: Ship: Type: TRU S/N: Sig.Processor S/N: Sig.Distributor S/N: Gyro S/N: Indicators: S/N: S/N: S/N: S/N: S/N: Calibration...
  • Page 279 Protocol Multiple point calibration (Copy for JRC) Sea Acceptance Test for JLN-900 Speed Log Multiple point calibration part JLN-900 Speed Log SAT Order#: Comment Owner: Yard: Ship: Type: TRU S/N: Sig.Processor S/N: Sig.Distributor S/N: Gyro S/N: Indicators: S/N: S/N: S/N:...
  • Page 280 This page is intentionally blank 13-14...
  • Page 281 JLN-900 system drawings 14‑1...
  • Page 282 Components JLN-900 SPEED LOG Table of Components Mass Name Type Quantity Remark 1Unit Standard Components SIGANAL PROCESSOR NJC-80 SIGANAL DISTRIBUTOR NQA-4480 SEA VALVE NKF-980 125k MAIN DISPLAY NWW-82 0.6k for primary STW MAIN DISPLAY NWW-82 0.6k for primary SOG DISTANCE DISPLAY NWW-82 0.6k...
  • Page 288 Dimensions LPU2 ELC: 500 x 500 x 212mm (H x W x D) + 60 mm under the LPU2 for cable gland. NOTE: When mounting, reserve a space of at least 150 mm under the cabinet for cable routing. Cabinet location The LPU2 cabinet shall be vertically mounted in a location where necessary cabling from bridge equipment can be brought to the unit, preferably on the bridge or a space close to the bridge.
  • Page 289 CFT-780-4 TRANSDUCER(40m) 14‑9...
  • Page 293 DISPLAY 14‑13...
  • Page 295 JLN-900 Description,labels and drawings 15-1...
  • Page 296 900 Speed Log system. Regulations A complete JLN-900 Speed Log system consists of two separate speed log devices for measuring STW (Speed Through Water) and SOG (Speed Over Ground). The two devices are named “JLN-900 Speed Log STW DEVICE” and “JLN-900 Speed Log SOG DEVICE”.
  • Page 297 NWW-82 Display is a mandatory part of the SOG DEVICE. The two displays must be marked with labels to clearly indicate to what device they belong. In every shipment of a JLN-900 Speed Log Sig.Processor a set of four labels is included. The labels should be placed as follows: Speed Log Master Display Place it on the panel close to the Speed Log Master Display.
  • Page 298 JLN-900 Speed Log illustration The picture below illustrates the separation of the two devices JLN-900 Speed Log STW and JLN-900 Speed Log SOG. The dashed double directional arrows indicate non-critical, independent information exchange. SOG DEVICE STW DEVICE NWW-82 NWW-82 NQA-4480 Sig.Distributor...
  • Page 299 Electrical power supply The STW Device and the SOG Device should be powered from different sources. The exact connection is dependent on class requirements. The below figure is an example from DNV, C100 Main Electrical Power Supply: Main Switchboard Emergency Switchboard Local Distribution Panel Change Over Switch Nav equipment...
  • Page 300 This page is intentionally blank 15-6...
  • Page 301 Annex JLN-900 Speed Log System Manual 16-1...
  • Page 302 Annex Table of contents ANNEX I – EQUIPMENT RECYCLING ................. 3 ANNEX II – ENERGY SAVING ..................5 16-2...
  • Page 303 ANNEX I – EQUIPMENT RECYCLING RMRS RULES FOR EQUIPMENT UTILIZATION Following actions to be taken into consideration by the owner according to the paragraph 219 of the “Technical Regulations on the Safety of Sea Transport Items”: “The safety of decommissioned or subject to utilization sea transport infrastructure item shall be ensured by the owner of such item or operating organization.
  • Page 304 The TRU Unit, with its integrated cable, should be dismounted and utilized/recycled as intended or possibly retained for any future upgrade or installation of a replacement system. All Speed Log components (as above) shall be packed into proper cartons/containers for transportation to the utilization company. The utilization company considers itself how to utilize and recycle the Speed Log components according to Russian Federation rules for utilization of such components and paragraph 219 of the “Technical...
  • Page 305 ANNEX II – ENERGY SAVING Technical Regulations on the Safety of Sea Transport Items”, approved by the RF “ Government Order No. 620 of 12 August 2010, declare following in Paragraph 6: “Designers, builders and manufacturers of sea transport and infrastructure items shall ensure the energy efficiency of such items”.
  • Page 306 This page is intentionally blank 16-6...
  • Page 308 Not use the asbestos For further information,contact: URL Head office : http://www.jrc.co.jp/eng/ Marine Service Department 1-7-32 Tatsumi, Koto-ku, Tokyo 135-0053, Japan 　　　　　　　　　　　: tmsc@jrc.co.jp e - mail 　　　　　　　　　　　: +81-50-3786-9201 One - call ISO 9001, ISO 14001 Certified CODE No.7ZPNA3210 MAR. 2020 Edition 1...
