BK5250 - Introduction

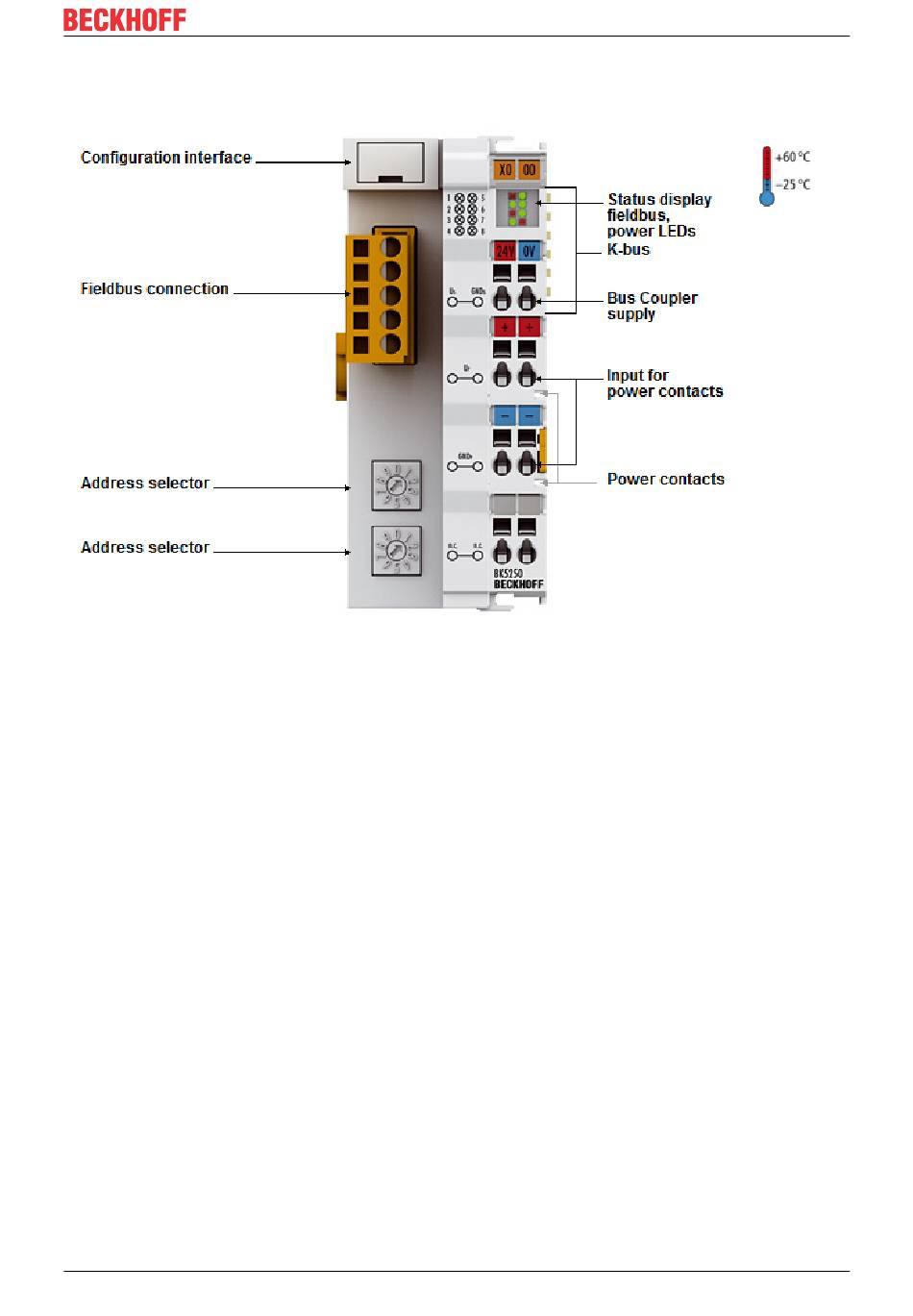

Fig. 2: BK5250 – Compact Bus Coupler for DeviceNet
The Compact Bus Coupler BK5250 for DeviceNet extends the Beckhoff Bus Terminal system by a cost-
optimized version in a compact housing. Up to 64 Bus Terminals are supported; with the Terminal Bus
Extension, up to 255 Bus Terminals can be connected. The DeviceNet Bus Coupler offers automatic baud
rate detection up to 500 kbaud and two address selection switches for address assignment. A 5-pin
connector for the fieldbus connection is included in the scope of supply. Optionally, the ZS1052-3000
connector with integrated terminating resistor can be connected.
