5.3

Configuration of the Bus Coupler

Set all the DIP switches to the desired configuration before you switch on the Bus Coupler. Switches 7 and 8
are used to set the baud rate, as shown in the following table.

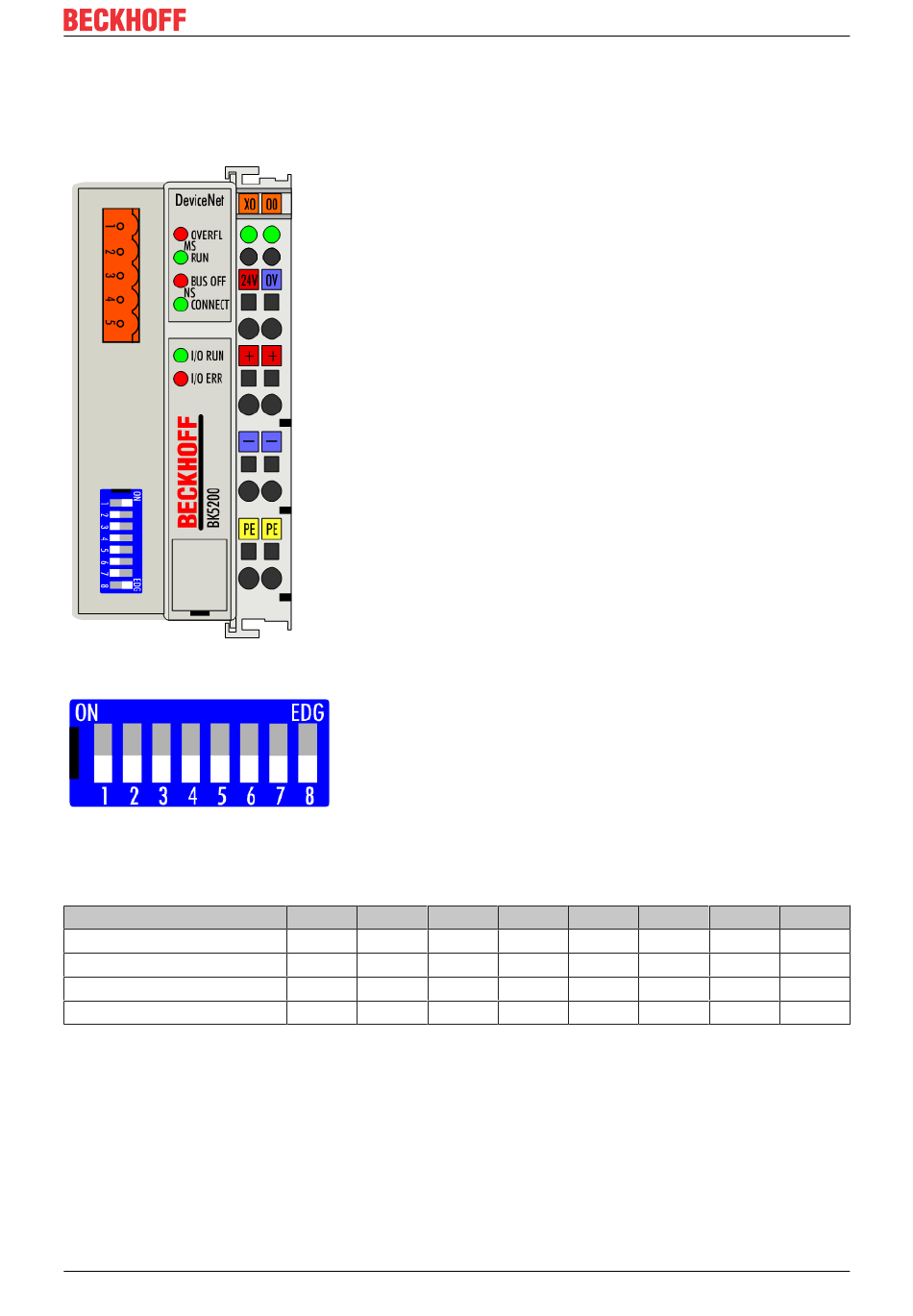

Fig. 22: BK5200 - Configuration
Fig. 23: DIP switch
Setting the baud rate
Setting baud rates
125 kbaud
250 kbaud
500 kbaud
(Default) 125 kbaud
Setting the MAC ID
The MAC ID is set with DIP switches 1 to 6: Switch 1 is the lowest value bit 20 and switch 6 the highest value
bit 25. The bit is set when the switch is ON.
You can select the MAC ID from the range 0 to 63.
BK52x0 and LC5200
1 2 3
Version: 2.0.0
Parameterization and Commissioning
4 5 6 7 8
off off
on off
off on
on on
