Bus cable lengths and pin assignment

The maximum length of cable which can be used depends on the selected baud rate. The following lengths
should be understood as the total length of the main line plus any drop lines.
Baud rate
500 kbit/s
250 kbit/s
125 kbit/s

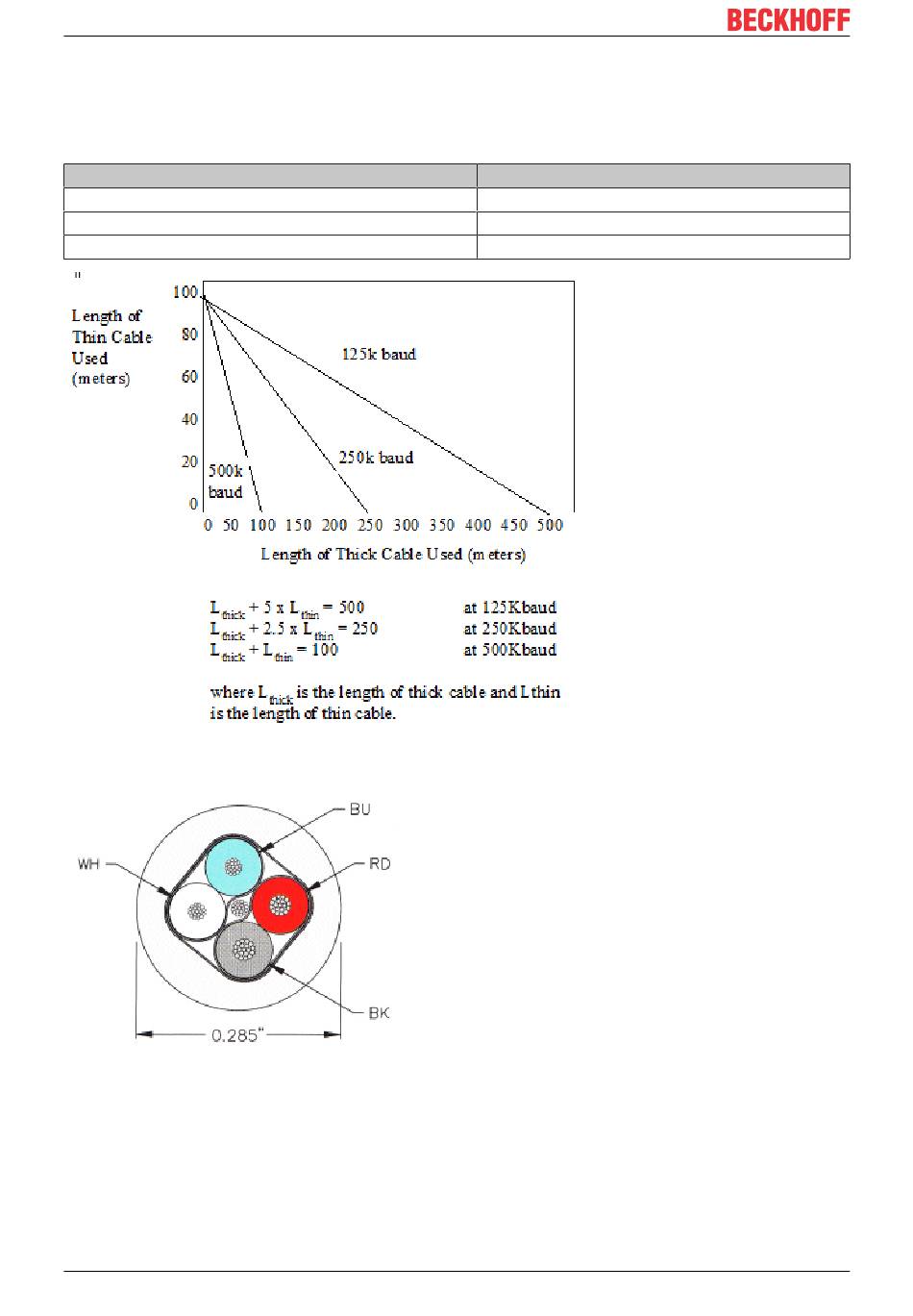

Fig. 15: DeviceNet – Baud rate and bus length
Fig. 16: Layout of the ZB5200 CAN/DeviceNet cable
The cable consists of two shielded wire pairs. One pair carries out the transmission. The second pair
distributes the supply voltage.
26
Bus length
< 100 m
< 250 m
< 500 m
