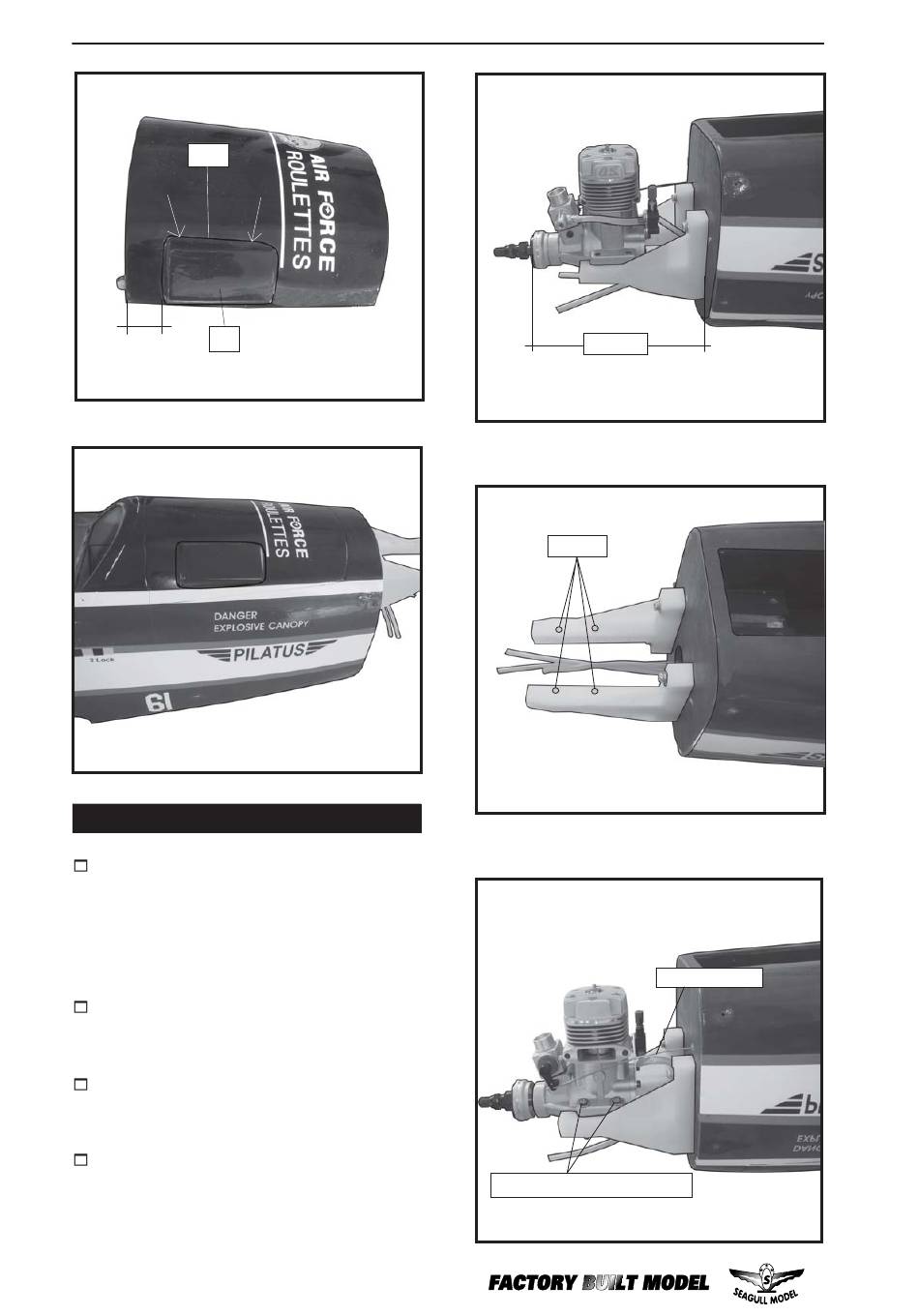

MOUNTING THE ENGINE.

1) Install the pushrod housing through the
predrilled hole in the firewall and into the servo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Make a Z-Bend 1/4" from one end of the plain
wire pushrod.
2) Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
3) When you are satisfied with the align-
ment, mark the locations of the engine
mounting.
4) Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.
12
Instruction Manual.
135mm.
4.2mm.
Pushrod wire.
Machine Screw M4x30mm.
