Masking tape.

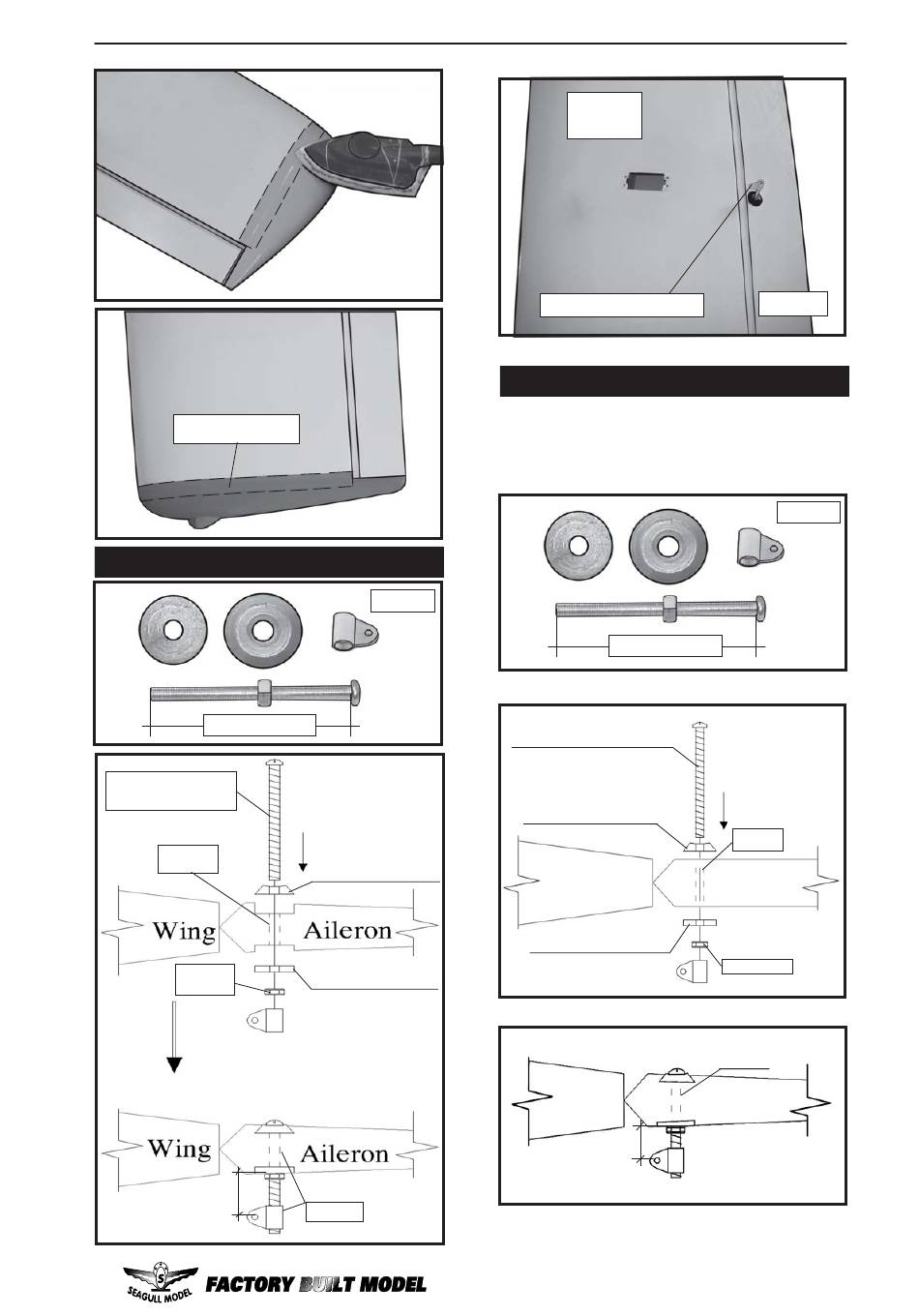

AILERON CONTROL HORN.
M3x35mm
CONTROL HORN
M3 SCREW.
Epoxy.
M3 LOCK
.
18mm
www.seagullmodels.com
2 sets.
.
.
ALUMINUM WASHER
.
ALUMINUM WASHER
Epoxy.
Wing
bottom.
Aileron control horn
ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
3mmx35mm.
CONTROL HORN M3
.
ALUMINUM WASHER
Horizontal
Stabilizer.
.
ALUMINUM WASHER
Horizontal
Stabilizer.
14mm
.
Aileron.
.
2 sets.
Epoxy.
Elevator.
.
M3 LOCK NUT
EPOXY.
Elevator.
5
