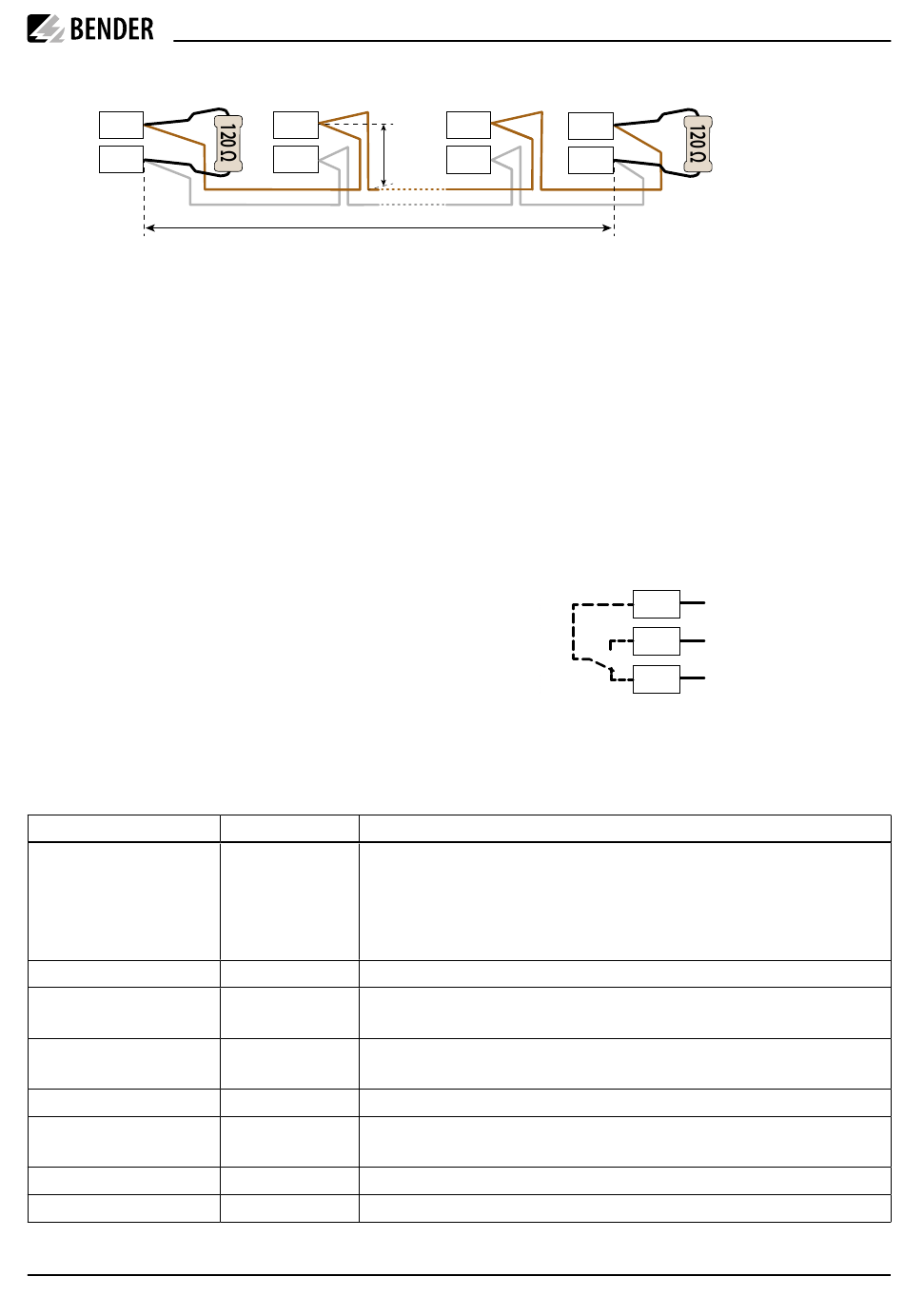

3.2.1.2 RS-485 interface

A
B
Specification
The RS-485 specification restricts the cable
length to 1200 m and requires a daisy chain
connection.
A twisted-pair, shielded cable must be used as
bus cable. For example, cable type J-Y(St)Y
n x 2 x 0.8 mm² is suitable. The shield must be
connected to PE at one end.

3.2.1.3 Relay

The terminals 11,14,12 are relay outputs. The
following settings can be made via the Modbus
RTU interface:
i
Caution! High contact currents damage
the hard gold plating of the relay con-
tacts. Damaged contacts prevent the re-
lay from switching correctly at low con-
tact currents.
Function
Relay mode
Test
Main alarm
Prewarning
Device error
Connection fault
system
Connection fault earth
C exceeded
e
A
B
max. 1 m
max. 1200 m
State Description
NO principle | The relay mode can be adapted to the application:
• N/C NC operation of the contacts 11-14-12. In fault-free condition,
NC principle
the alarm relay is energised.
• N/O NO operation of the contacts 11-14-12. In fault-free condition,
the alarm relay is de-energised.
on* | off This parameter determines whether the relay is actuated during a test
on* | off The relay switches when the measured value falls below the response value of the main
alarm AL2
on | off* The relay switches when the measured value falls below the response value of the prewarn-
ing AL1
on* | off The relay switches if a device error exists
on* | off The relay switches when there is a system connection fault (L1, L2).
on* | off The relay switches when there is a connection fault to earth (E, KE).
on* | off The relay switches when the permissible system leakage capacitance C
* Factory setting
A
A
B B
Termination
The bus cable must be terminated at both ends
with resistors (120 Ω, > 0.25 W). The terminat-
ing resistors are connected in parallel to the
terminals A and B.
i
If there are more than 16 bus devices, the
interface must be designed to be shock-
proof, because the maximum permissible
total leakage current of 0.5 mA is exceed-
ed.
