Press [ESC] to restart the module and force all drivers to be loaded. The module will use the
configuration stored in the module's flash memory to configure the module.
4.2.4 Network Menu

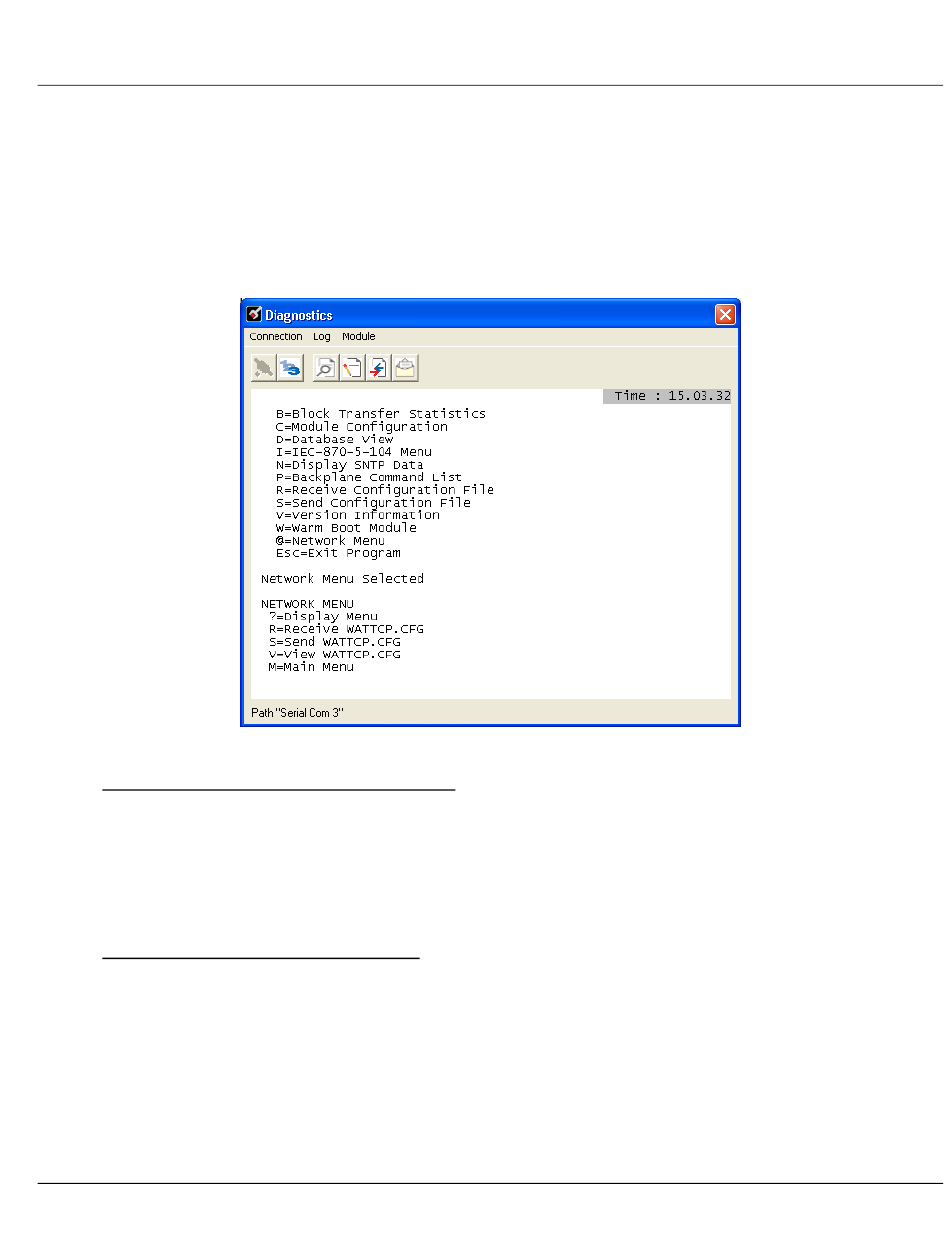

From the Main menu press [@] to display the Network menu screen. The Network menu
allows you to send, receive, and view the WATTCP.CFG file that contains the IP and
module addresses, and other network information.
Transferring WATTCP.CFG to the Module
Press [R] to transfer a new WATTCP.CFG file from the PC to the module. Use this
command to change the network configuration for the module (for example, the module's IP
address).
Press [Y] to confirm the file transfer, and then follow the instructions on the computer screen
to complete the file transfer process.
Transferring WATTCP.CFG to the PC
Press [S] to transfer the WATTCP.CFG file from the module to your PC.
Press [Y] to confirm the file transfer, and then follow the instructions on the computer screen
to complete the file transfer process.
After the file has been successfully transferred, you can open and edit the file to change the
module's network configuration.
