User Manual

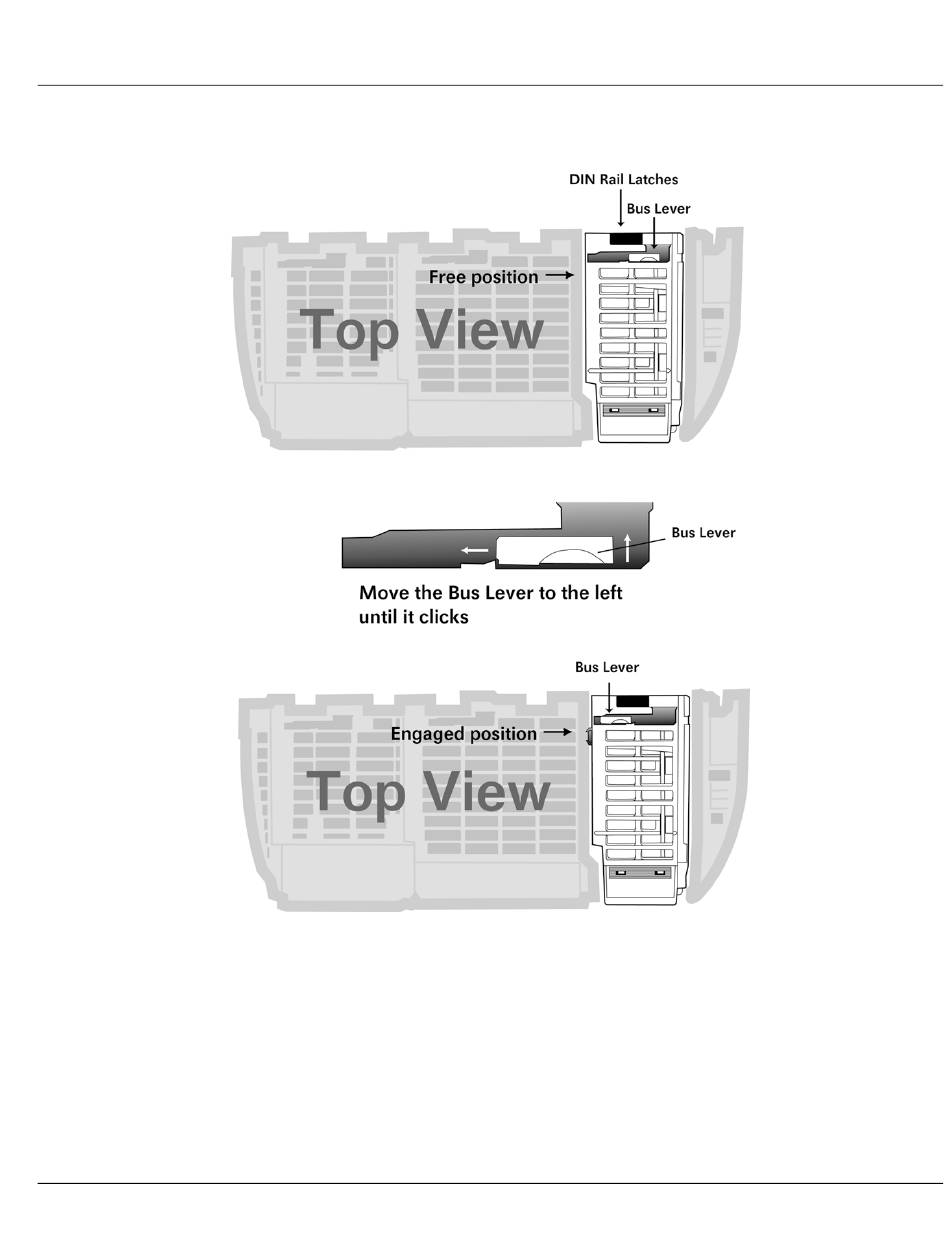

Push the module's bus lever back slightly to clear the positioning tab and move it firmly
3
to the left until it clicks. Ensure that it is locked firmly in place.
4
Close all DIN-rail latches.
Page 12 of 86
MVI69-GEC ♦ CompactLogix or MicroLogix Platform
ProSoft Technology, Inc.
February 18, 2014
