Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500 (MicroLogix)
programming software

Rockwell Automation RSLinx communication software
 ®
Pentium II 450 MHz minimum. Pentium III 733 MHz (or better) recommended

Supported operating systems:
Microsoft Windows XP Professional with Service Pack 1 or 2
o
Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3
o
Microsoft Windows Server 2003
o

128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

100 Mbytes of free hard disk space (or more based on application requirements)
256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024  768

recommended)

CD-ROM drive

HyperTerminal or other terminal emulator program capable of file transfers using
Ymodem protocol.
NOTE: MVI69/PS69 modules will not work with CompactLogix L4x processors using RSLogix 5000 v17. All other
processor combinations and RSLogix versions will work correctly.
1.2

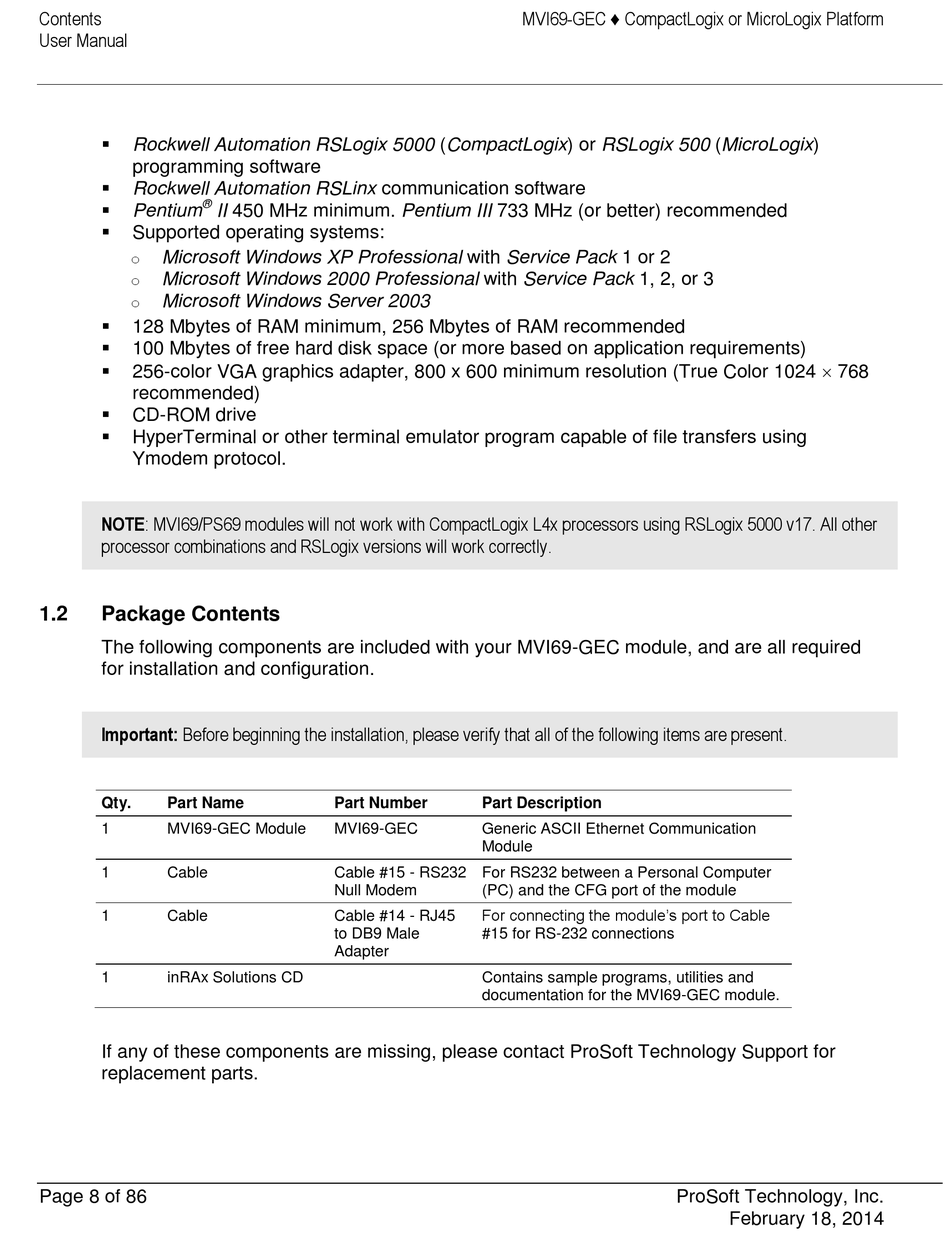

Package Contents

The following components are included with your MVI69-GEC module, and are all required
for installation and configuration.
Important: Before beginning the installation, please verify that all of the following items are present.
Qty. Part Name
1 MVI69-GEC Module
1 Cable
1 Cable
1 inRAx Solutions CD
If any of these components are missing, please contact ProSoft Technology Support for
replacement parts.
Page 8 of 86
Part Number Part Description
MVI69-GEC Generic ASCII Ethernet Communication
Module
Cable #15 - RS232 For RS232 between a Personal Computer
Null Modem (PC) and the CFG port of the module
For connecting the module's port to Cable
Cable #14 - RJ45
#15 for RS-232 connections
to DB9 Male
Adapter
Contains sample programs, utilities and
documentation for the MVI69-GEC module.
