MVI69-GEC ♦ CompactLogix or MicroLogix Platform

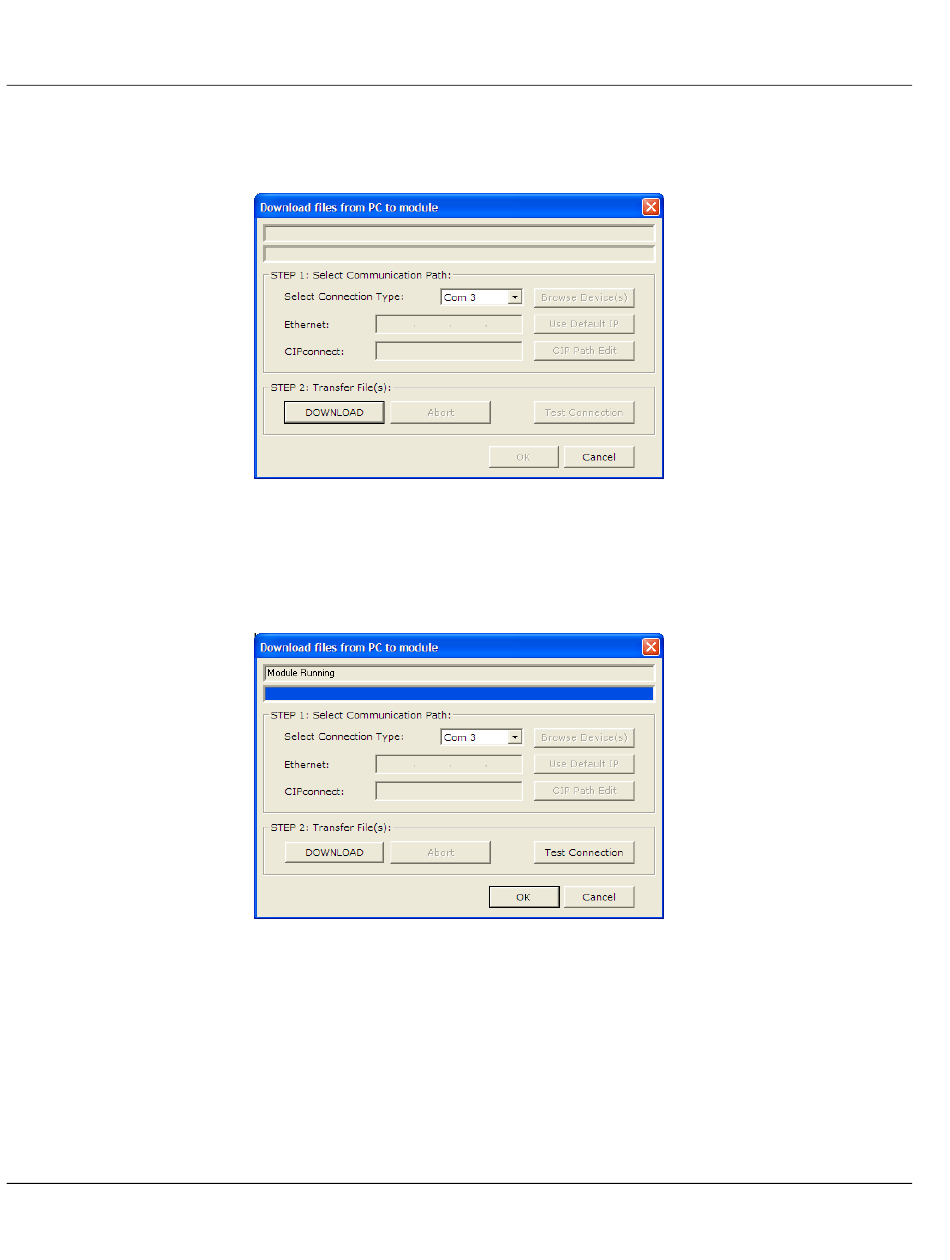

2 From the right-click shortcut menu, choose D
program scans your PC for a valid com port (this may take a few seconds). When PCB
finds a valid COM port, it opens the Download dialog box.
3 Choose the COM port to use from the dropdown list, and then click the D
button.
The module performs a platform check to read and load its new settings. When the
platform check is complete, the status bar in the Download dialog box displays the
message Module Running.
ProSoft Technology, Inc.
February 18, 2014
PC
OWNLOAD FROM TO
Contents
User Manual
D . The
EVICE
OWNLOAD
