MVI69-GEC ♦ CompactLogix or MicroLogix Platform

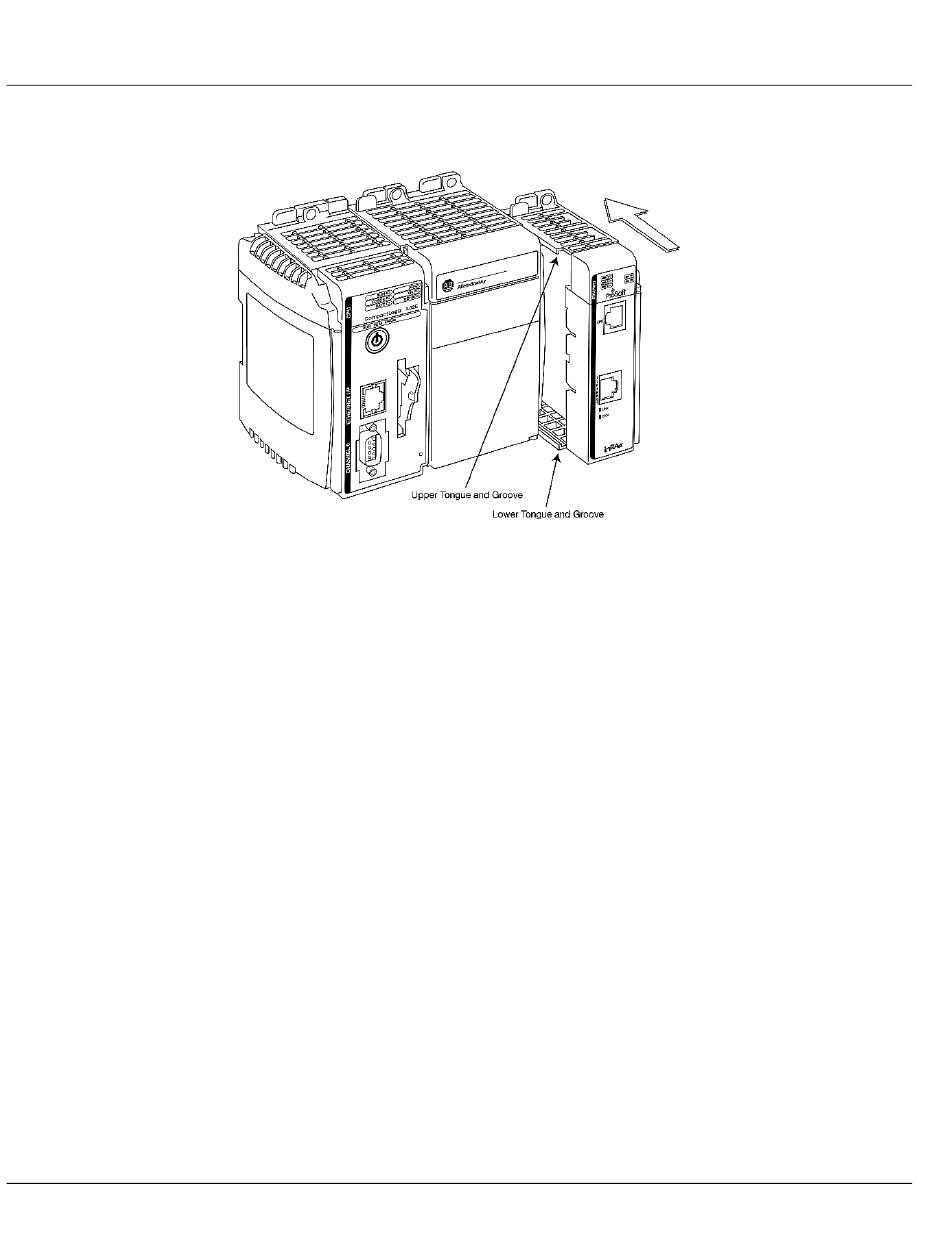

1 Align the module using the upper and lower tongue-and-groove slots with the adjacent
module and slide forward in the direction of the arrow.
2 Move the module back along the tongue-and-groove slots until the bus connectors on
the MVI69 module and the adjacent module line up with each other.
