Equipment

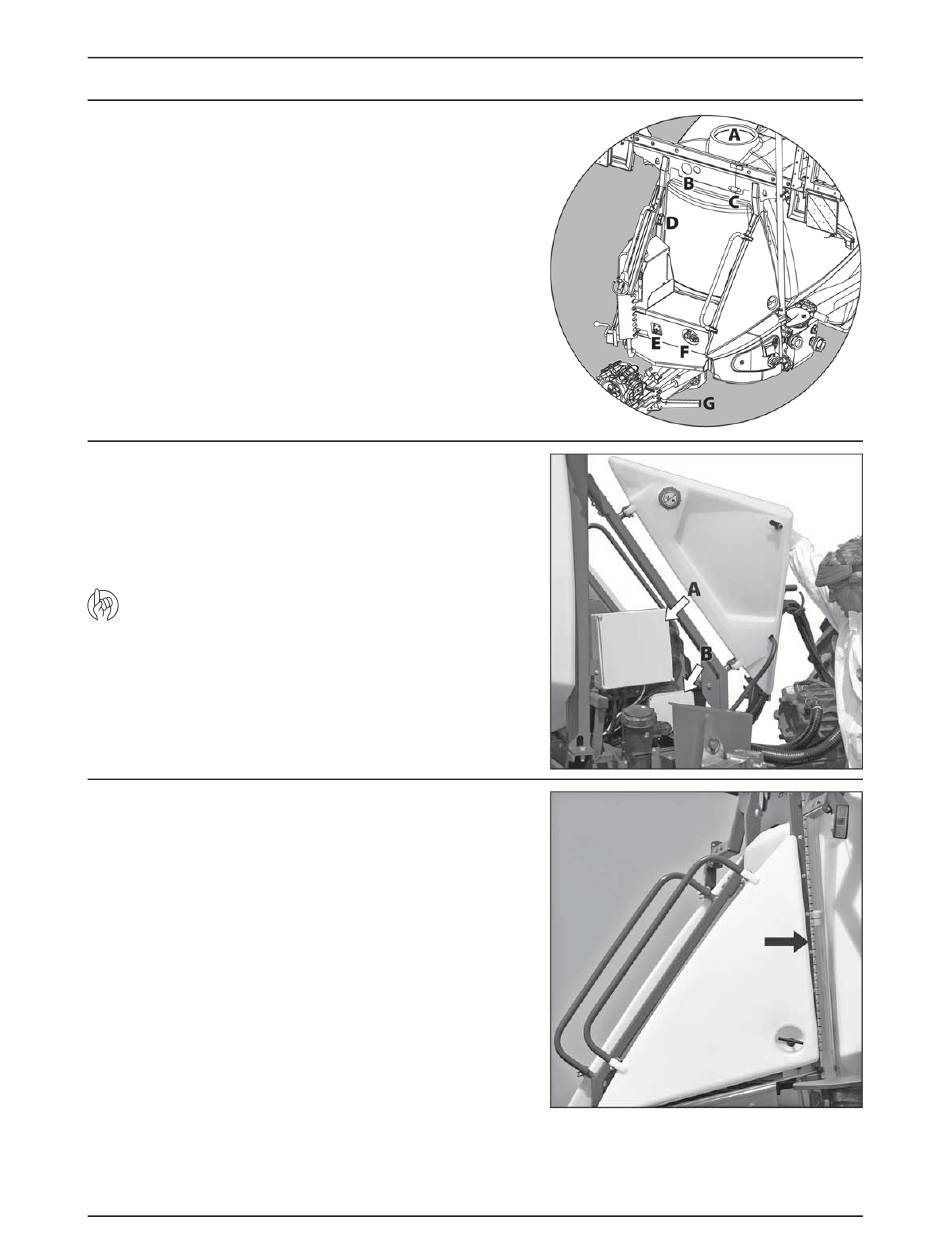

Platform

To get access to the platform, lift and swing the step (G) on the drawbar
out until it clicks into locked out-position. To retract step, then lift and
swing step to retracted locked in-position.
The pressure regulation valve (E) and the Agitation valve (F) are situated
in front of the platform floor. The platform gives access to the clean
water tank lid (D), the main tank lid (A). Also the main tank drain valve (C)
can be operated from the platform. The pressure gauge (B) and
EasyClean clogging indicator (B) are visible at the top of the platform.
By removing the platform floor, the valve components are accessible.

Right side cover

The right side cover is opened by turning the handle in the lower rear
corner of the cover and lifting the cover up. Lifting the right side cover
gives access to the Jobcom (A) and the box for work and road lights (B).
The clean water tank is integrated to the side cover and is filled from the
platform when right side cover is closed.
ATTENTION! Only open the right side cover when the clean water
tank is empty!

Tank level indicator

The actual fluid level in the main tank can be observed on the tank level
indicator. The scale is displayed in US gallons (liters optional).
The level indicator is only intended as a guide for the tank level. The
accuracy for the level is within 5% when the tank is above 20% filled and
within 7.5% when the tank is below 20% filled.
Just behind the main tank scale, a level indicator for the flush tank is
attached to the frame. This is intended as a guide to see if flush tank is
full or empty. When the indicator ball is at the top, then the flush tank is
full.
