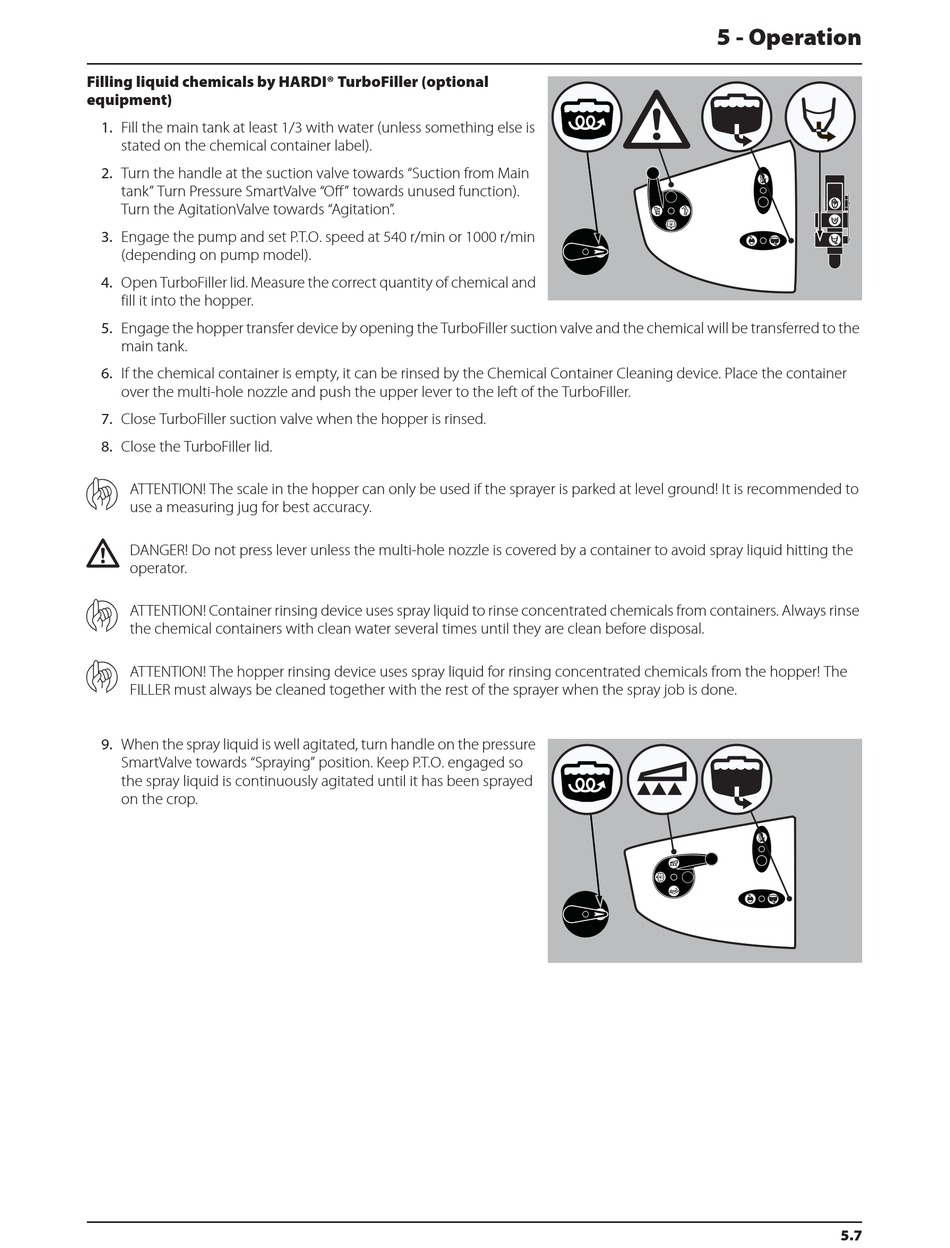

Filling liquid chemicals by HARDI® TurboFiller (optional
equipment)
1. Fill the main tank at least 1/3 with water (unless something else is
stated on the chemical container label).
2. Turn the handle at the suction valve towards "Suction from Main
tank" Turn Pressure SmartValve "Off" towards unused function).
Turn the AgitationValve towards "Agitation".
3. Engage the pump and set P.T.O. speed at 540 r/min or 1000 r/min
(depending on pump model).
4. Open TurboFiller lid. Measure the correct quantity of chemical and
fill it into the hopper.
5. Engage the hopper transfer device by opening the TurboFiller suction valve and the chemical will be transferred to the
main tank.
6. If the chemical container is empty, it can be rinsed by the Chemical Container Cleaning device. Place the container
over the multi-hole nozzle and push the upper lever to the left of the TurboFiller.
7. Close TurboFiller suction valve when the hopper is rinsed.
8. Close the TurboFiller lid.
ATTENTION! The scale in the hopper can only be used if the sprayer is parked at level ground! It is recommended to
use a measuring jug for best accuracy.
€
DANGER! Do not press lever unless the multi-hole nozzle is covered by a container to avoid spray liquid hitting the
operator.
ATTENTION! Container rinsing device uses spray liquid to rinse concentrated chemicals from containers. Always rinse
the chemical containers with clean water several times until they are clean before disposal.
ATTENTION! The hopper rinsing device uses spray liquid for rinsing concentrated chemicals from the hopper! The
FILLER must always be cleaned together with the rest of the sprayer when the spray job is done.
9. When the spray liquid is well agitated, turn handle on the pressure
SmartValve towards "Spraying" position. Keep P.T.O. engaged so
the spray liquid is continuously agitated until it has been sprayed
on the crop.
