3 - Description

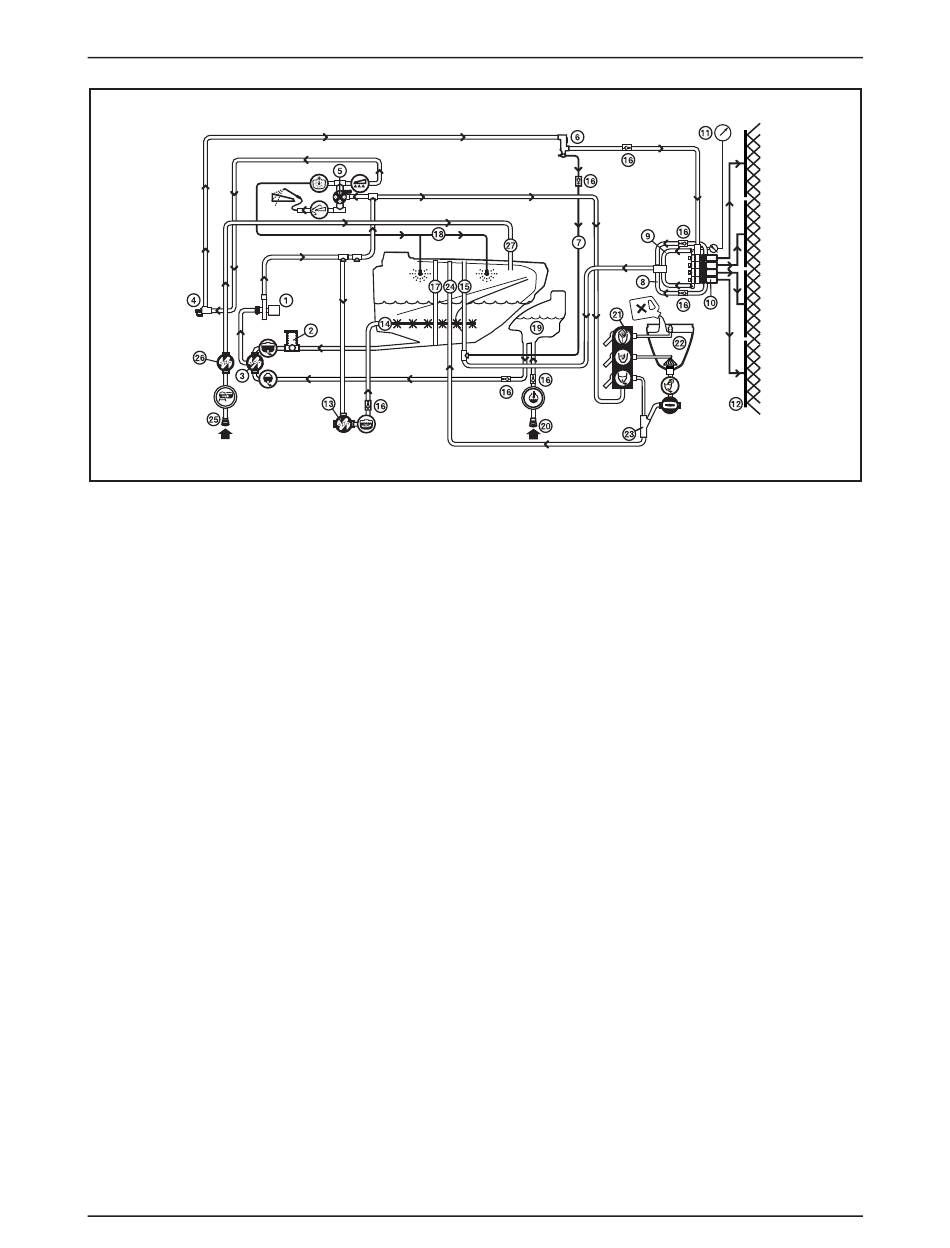

Diagram - Centrifugal Liquid system with optional extras
1. Pump
2. EasyClean filter
3. Suction Valve Main tank/Flush Tank
4. Pressure control valve
5. Pressure SmartValve
6. CycloneFilter
7. Return line for boost function
8. Return pressure drop
9. Return pressure equalization
10. Distribution valves
11. Pressure gauge
12. Spray boom
13. Agitation valve
14. Agitation tube
3.6
15. Tank tube for return lines (riser pipe)
16. One-way valve
17. Tank tube riser pipe
18. Tank rinsing nozzles
19. Flush Tank
20. Flush Tank Quick Fill coupler
21. Valve block TurboFiller
22. TurboFiller
23. Ejector for TurboFiller
24. Tank tube for Turbofiller
25. Main Tank Quick Fill coupler
26. Main Tank Quick Fill valve
27. Main Tank Quick Fill hose to tank inlet
