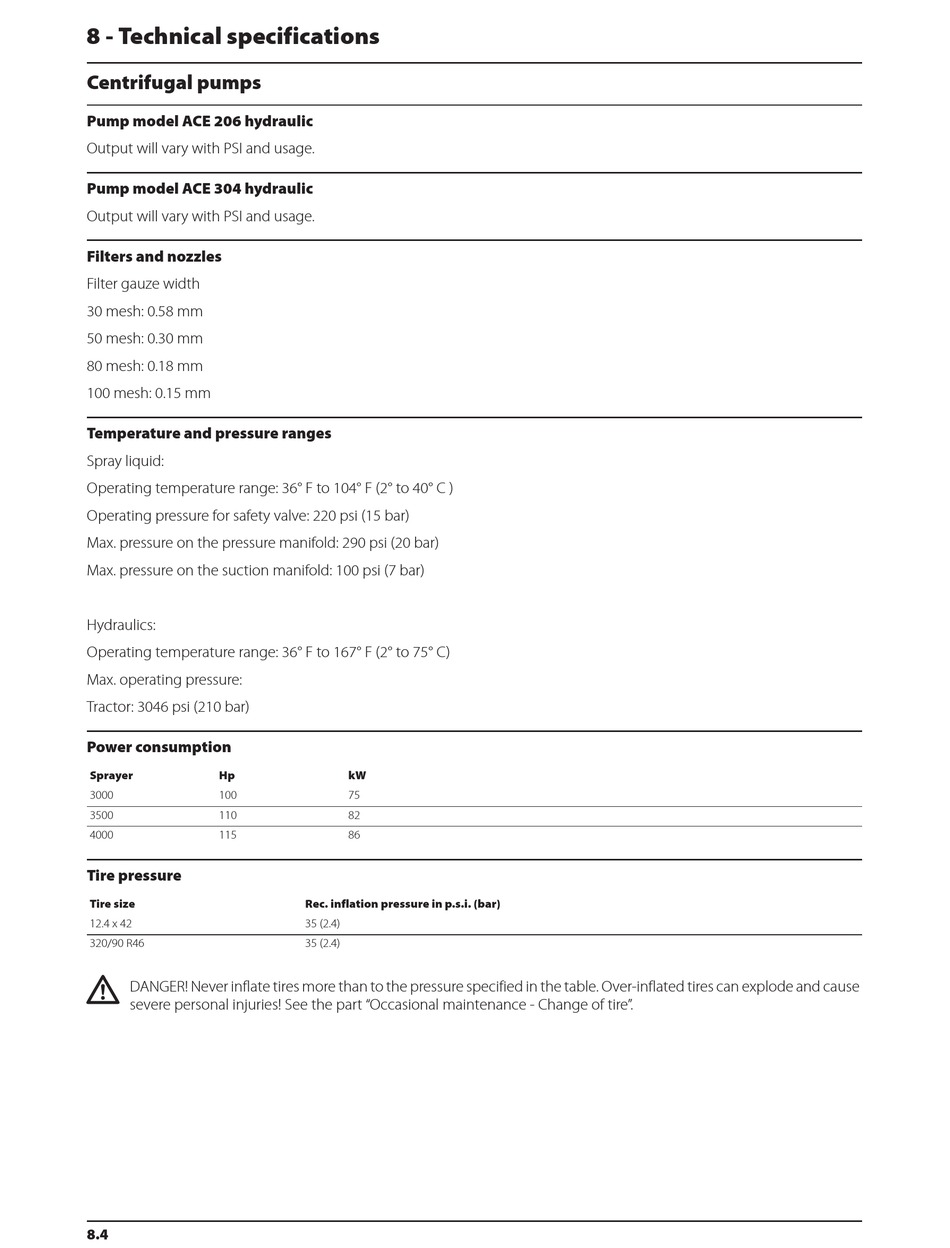

8 - Technical specifications

Centrifugal pumps

Pump model ACE 206 hydraulic

Output will vary with PSI and usage.

Pump model ACE 304 hydraulic

Output will vary with PSI and usage.

Filters and nozzles

Filter gauze width
30 mesh: 0.58 mm
50 mesh: 0.30 mm
80 mesh: 0.18 mm
100 mesh: 0.15 mm

Temperature and pressure ranges

Spray liquid:
Operating temperature range: 36° F to 104° F (2° to 40° C )
Operating pressure for safety valve: 220 psi (15 bar)
Max. pressure on the pressure manifold: 290 psi (20 bar)
Max. pressure on the suction manifold: 100 psi (7 bar)
Hydraulics:
Operating temperature range: 36° F to 167° F (2° to 75° C)
Max. operating pressure:
Tractor: 3046 psi (210 bar)

Power consumption

Sprayer Hp
3000 100
3500 110
4000 115

Tire pressure

Tire size
12.4 x 42
320/90 R46
€
DANGER! Never inflate tires more than to the pressure specified in the table. Over-inflated tires can explode and cause
severe personal injuries! See the part "Occasional maintenance - Change of tire".
8.4
kW
75
82
86
Rec. inflation pressure in p.s.i. (bar)
35 (2.4)
35 (2.4)
