4 - Sprayer setup

Electrical connections

Control units

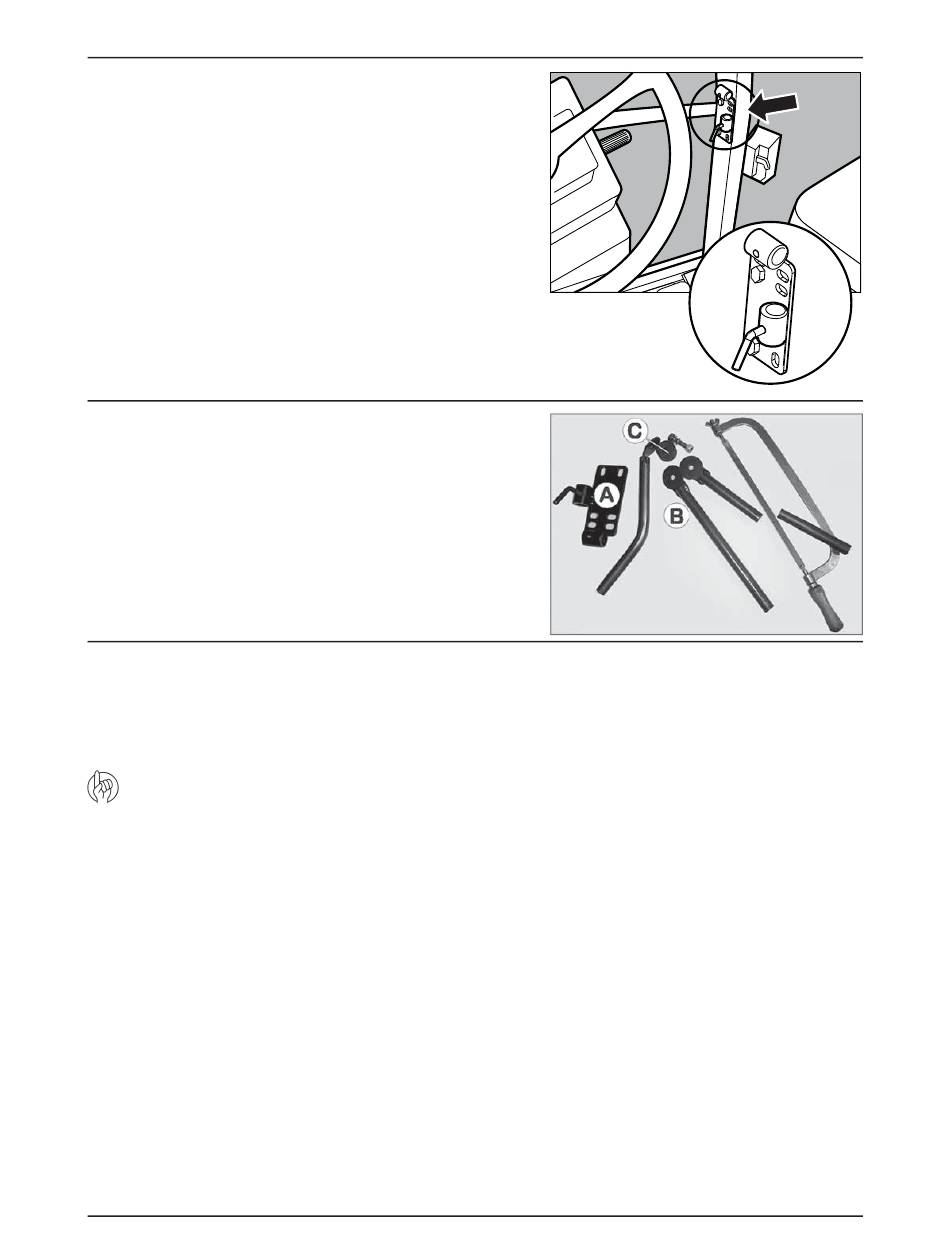

Find a suitable place in the tractor's cabin to secure the control units
from movement. Best recommended placement is to the right of the
driver seat. The supplied bracket will fit most tractors. Threaded
mounting holes may be hidden behind front corner cover.

Installation of control unit brackets

The supplied tractor pillar bracket (A) has a hole spacing of 3.9 in.
(100mm) and 4.7 in. (120mm). Check tractor instructions manual for
information regarding attachment points.
Three tubes (B) are supplied. One, two or all 3 may be used. They can be
bent and shortened. A spacer (C) is also supplied to allow further
attachment possibilities. Find the best solution for your tractor or
vehicle.
Tube (B) plate is staggered so all boxes will line up if correctly oriented.

Road traffic lights

Connect plug for rear lights to the tractor's 7-pin socket, and check function of rear lights, stop lights, side lights and
direction indicators on both sides before driving.
The wiring is in accordance with ANSI/ASAE S279.11. See section in "Technical specifications".
ATTENTION! Turn OFF all the work lights when driving on public roads!
4.8
