5 - Operation

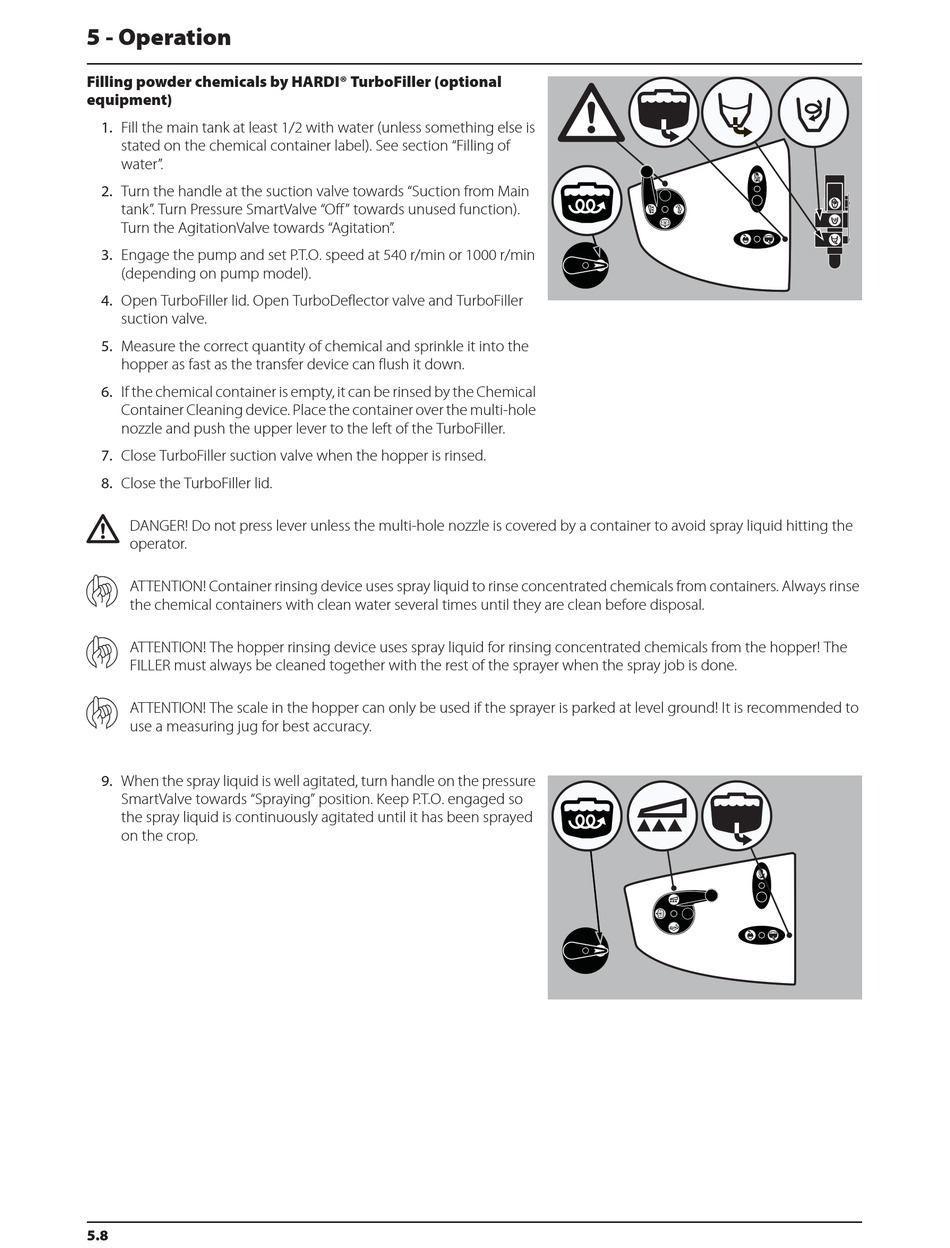

Filling powder chemicals by HARDI® TurboFiller (optional
equipment)
1. Fill the main tank at least 1/2 with water (unless something else is
stated on the chemical container label). See section "Filling of
water".
2. Turn the handle at the suction valve towards "Suction from Main
tank". Turn Pressure SmartValve "Off" towards unused function).
Turn the AgitationValve towards "Agitation".
3. Engage the pump and set P.T.O. speed at 540 r/min or 1000 r/min
(depending on pump model).
4. Open TurboFiller lid. Open TurboDeflector valve and TurboFiller
suction valve.
5. Measure the correct quantity of chemical and sprinkle it into the
hopper as fast as the transfer device can flush it down.
6. If the chemical container is empty, it can be rinsed by the Chemical
Container Cleaning device. Place the container over the multi-hole
nozzle and push the upper lever to the left of the TurboFiller.
7. Close TurboFiller suction valve when the hopper is rinsed.
8. Close the TurboFiller lid.
€
DANGER! Do not press lever unless the multi-hole nozzle is covered by a container to avoid spray liquid hitting the
operator.
ATTENTION! Container rinsing device uses spray liquid to rinse concentrated chemicals from containers. Always rinse
the chemical containers with clean water several times until they are clean before disposal.
ATTENTION! The hopper rinsing device uses spray liquid for rinsing concentrated chemicals from the hopper! The
FILLER must always be cleaned together with the rest of the sprayer when the spray job is done.
ATTENTION! The scale in the hopper can only be used if the sprayer is parked at level ground! It is recommended to
use a measuring jug for best accuracy.
9. When the spray liquid is well agitated, turn handle on the pressure
SmartValve towards "Spraying" position. Keep P.T.O. engaged so
the spray liquid is continuously agitated until it has been sprayed
on the crop.
5.8
