Quick reference - Cleaning

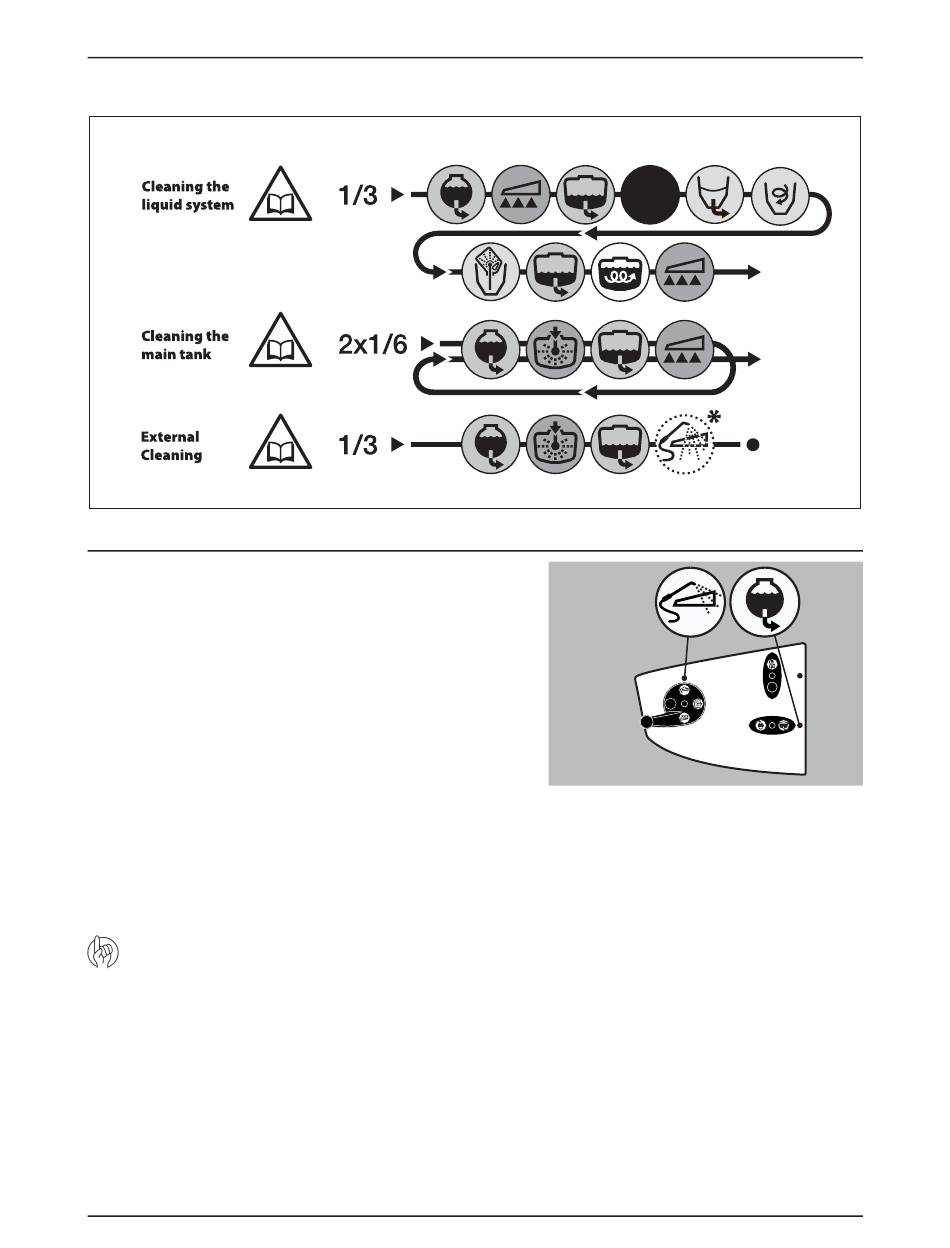

In the following diagram, handle positions for different options are described.
*designates an optional function.
External cleaning - Use of External Cleaning Device (optional
equipment)
Use the External Cleaning Device to wash everything on the outside of
the sprayer. This prevents contamination of storage place, etc. and helps
the sprayer last longer.
When the External Cleaning Device is going to be used, swing out the
hose reel on sprayer's right side just in front of the wheel. Cleaning gun
is located in the holder at the frame.
1. Un-roll the hose from the reel.
2. Engage pump at approximately 300 r.p.m. or 560 r.p.m. (depending
on pump model).
3. Turn suction Valve towards "Suction from Flush tank" and pressure
SmartValve towards "External cleaning device" and clean sprayer.
4. After cleaning, close the pressure SmartValve again.
5. Roll the hose onto the reel again and swing reel to storage
position.
ATTENTION! If the safety valve is activated, then lower P.T.O.
revolutions to avoid rinsing water being lost into main tank.
