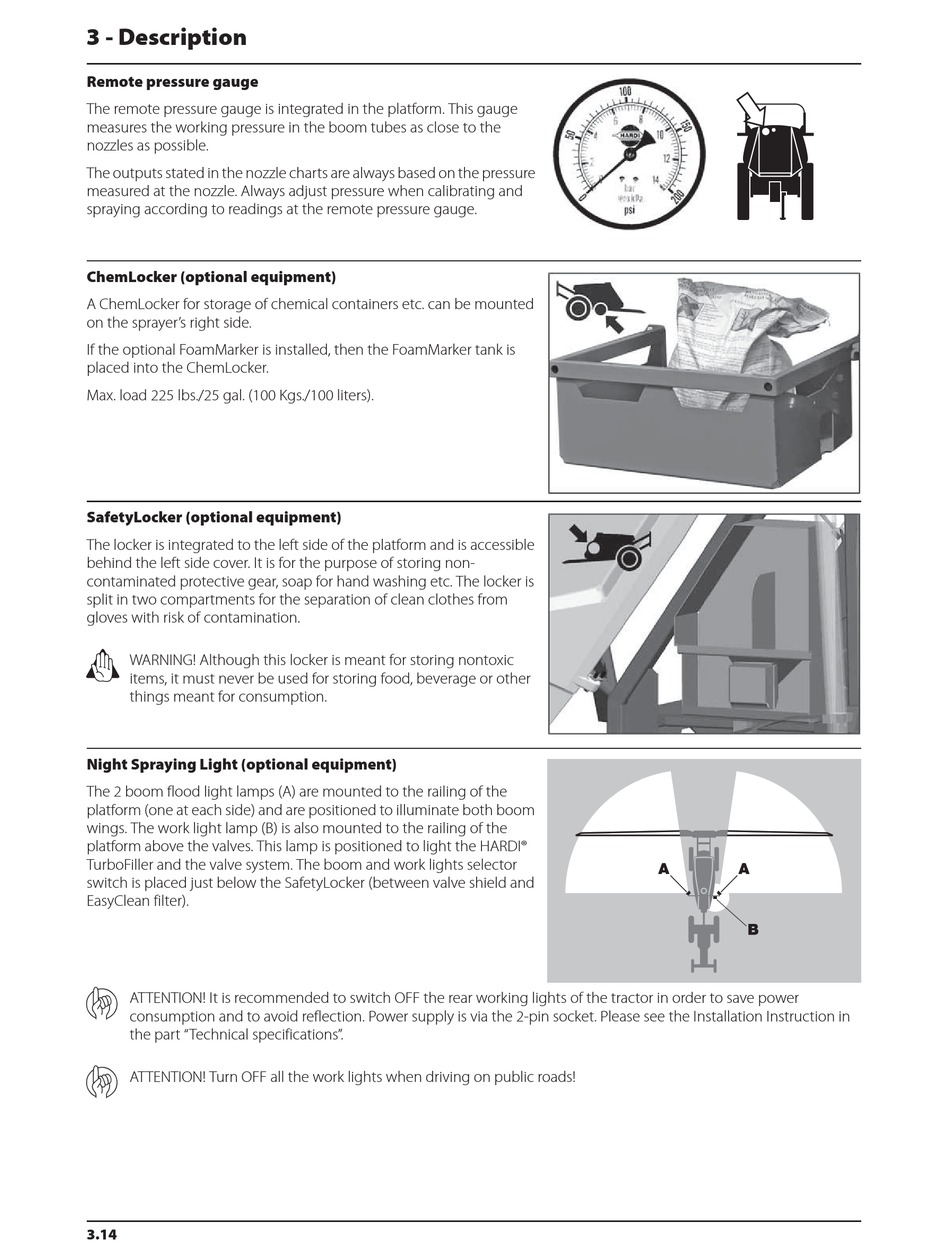

3 - Description

Remote pressure gauge

The remote pressure gauge is integrated in the platform. This gauge
measures the working pressure in the boom tubes as close to the
nozzles as possible.
The outputs stated in the nozzle charts are always based on the pressure
measured at the nozzle. Always adjust pressure when calibrating and
spraying according to readings at the remote pressure gauge.

ChemLocker (optional equipment)

A ChemLocker for storage of chemical containers etc. can be mounted
on the sprayer's right side.
If the optional FoamMarker is installed, then the FoamMarker tank is
placed into the ChemLocker.
Max. load 225 lbs./25 gal. (100 Kgs./100 liters).

SafetyLocker (optional equipment)

The locker is integrated to the left side of the platform and is accessible
behind the left side cover. It is for the purpose of storing non-
contaminated protective gear, soap for hand washing etc. The locker is
split in two compartments for the separation of clean clothes from
gloves with risk of contamination.
±
WARNING! Although this locker is meant for storing nontoxic
items, it must never be used for storing food, beverage or other
things meant for consumption.

Night Spraying Light (optional equipment)

The 2 boom flood light lamps (A) are mounted to the railing of the
platform (one at each side) and are positioned to illuminate both boom
wings. The work light lamp (B) is also mounted to the railing of the
platform above the valves. This lamp is positioned to light the HARDI®
TurboFiller and the valve system. The boom and work lights selector
switch is placed just below the SafetyLocker (between valve shield and
EasyClean filter).
ATTENTION! It is recommended to switch OFF the rear working lights of the tractor in order to save power
consumption and to avoid reflection. Power supply is via the 2-pin socket. Please see the Installation Instruction in
the part "Technical specifications".
ATTENTION! Turn OFF all the work lights when driving on public roads!
3.14
