Equipment

Platform

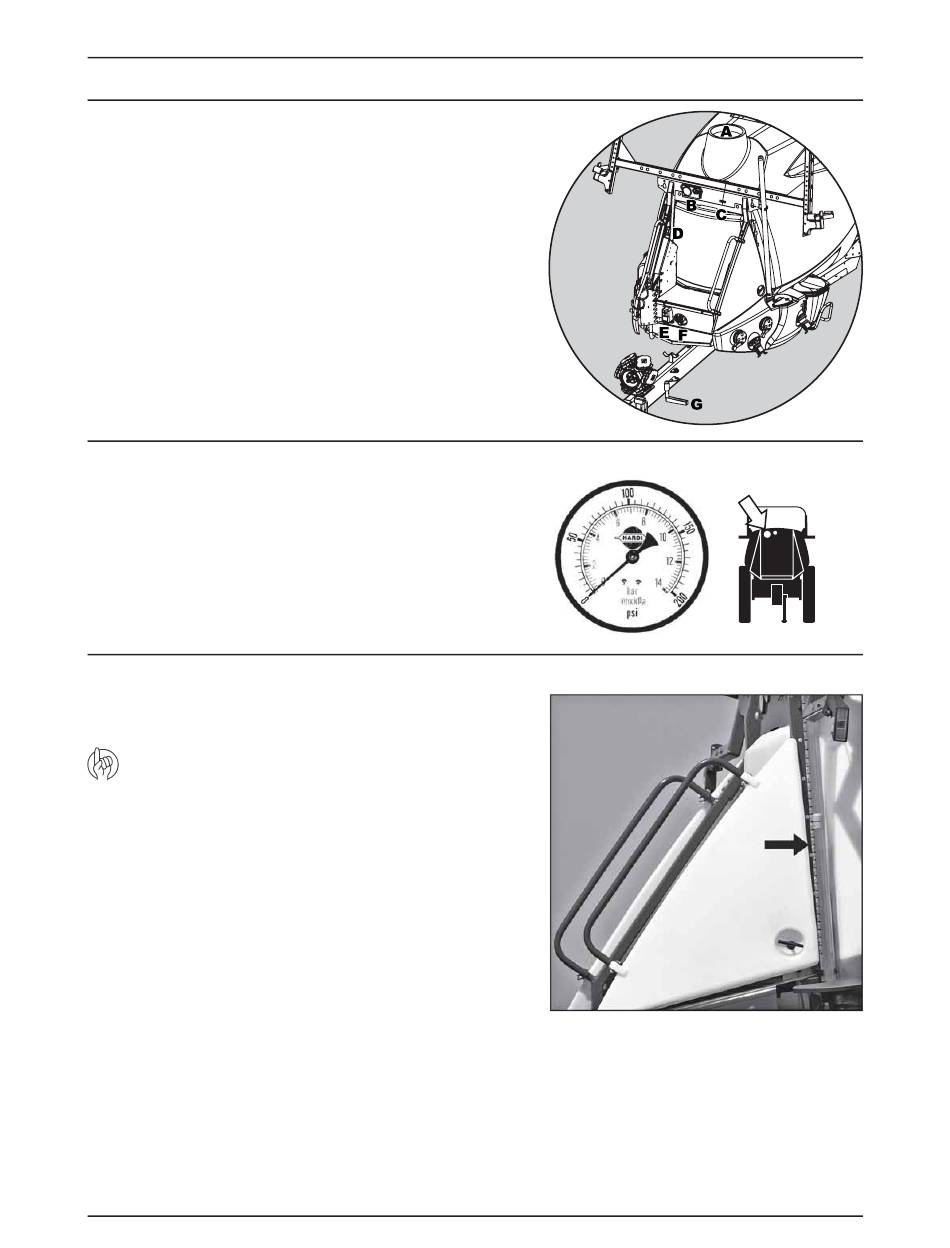

To get access to the platform, lift and swing the step (G) on the drawbar
out until it clicks into locked out-position. To retract step, then lift and
swing step to retracted locked in-position.
The pressure regulation valve (E) and the Agitation valve (F) are situated
in front of the platform floor. The platform gives access to the clean
water tank lid (D), the main tank lid (A). Also the main tank drain valve (C)
can be operated from the platform. The pressure gauge (B) and
EasyClean clogging indicator (B) are visible at the top of the platform.
By removing the platform floor, the valve components are accessible.

Nozzle Pressure Gauge

The remote pressure gauge is integrated in the platform. This gauge
measures the working pressure at the distribution manifold on the
boom center section.

Tank Level Indicators

The actual fluid level in the main tank can be observed on the tank level
indicator. The scale is displayed in US gallons (liters optional).
ATTENTION! The level indicator is only intended as a guide for the
tank level.
The accuracy for the level is within 5% when the tank is above
20% filled and within 7.5% when the tank is below 20% filled.
Just behind the main tank scale, a level for the rinse tank is attached to
the frame. This is intended as a guide to see if the rinse tank is full or
empty. If the indicator ball is at the top, then the rinse tank is full.
