3 - Description

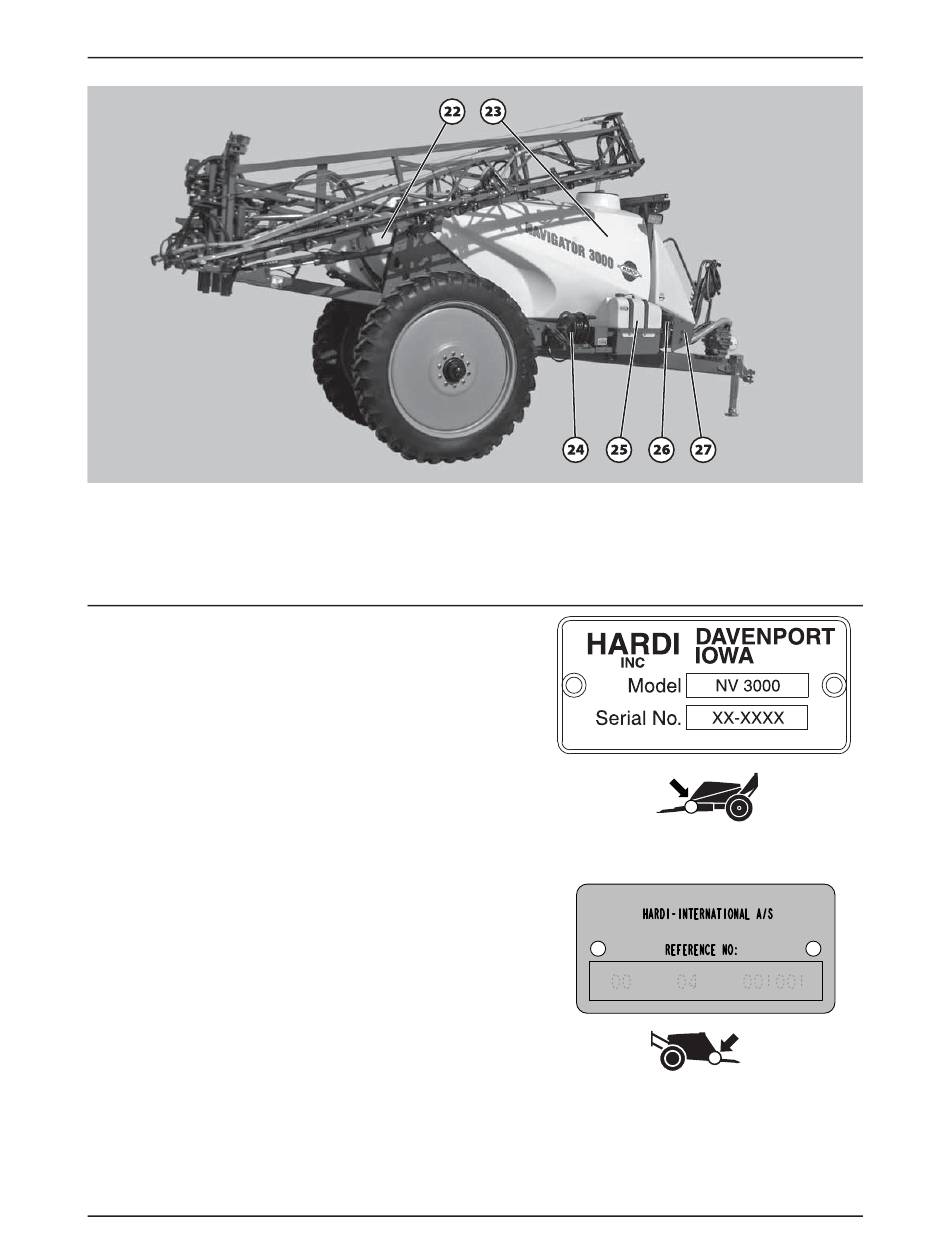

View
22. Flush tank
23. Main tank
24. Hose reel for External Cleaning Device
Identification plates
An identification plate fitted on the frame indicates producer name,
model and serial number.
Frame, boom center frame and other main steel components have
identification plates indicating type and part number. (not illustrated)
REFERENCE NO: is the main reference number of the complete machine
3.2
25. ChemLocker with FoamMarker tank
26. CycloneFilter
27. Support jack storing position
